i-Fix Product portfolio
i-Fix Dental Implant Systems and Prosthetics
The full i-Fix range — bone-level, progressive-thread, one-piece compressive and zygomatic implants in ASTM F136 ELI Grade 5 titanium, on the NP 2.25 A/F or RP 2.50 A/F platform. Every series has its own catalog size matrix, surgical kit and Instructions for Use.

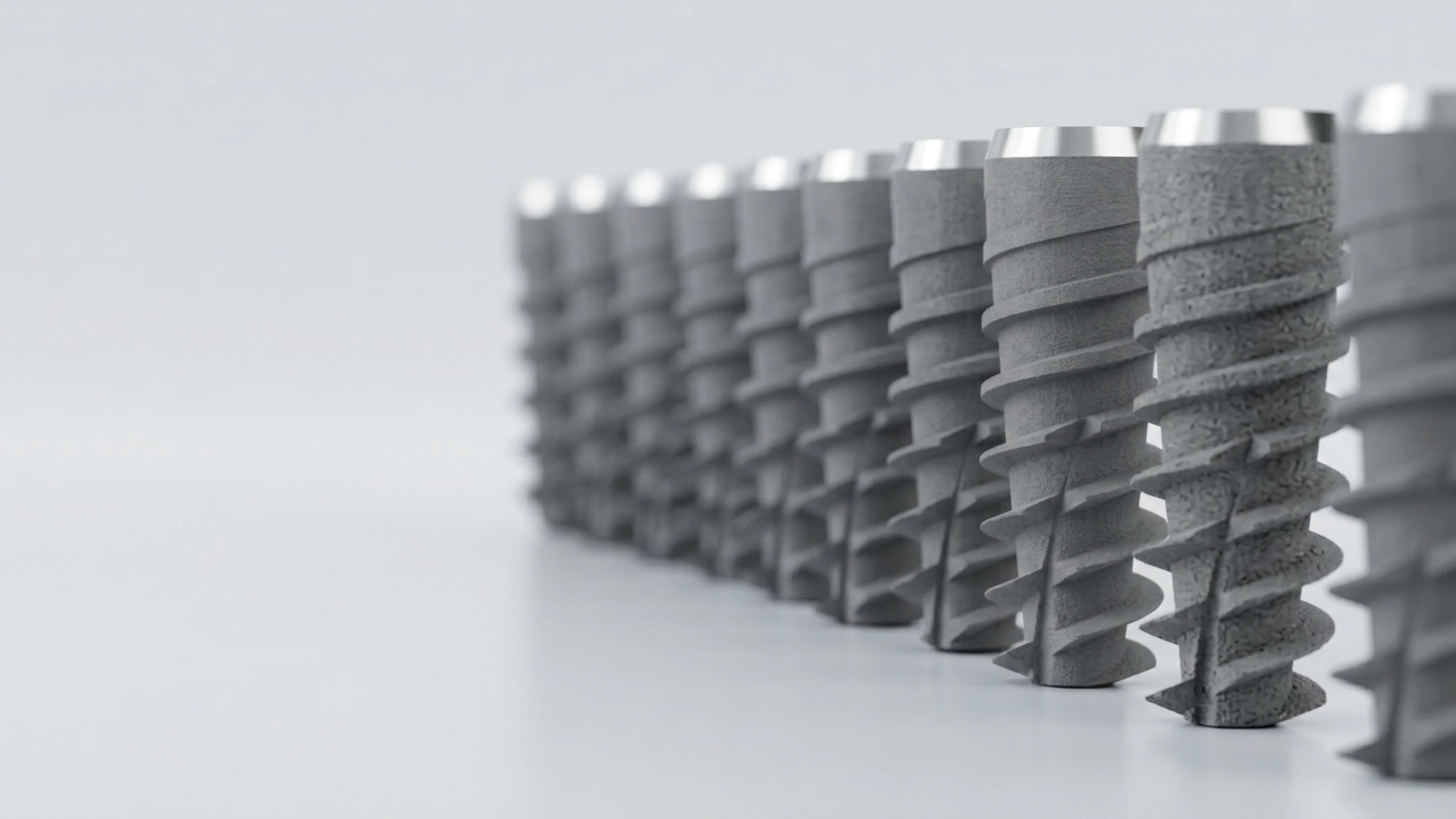

01 Our products
Explore our implant systems.
From bone-level to zygomatic and patient-specific systems — built for a reliable, long-lasting fit, case after case.
02 Dental implantology
Designed and made in-house.
Implants, prosthetic components and the instrumentation that places them, developed and manufactured within one facility rather than assembled from bought-in parts.
- In-house design and development of implants and prosthetic components
- Collaborations with leading institutes and clinicians
- Two-piece and one-piece implant systems across several connection platforms
- Zygomatic implants with their own multi-unit components and surgical kits
- Swiss CNC machining for implants and attachments
- Proprietary surface treatment equipment
- Multi-stage cleaning lines
- In-house packaging and sterile barrier assembly
03 Manufacturing
The facility behind it.
A manufacturing facility and quality management system built to hold one specification across every batch, whatever the volume.
- Dedicated clean rooms for implant manufacture and assembly
- Multi-stage cleaning before packing
- Packing designed to hold the sterile barrier over the shelf life
- EN ISO 13485:2016 certified quality management system
- Compliant with the Fifth Schedule of India's Medical Device Rules, 2017
- CE marked, with the certificates published in full on the downloads page
04 Core design
Features.
Connection, thread design, taper and surface — engineered together for reliable, long-lasting integration.
Implant internal connection.
- NP connection — internal hex Ø2.25 mm, 12° Morse taper, M1.6 screw (IP, AK)
- RP connection — internal hex Ø2.50 mm, 11° Morse taper, M2.0 screw (SP / S-Fix Pro)
- IP connection — internal hex Ø2.45 mm A/F, 45° Morse taper, M1.8 screw (IP+)
- ZE zygomatic — M1.6 internal connection with external hex 2.25 A/F
- One prosthetic platform across every diameter within a connection
Thread designs developed for different implant applications.
- A square-thread profile option reduces shear stress at the crestal bone level
- Backtapered coronal region preserves bone volume at the platform
- Twin cutting flutes ease insertion and bone transfer
- Twin apical cutting blades for minimally prepared sites
An expanding tapered body across the implant range.
- Self-tapping design
- Adjustable implant orientation during insertion
- A progressive high-angle (HA) thread and concave apex option refines stability in softer bone
- Every diameter is placed using its matched i-Fix surgical kit
Nano Bio-Activated surface developed in Sweden.
- Applied across the current i-Fix implant range
- Refer to the current IFU for complete surface specifications
03 Catalog size matrix
Sizes & article codes.
Ø 3.5–6.0 mm bodies in 7.0–62.5 mm lengths, 123 article codes across 7 series.
Bone-level implant system

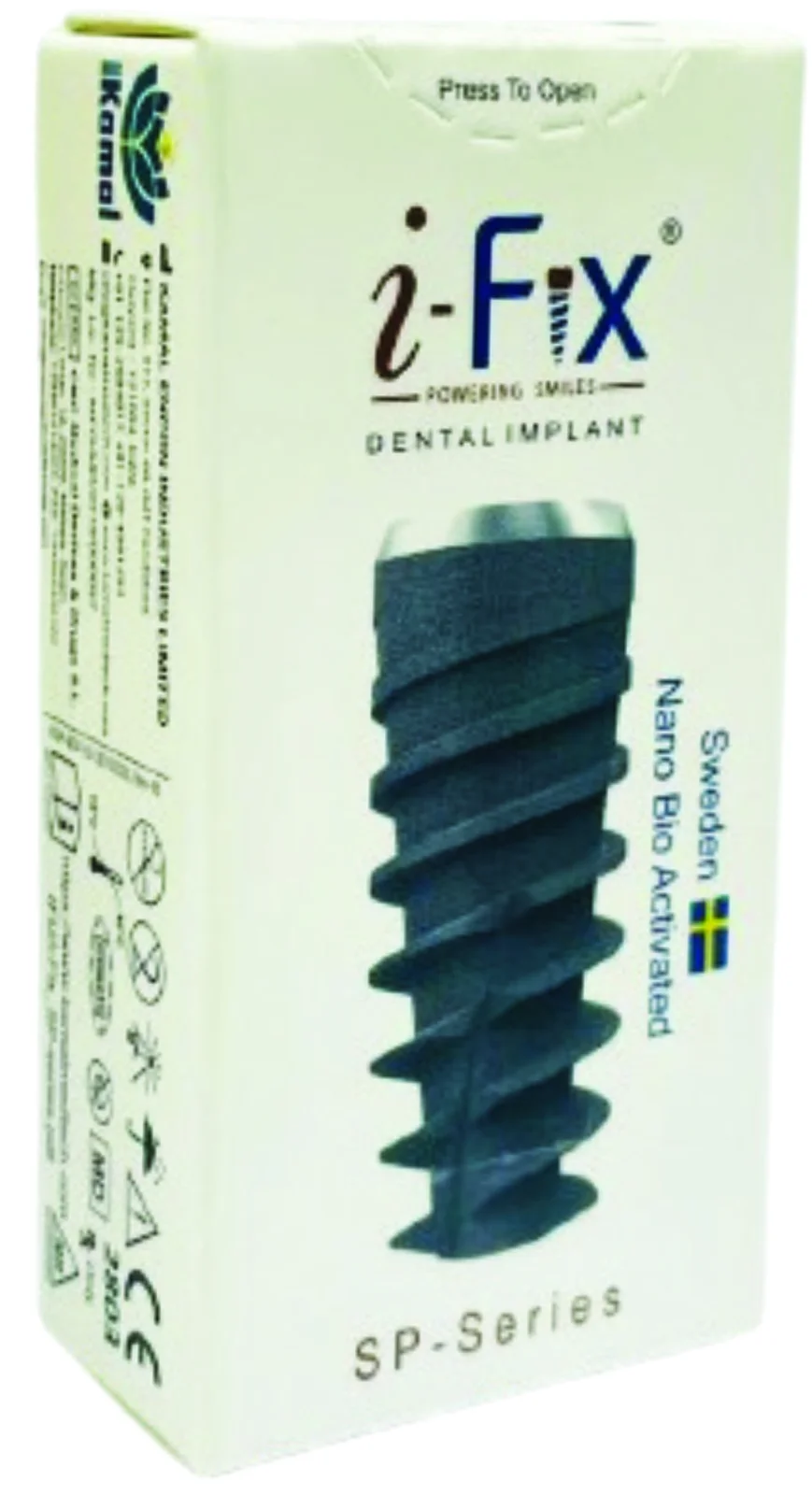

SP Series (S-Fix Pro)
Diameter options5
Length range7.0–14 mm
Article codes24
Ø (mm) 7.08.0101214
Ø 3.6 —
Ø 4.0
Ø 4.5
Ø 5.0
Ø 6.0
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). Select a code to copy it.
Bone-level implant system

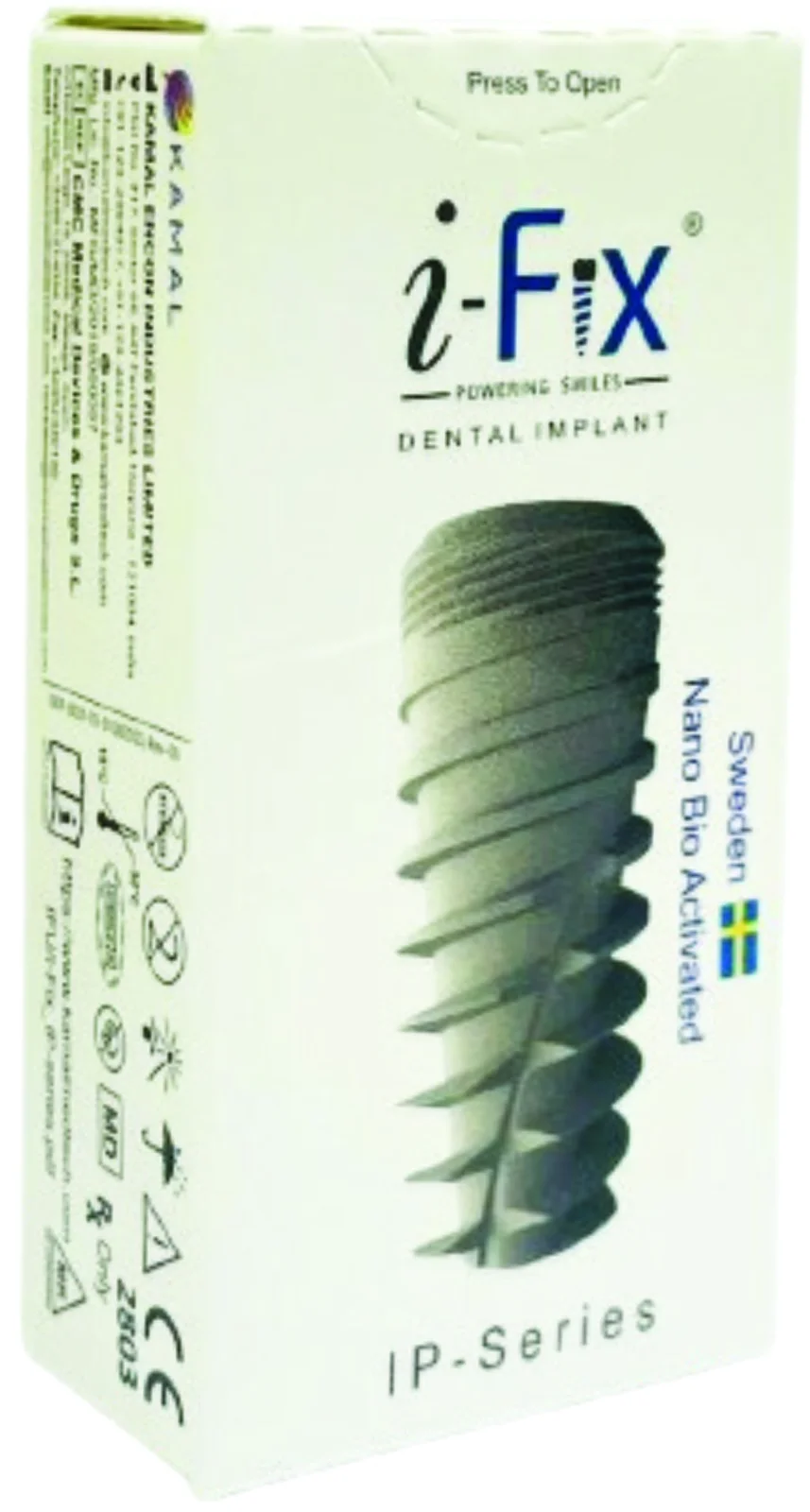

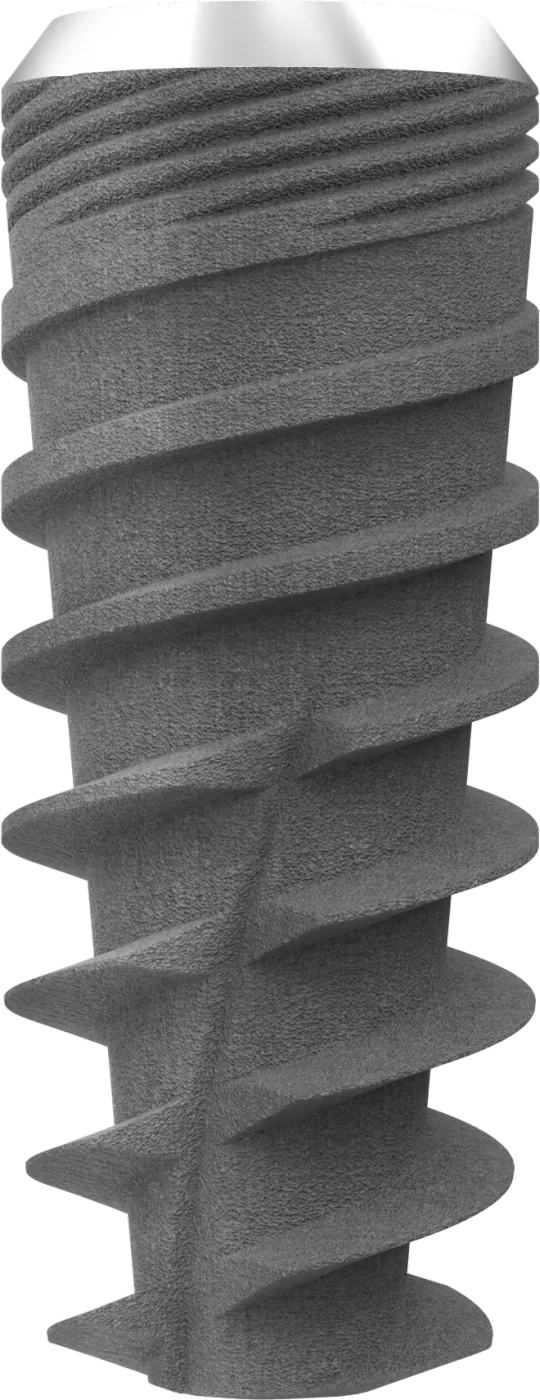

IP Series
Also known as i-Fix Pro
Diameter options5
Length range7.5–20 mm
Article codes32
Ø (mm) 7.58.51011.513151820
Ø 3.5 —
Ø 4.0
Ø 4.5 ——
Ø 5.0 ——
Ø 5.5 ———
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). Select a code to copy it.
Progressive thread implant system

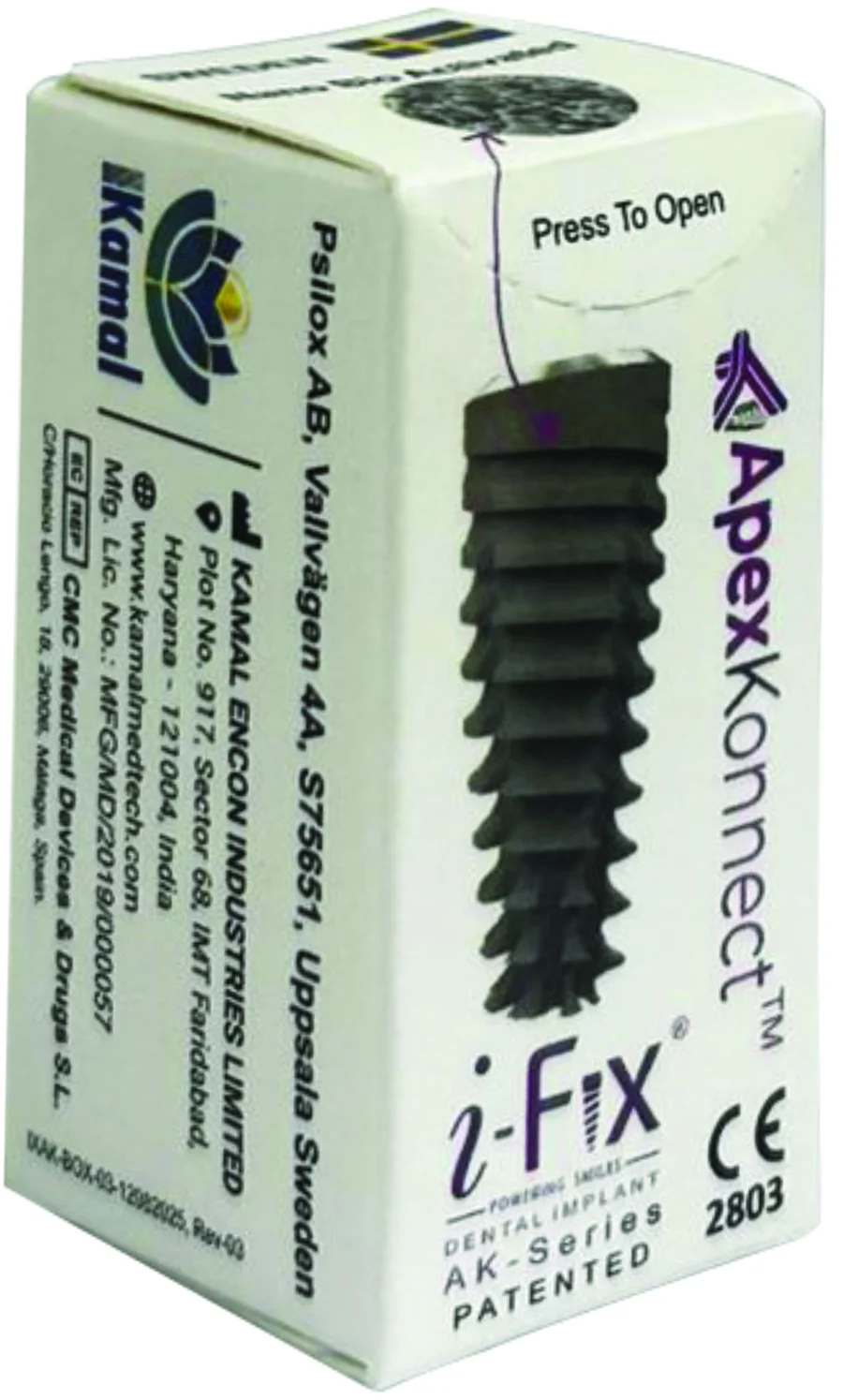

AK Series
Also known as Apex Konnect.webp)
Diameter options3
Length range7.0–13 mm
Article codes11
Ø (mm) 7.09.01113
Ø 3.5 —
Ø 4.2
Ø 5.0
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). Select a code to copy it.

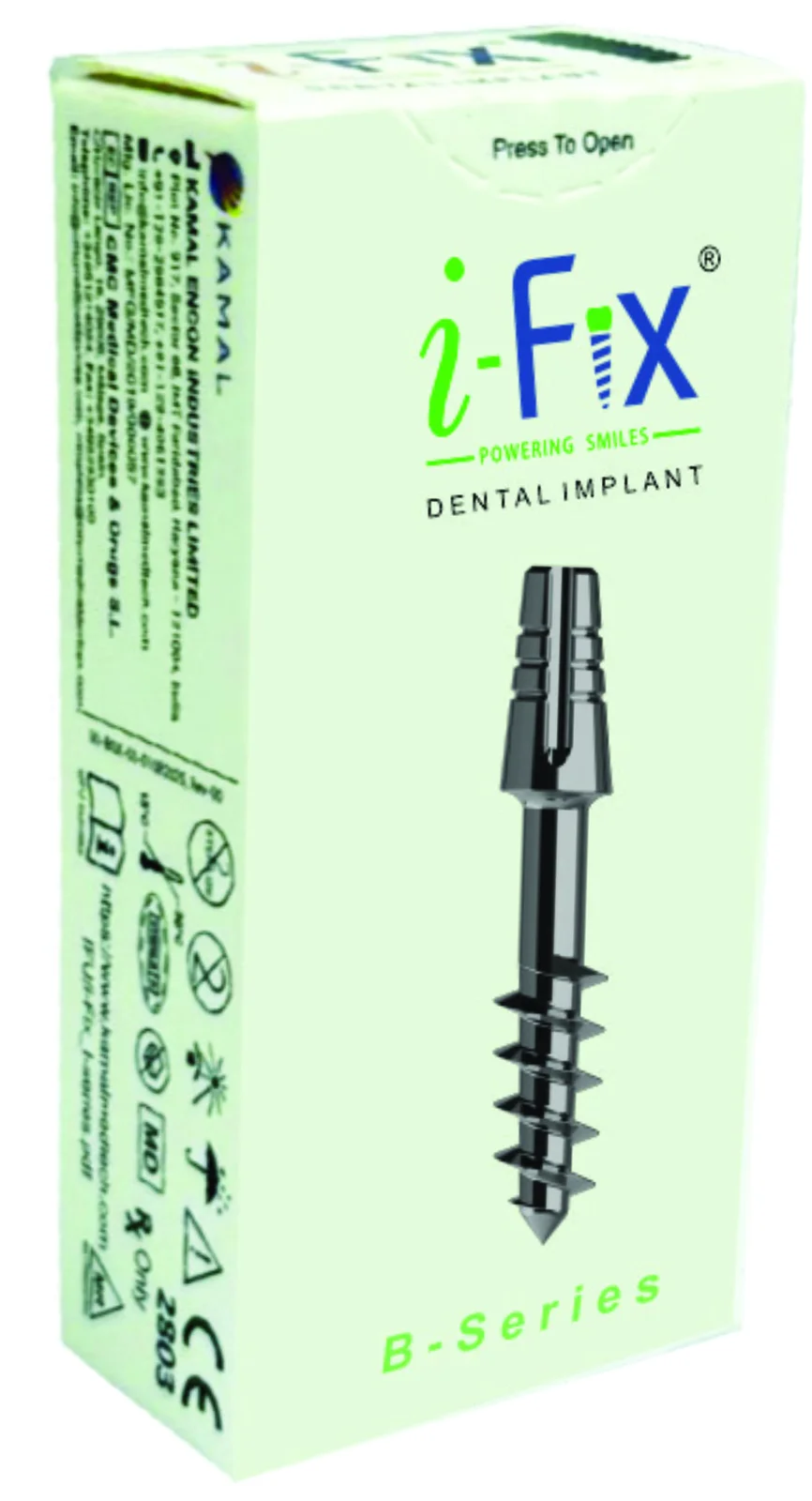

Bicortical implant
B Series
Also known as i-Fix One
Diameter options1
Length range8–26 mm
Article codes8
Ø (mm) 810121417202326
Ø 3.6
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). Select a code to copy it.

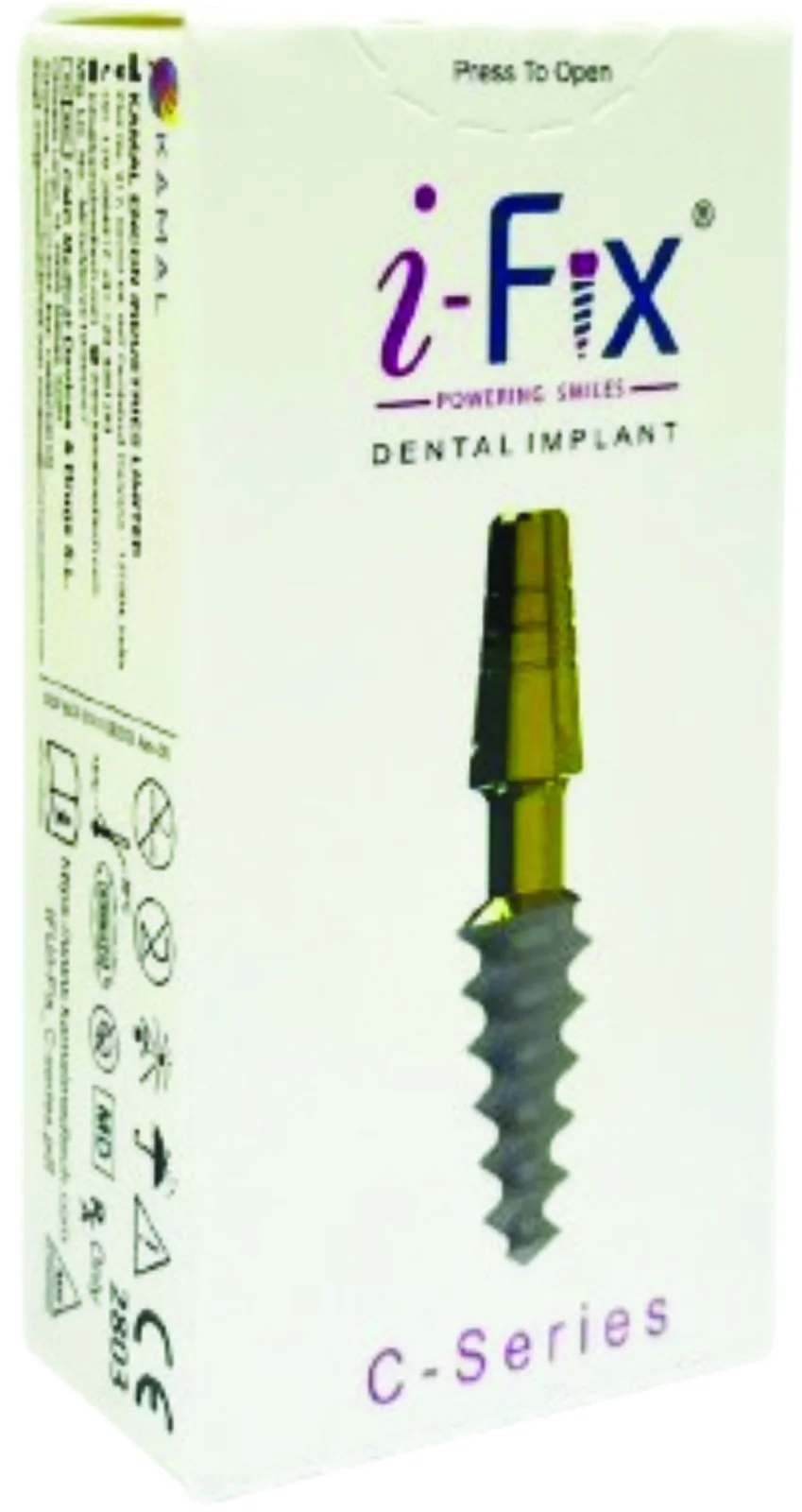

Compressive implant
C Series
Also known as i-Fix C-1
Diameter options5
Length range8–20 mm
Article codes27
Ø (mm) 8101214161820
Ø 3.5
Ø 4.0
Ø 4.5 ——
Ø 5.0 ———
Ø 5.5 ———
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). Select a code to copy it.
Zygomatic implant system

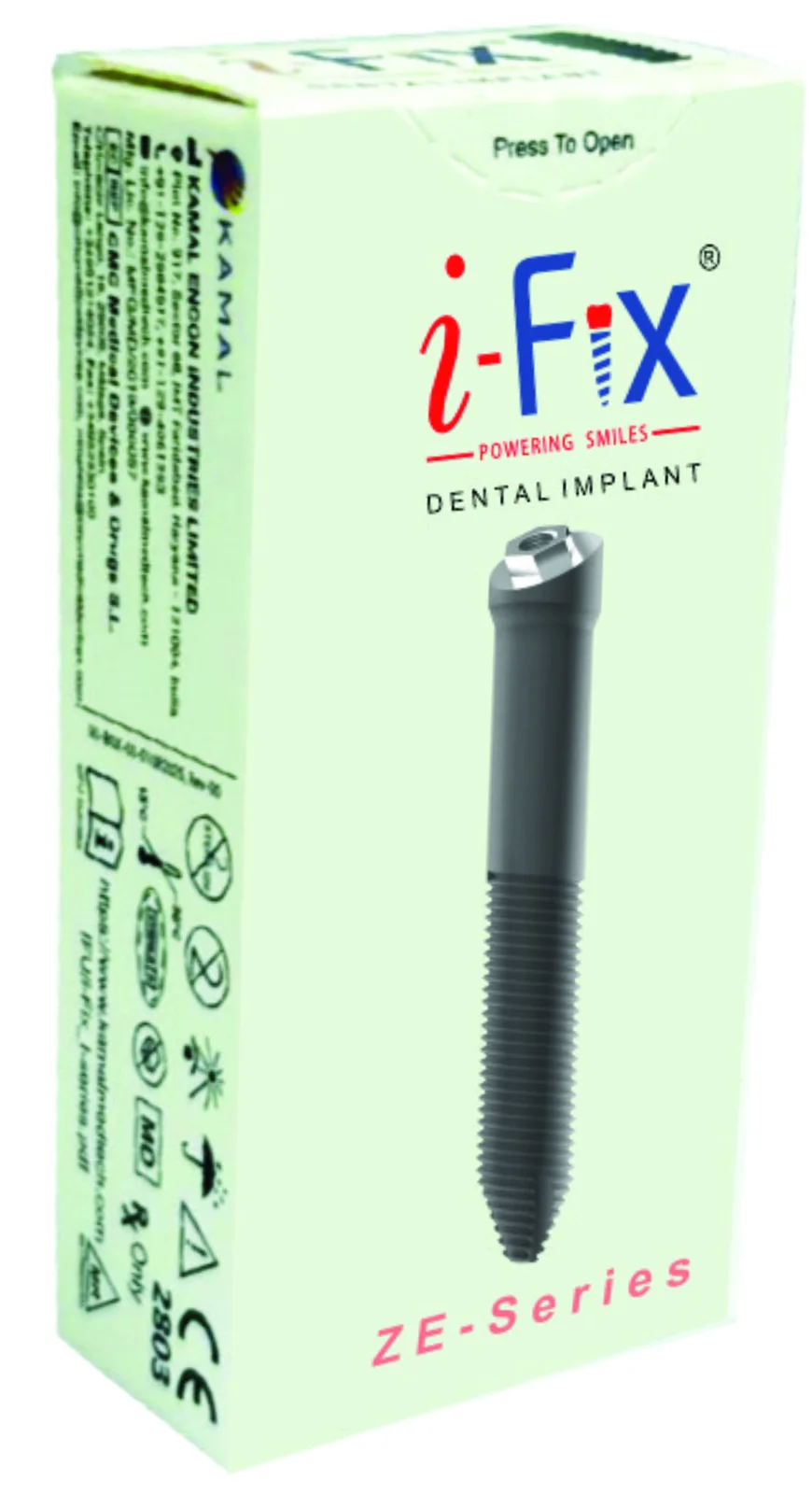

ZE Series
Also known as i-Fix Zygon
Diameter options1
Length range30–62.5 mm
Article codes12
Ø (mm) 30354042.54547.55052.55557.56062.5
Ø 4.6
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). Select a code to copy it.
Progressive thread implant system
AK* Series
Diameter options3
Length range9.00–13.00 mm
Article codes9
Ø (mm) 9.0011.0013.00
Ø 3.60
Ø 4.20
Ø 5.00
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). Select a code to copy it.
Why i-Fix
ASTM F136 ELI Grade 5 titanium, every series.
Certified under ISO 13485:2016 to 01/09/2027, machined and packed in a 50,000 sq ft facility in India — across all 7 series with a published size matrix.
860 MPa Minimum Tensile Strength
Tensile strength published for the Grade V ELI alloy, with 10% elongation and ≤0.13% oxygen content.
Nano Bio-Activated Surface
Developed in Sweden, on IP, SP, AK and ZE. B ships with a polished surface, C with treated threads.
NP and RP Connection Platforms
Internal hex at 12° Morse taper with an M1.6 screw, and at 11° with an M2.0 screw. One platform per series, every diameter.
6 Instructions for Use
One per implant series, all carrying document IFU-03-050320 Rev-01, linked from each product page.
04 Surgical kits
Surgical kits.
5 trays, reproduced from the current product catalog. The one-piece B and C series share a single tray; every other series has its own.
NP connection
IP Series surgical kit
Ø 3.5–5.5 mm bodies, 7.5–20 mm lengths.
Tap to enlarge RP connection

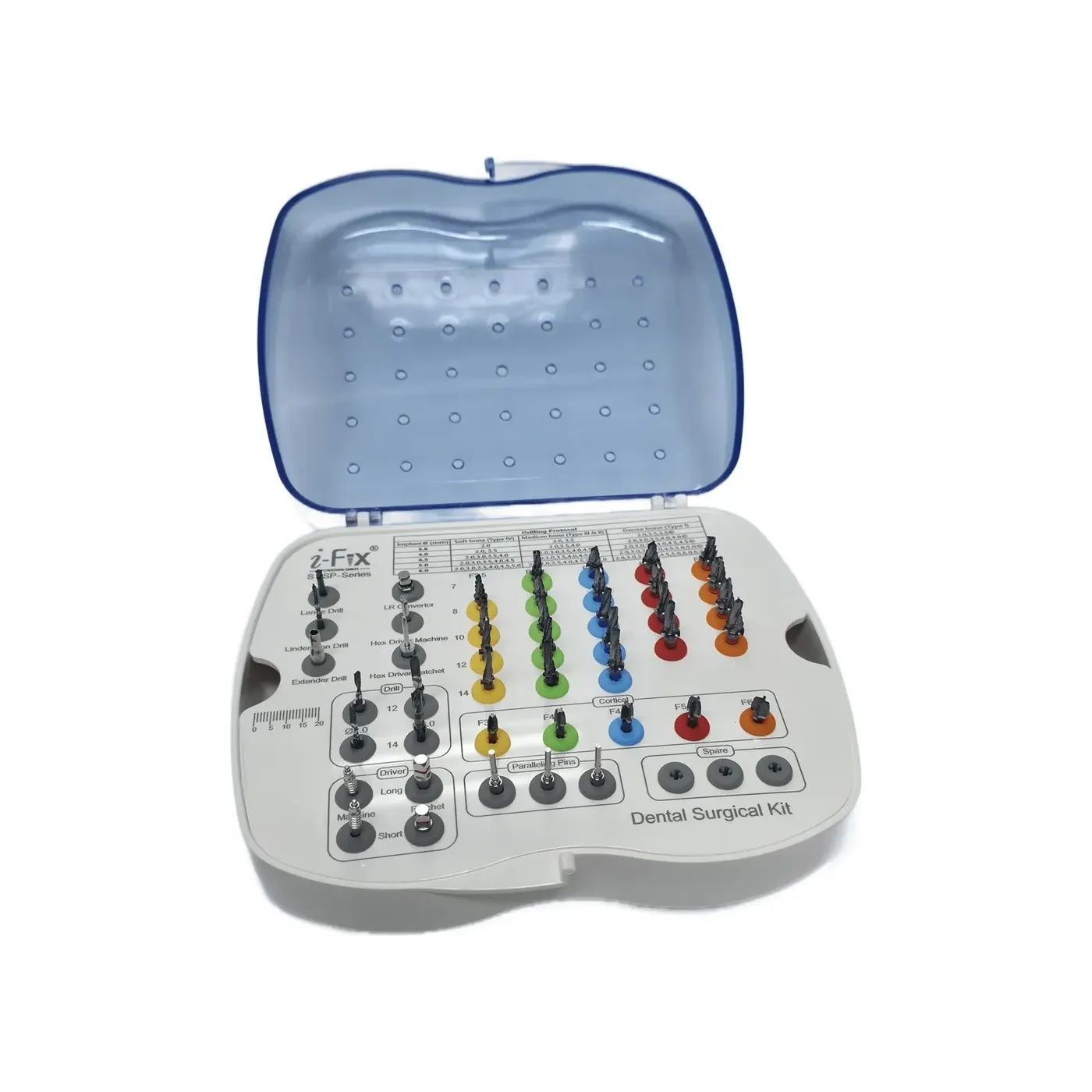

SP Series surgical kit
Ø 3.6–6.0 mm bodies, 7–14 mm lengths.
Tap to enlarge NP connection

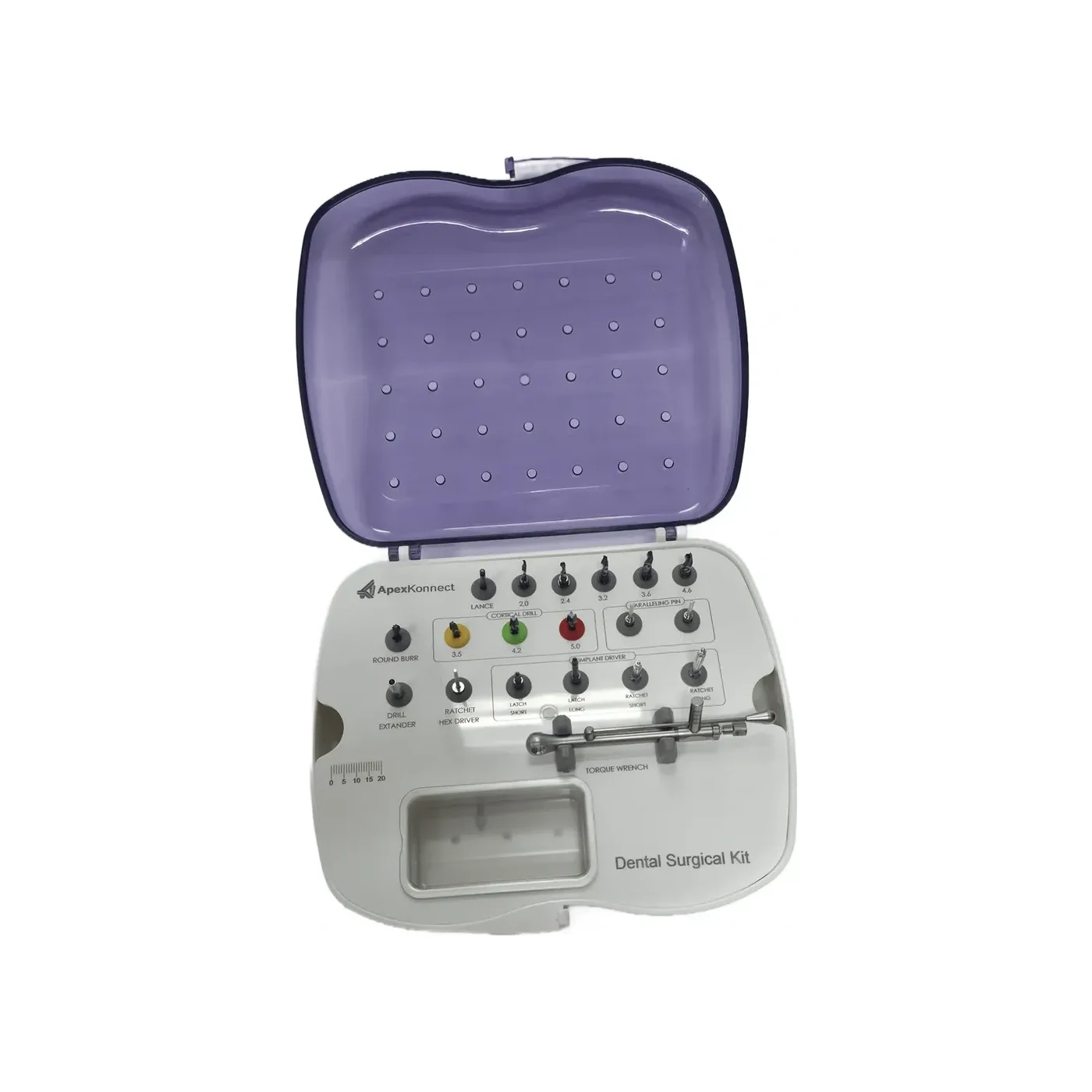

AK Series surgical kit
Ø 3.5–5.0 mm bodies, 7–13 mm lengths.
Tap to enlarge B & C Series surgical kit
B — Ø 3.6 mm bicortical, 8–26 mm. C — Ø 3.5–5.5 mm compressive, 8–20 mm.
Tap to enlarge ZE Series surgical kit
Ø 4.6 mm bodies, 30–62.5 mm lengths.
Tap to enlarge Clinical noticeRefer to the applicable product catalog and IFU for the complete drilling protocol, precautions and instrument instructions. Final treatment planning remains the responsibility of the qualified clinician.
06 Frequently asked
Sizes, kits and component sets.
Bone-level IP (i-Fix Pro) and SP (S-Fix Pro), progressive-thread AK (Apex Konnect), one-piece B (i-Fix One) and C (i-Fix C-1), and zygomatic ZE (i-Fix Zygon) — all in ASTM F136 ELI Grade 5 titanium alloy. IP+ and AK* are upcoming. PSI patient-specific implants and the Crown digital restorative laboratory complete the portfolio.
The one-piece B (i-Fix One) and C (i-Fix C-1) series both list immediate loading among their catalog features — B for bicortical engagement and extraction sockets, C for compressive placement in narrow ridges. Each series page carries its own indications and surgical kit.
The size matrix on each series' product page lists every diameter × length combination with its catalog article code — select a code to copy it.
Open any product model in the grid above — the surgical kit, drilling protocol, catalog and Instructions for Use are all in its Kit & Documentation section.
Yes. IP and AK share one component set on the NP 2.25 A/F connection, SP (S-Fix Pro) has its own K-prefixed set on the RP 2.50 A/F connection, ZE has a dedicated zygomatic set, and B and C use one-piece prosthetics — each product page lists every component with its article code.
Upcoming expansions of the IP and AK lines. Their product pages are live with placeholders — full specifications, sizes, images and logos are being finalised by the product team.
Compare connection, material, surface and size range across every series →
Catalogs and Instructions for Use
Catalog PDFs carry their document number and revision on the print. Every implant series has its own Instructions for Use (IFU-03-050320 Rev-01).
