NP connection — internal hex Ø2.25mm implant–abutment connection, 12° Morse taper, M1.6 screw
Nano Bio Activated surface ASTM F136 ELI Grade 5
i-Fix Bone-level implant system
IP Series
Also known as i-Fix Pro. An expanding-taper, two-start thread implant with a backtapered coronal region, twin cutting flutes and twin apical cutting blades — the longer, larger-diameter member of the i-Fix bone-level family, also known as i-Fix Pro.
NP connectionConnection platform
Ø 3.5–5.5 mmImplant body diameter
7.5–20 mmImplant lengths
32Catalog article codes
Catalog specification: an NP connection built on an M1.6 internal connection with a 2.25 mm A/F hex and a 12° Morse taper, machined from ASTM F136 ELI Grade 5 titanium and finished with the Sweden-developed Nano Bio Activated surface. Implants are supplied with a cover screw.
ConnectionNP connection
MaterialASTM F136 ELI Grade 5 titanium alloy
SurfaceNano Bio Activated surface (Sweden)
Also known as i-Fix Pro
02 Catalog size matrix
Sizes and Article Codes
32 manufactured combinations, each with its own article code. Rows are diameters, columns are lengths in mm — select a size to order it.
How to order: tap the code of the diameter and length you need, then choose Add to cart. Sizes already in your cart are marked ✓.
| Ø (mm) | 7.5 | 8.5 | 10 | 11.5 | 13 | 15 | 18 | 20 |
|---|---|---|---|---|---|---|---|---|
| Ø 3.5 | — | |||||||
| Ø 4.0 | ||||||||
| Ø 4.5 | — | — | ||||||
| Ø 5.0 | — | — | ||||||
| Ø 5.5 | — | — | — |
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). The implant is co-packed with its cover screw.
03 Restorative workflow
Prosthetic components.

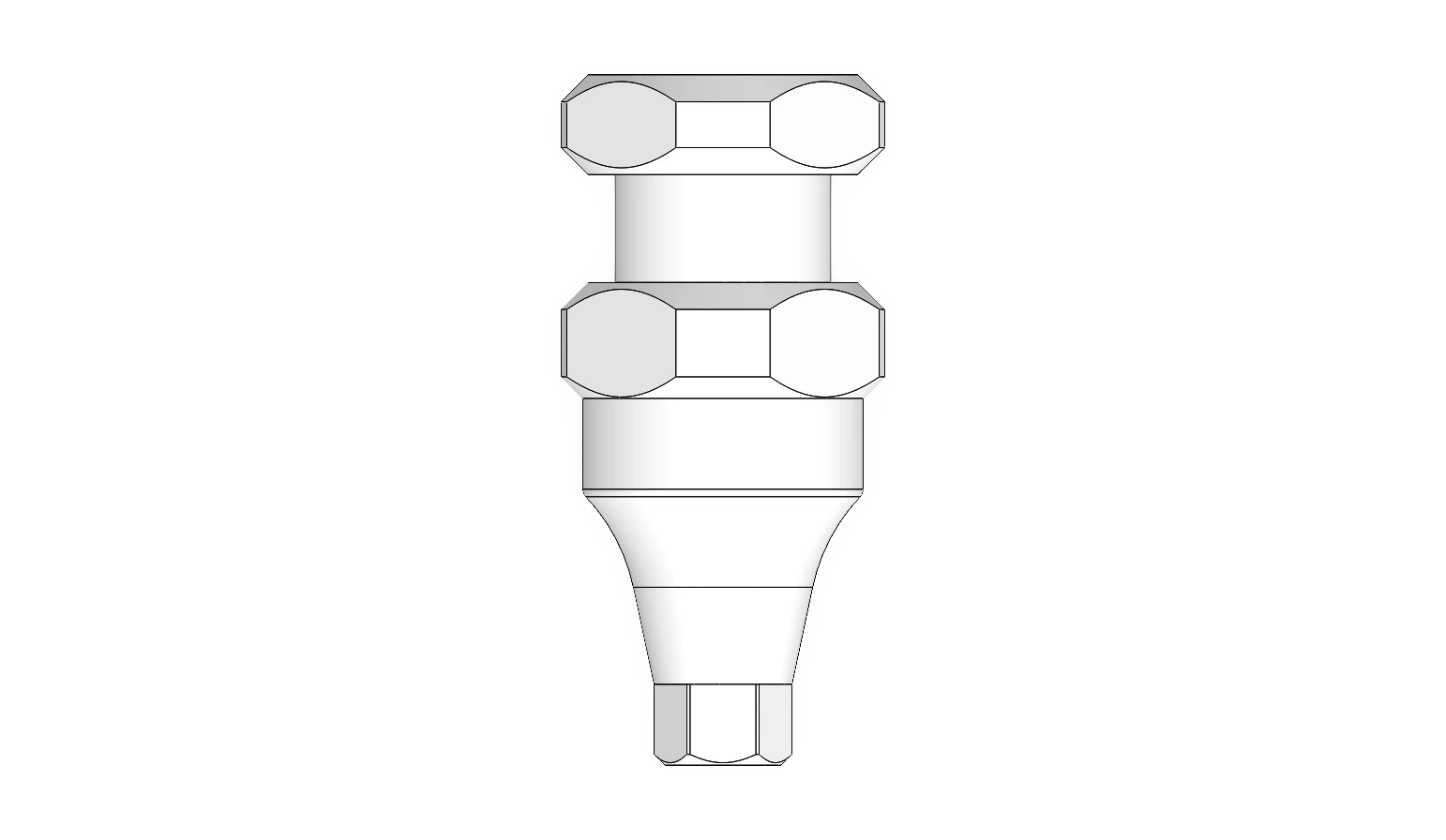

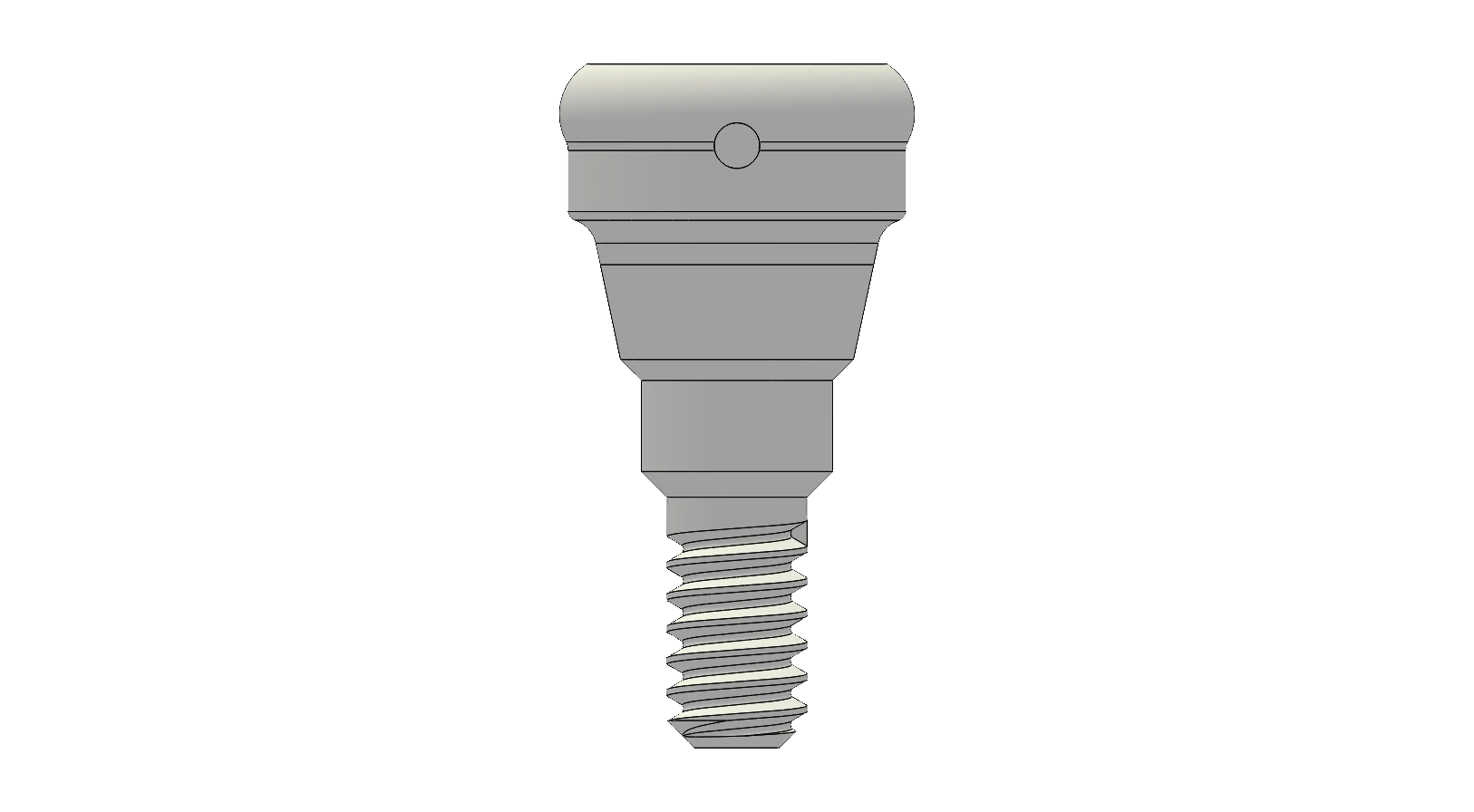

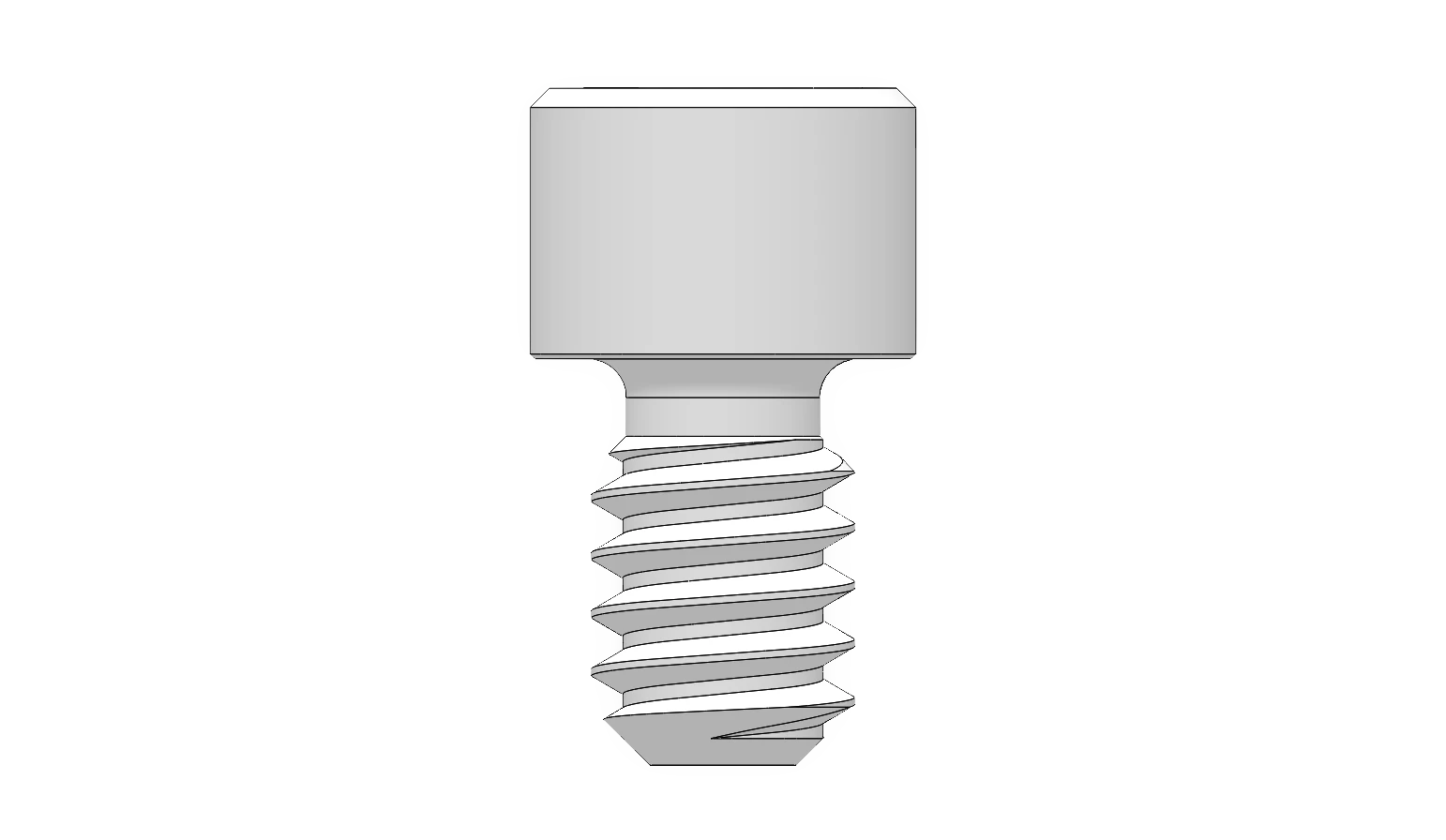

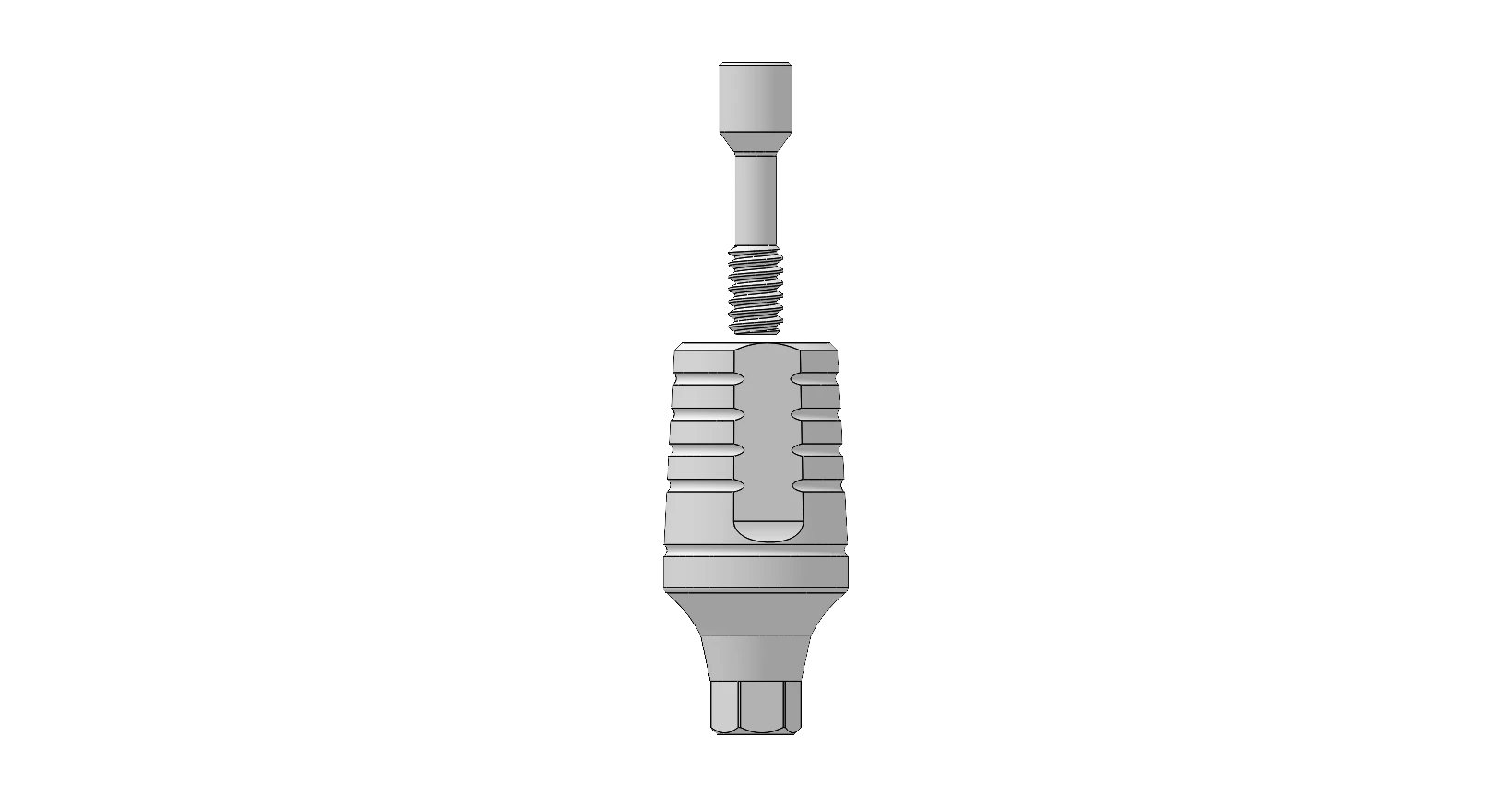

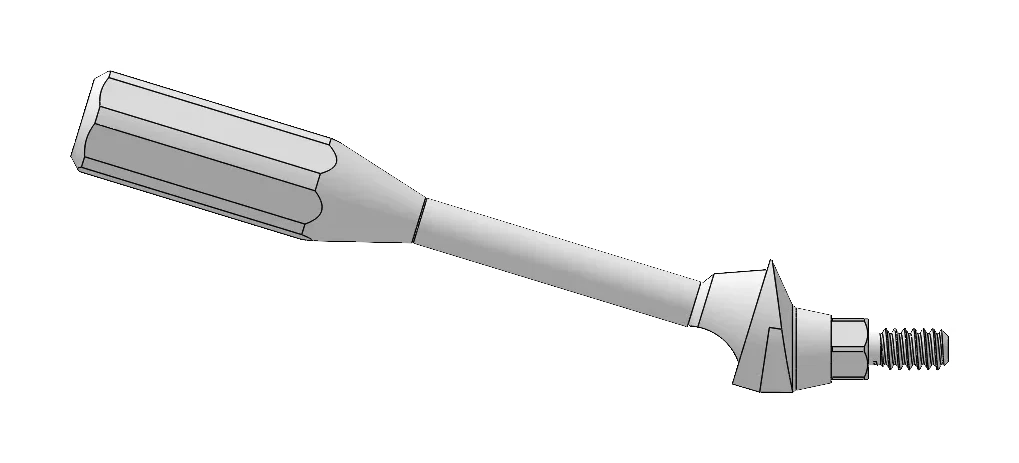

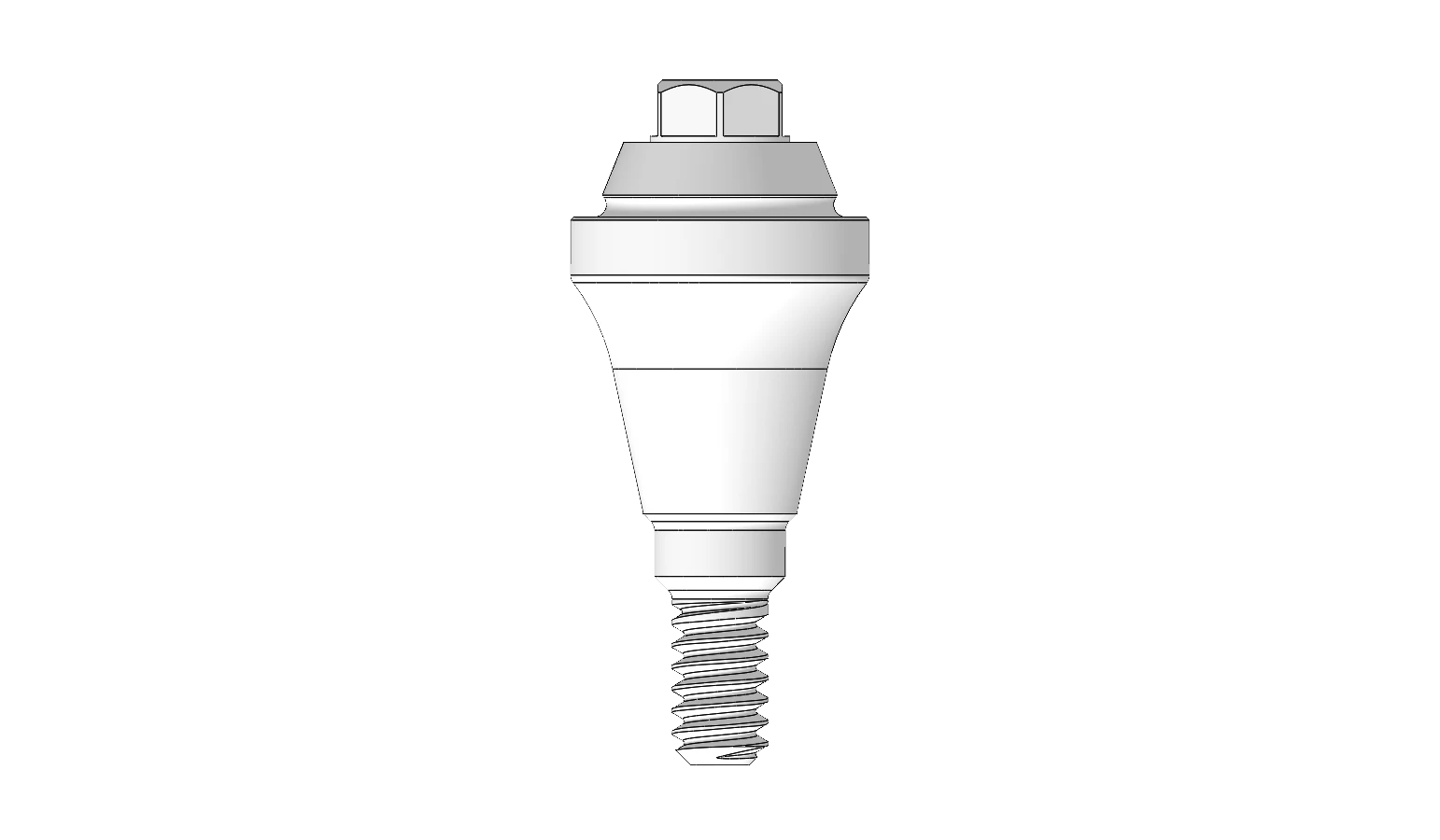

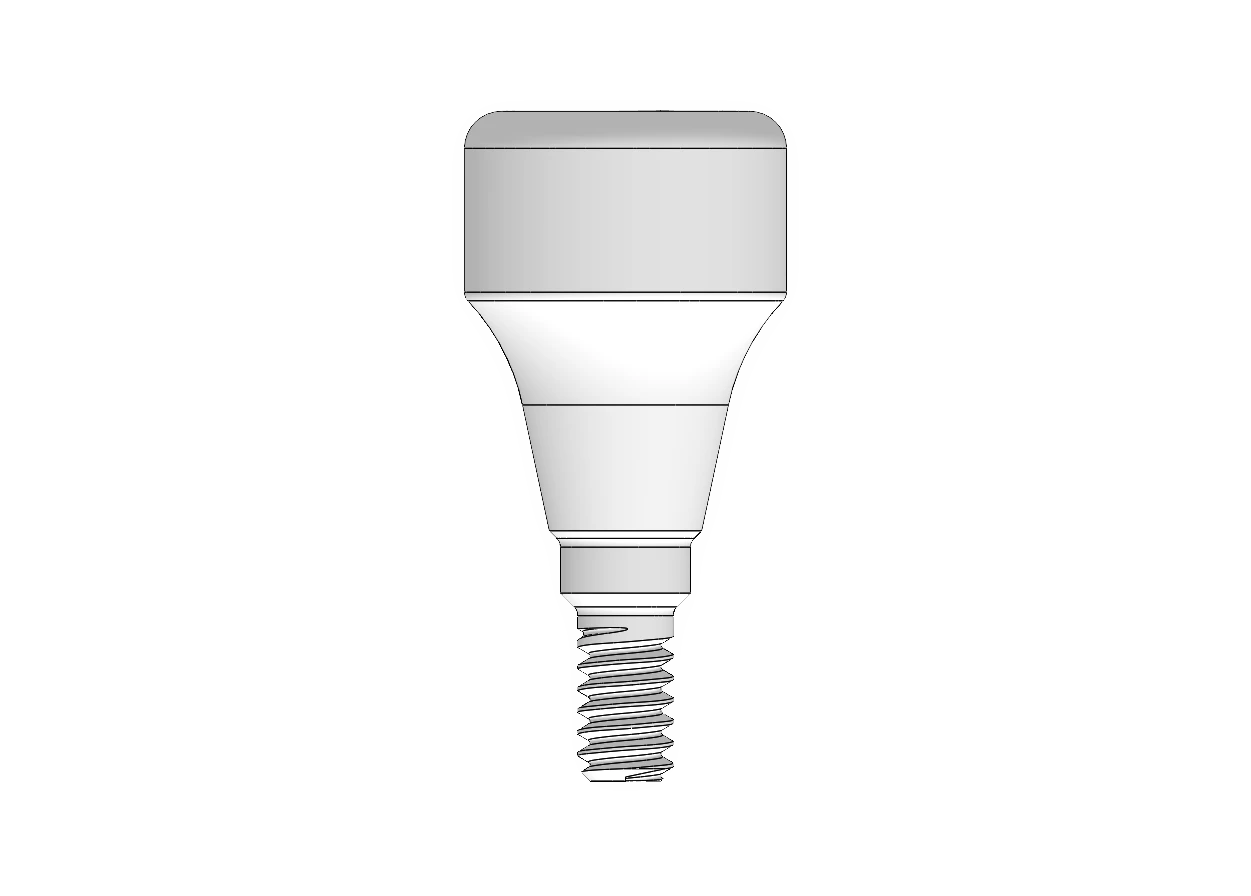

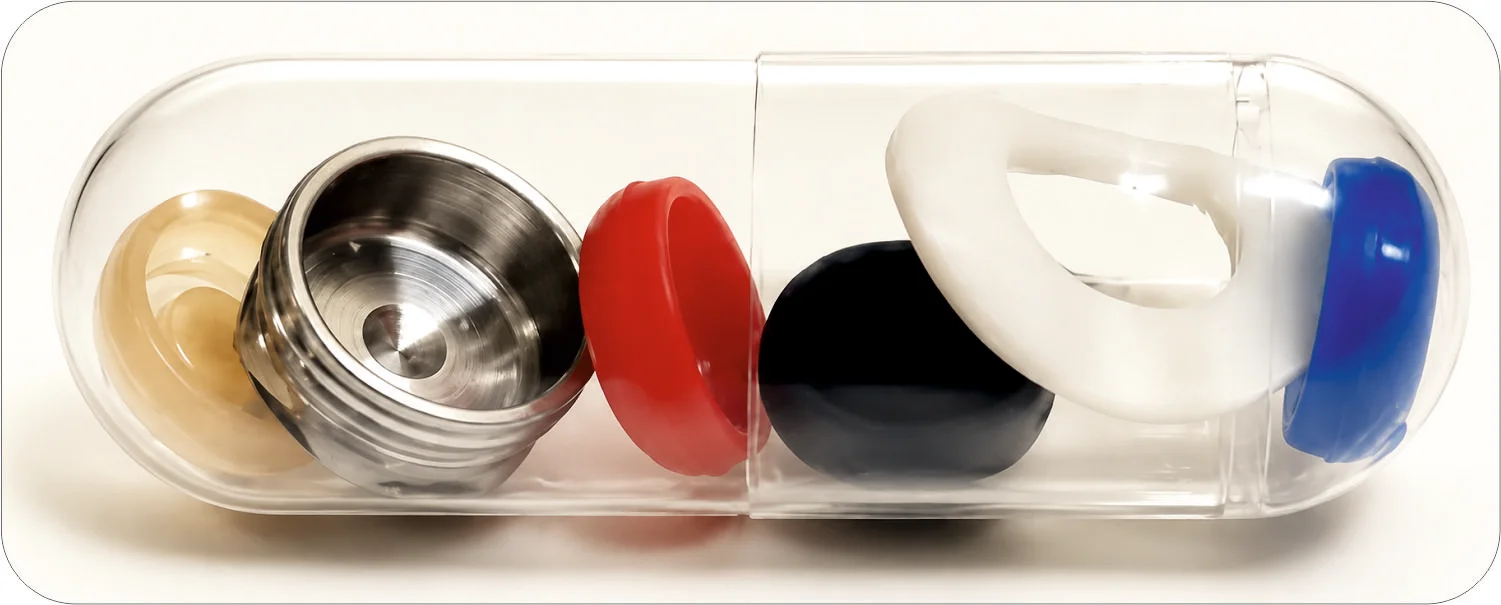

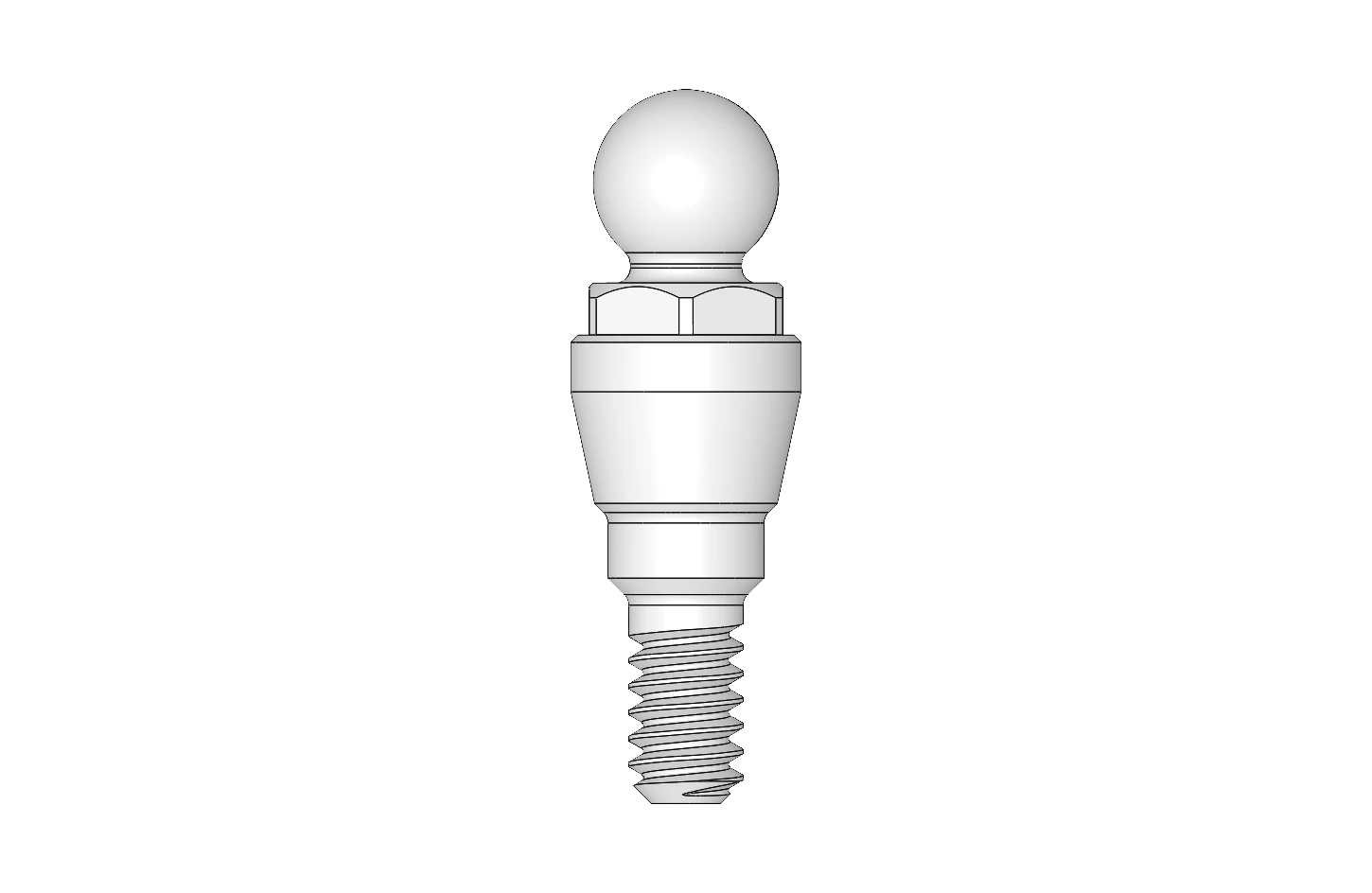

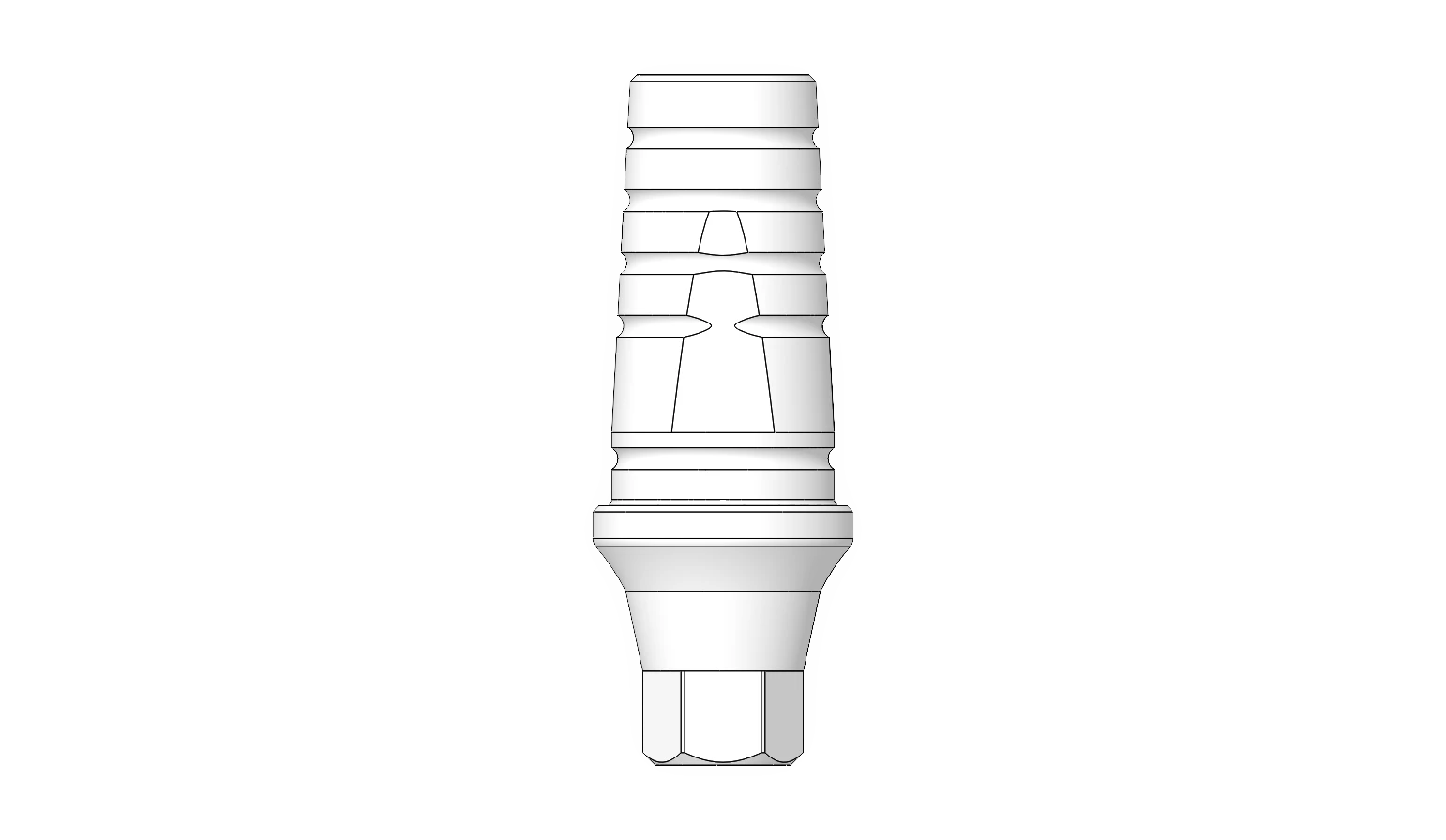

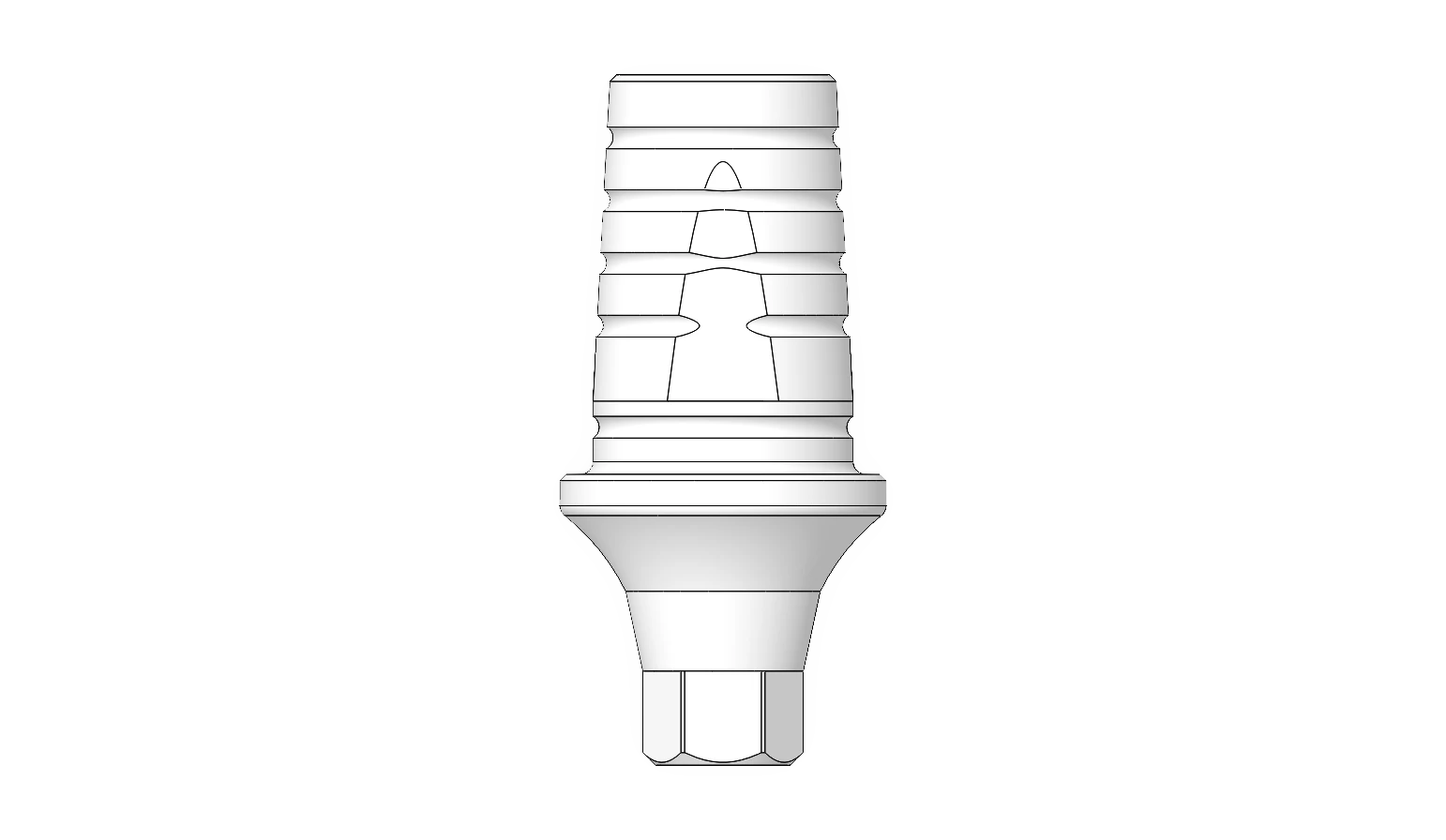

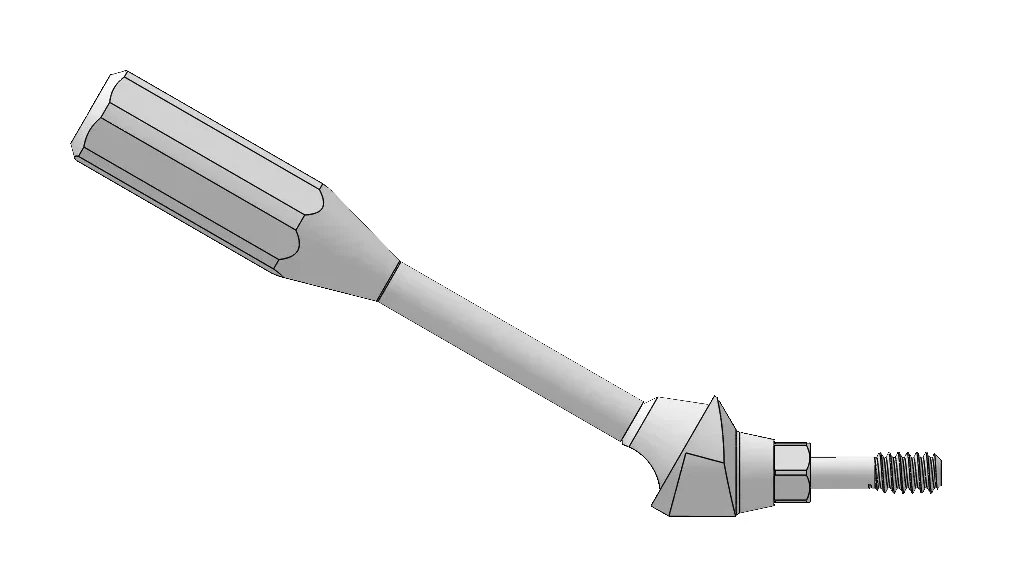

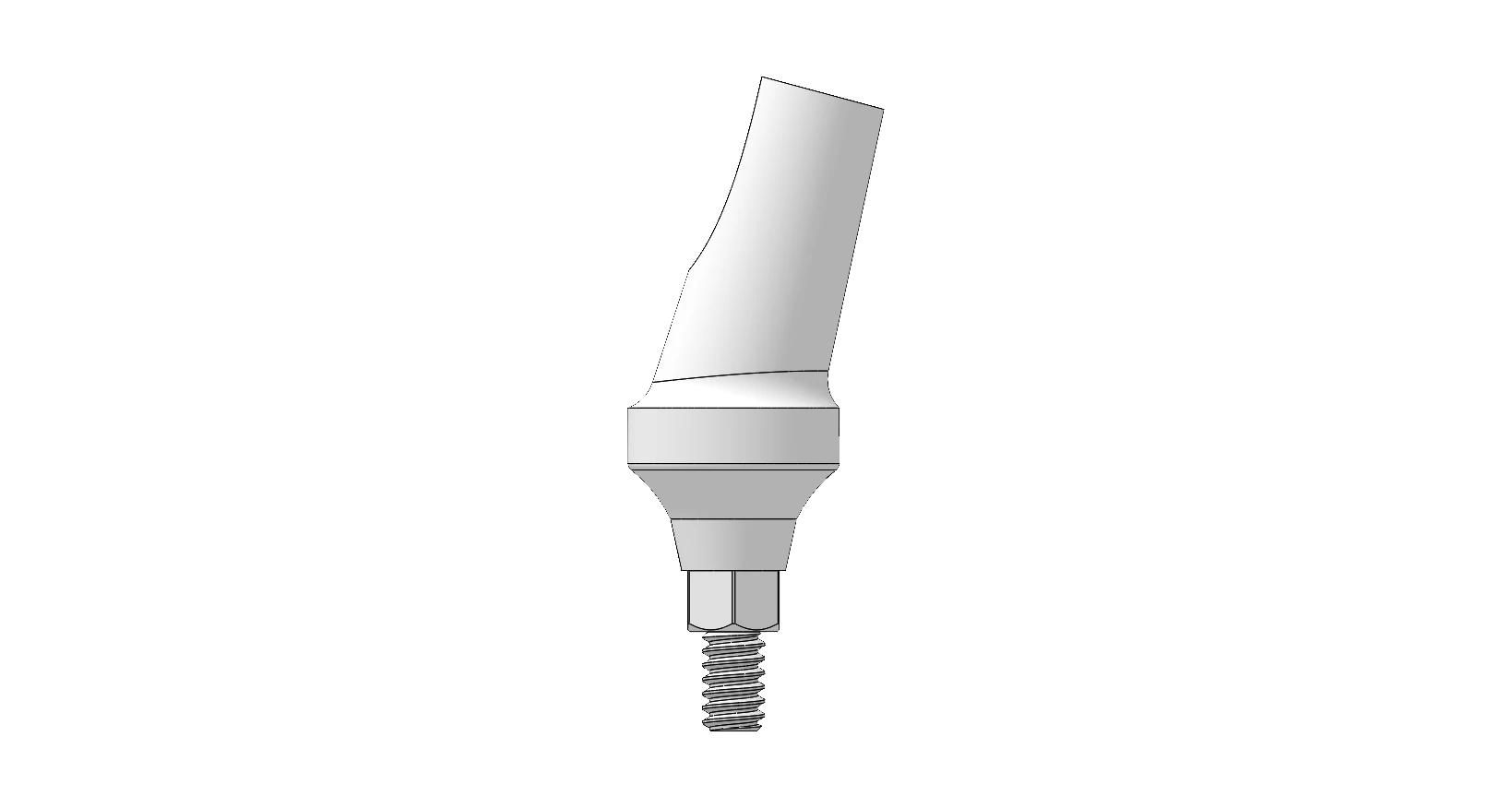

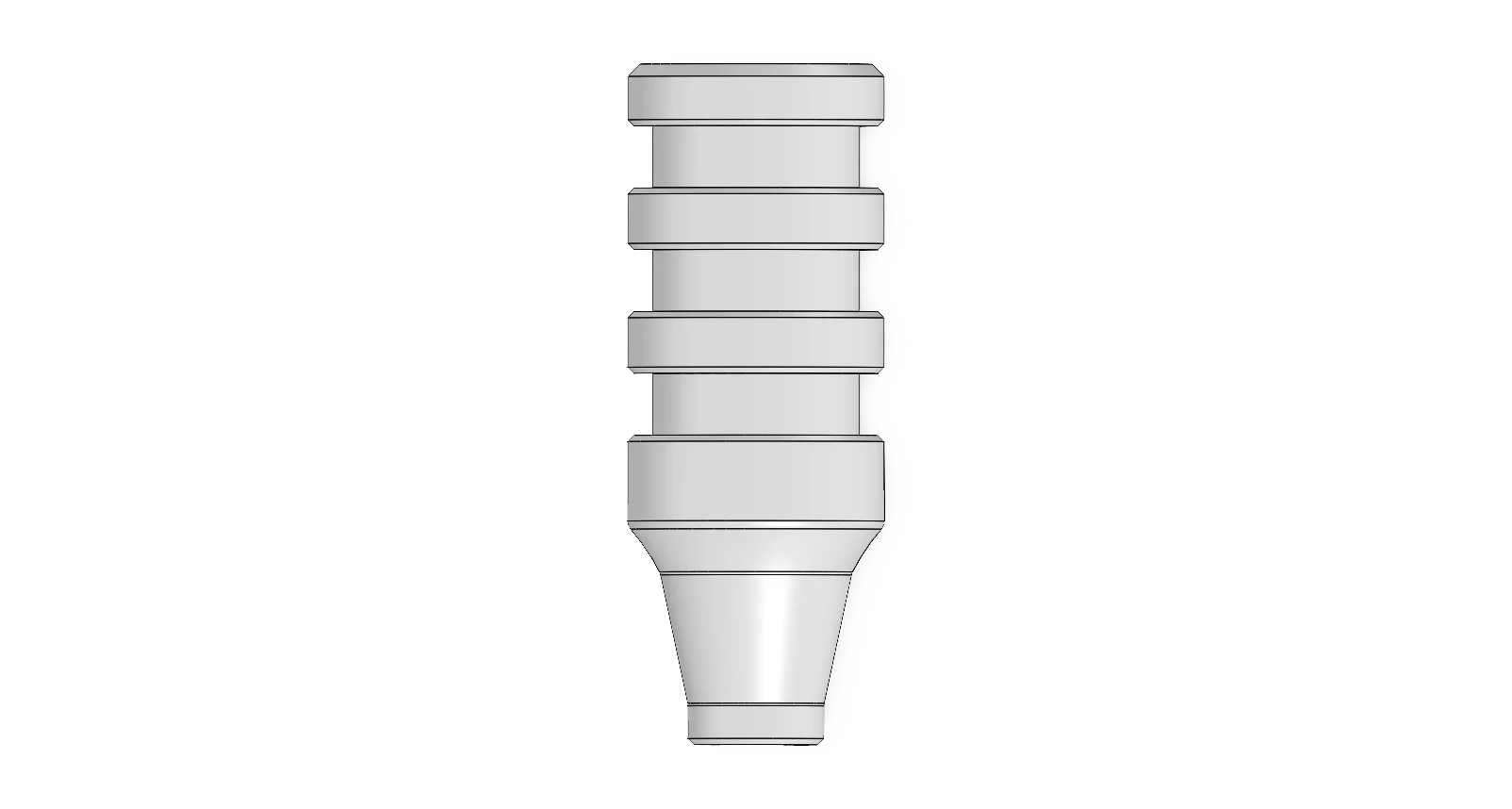

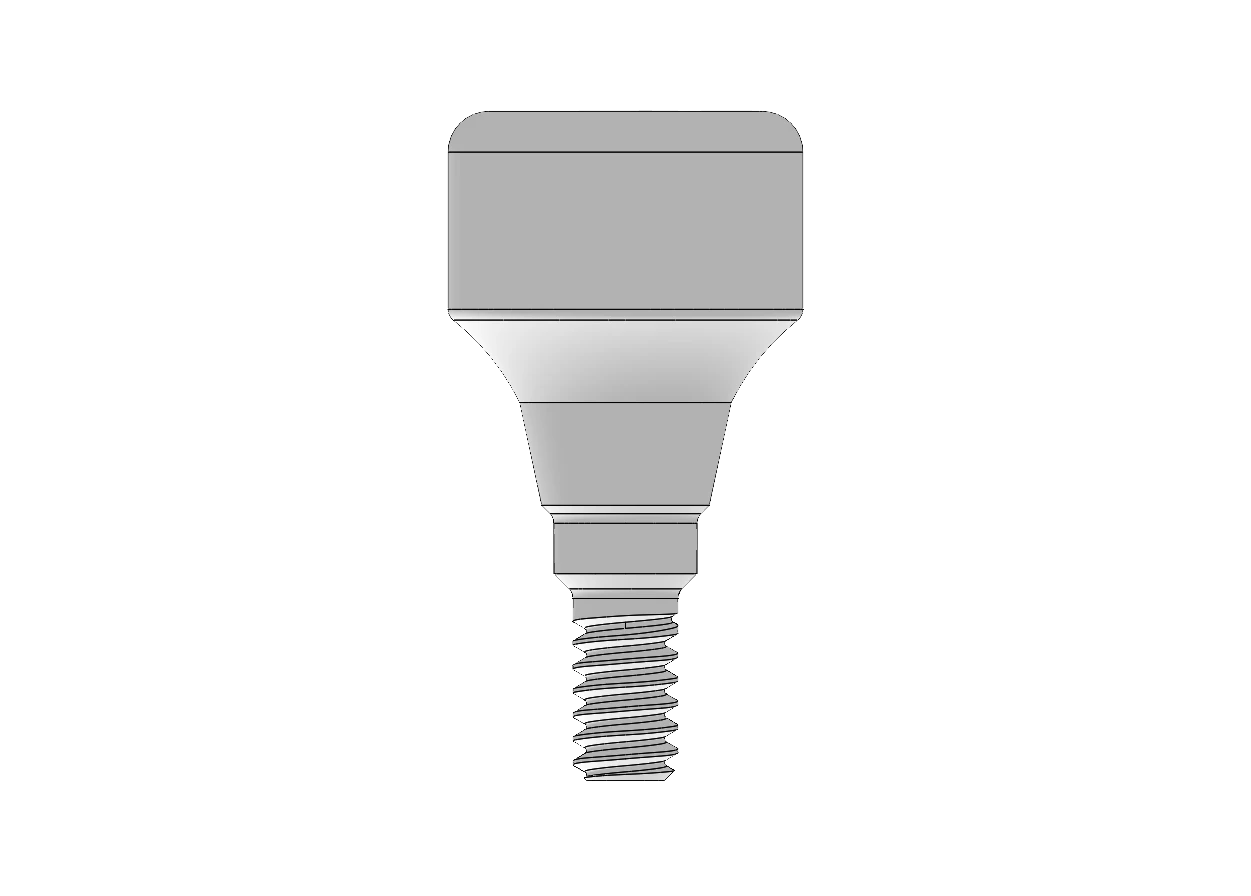

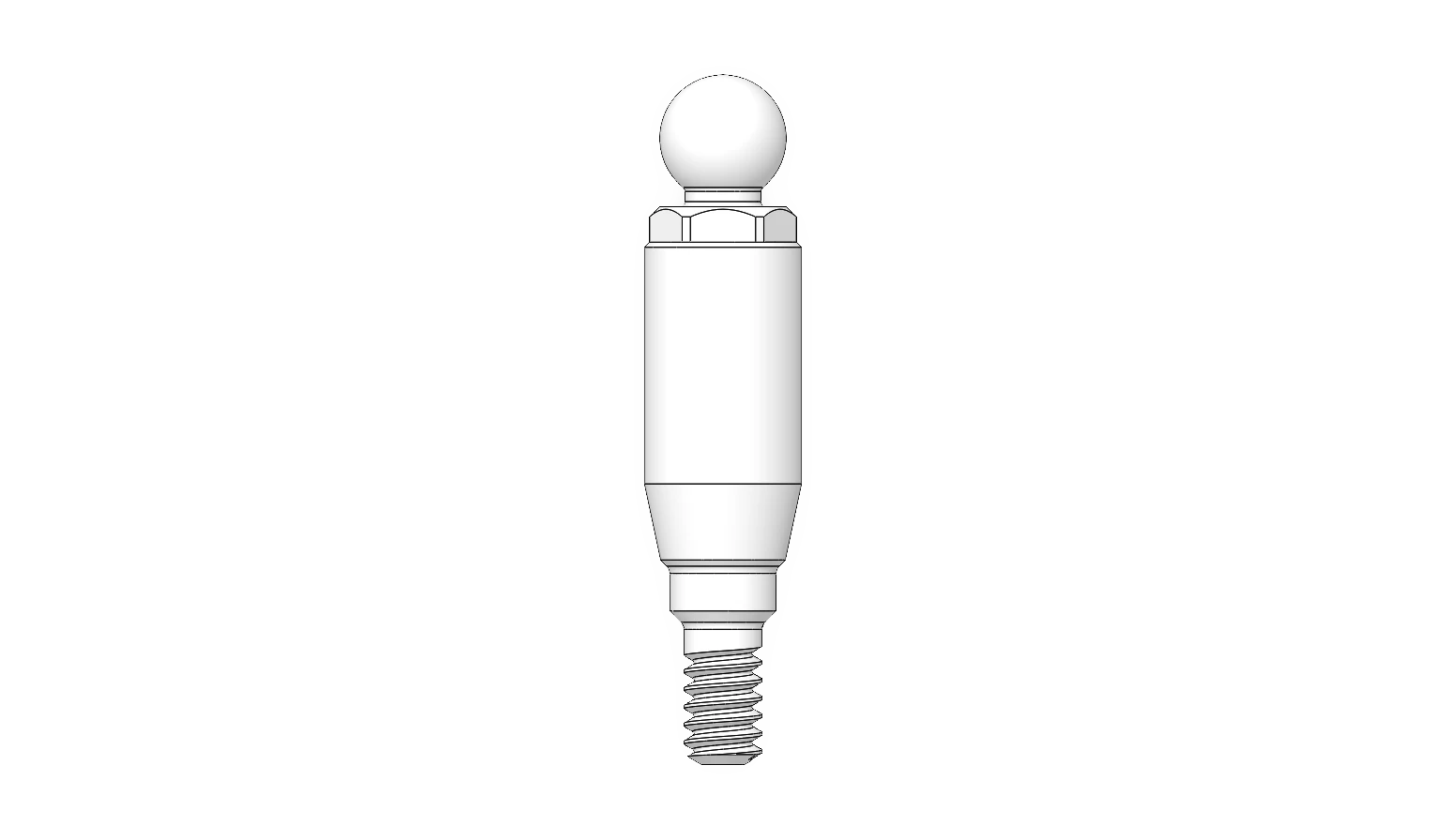

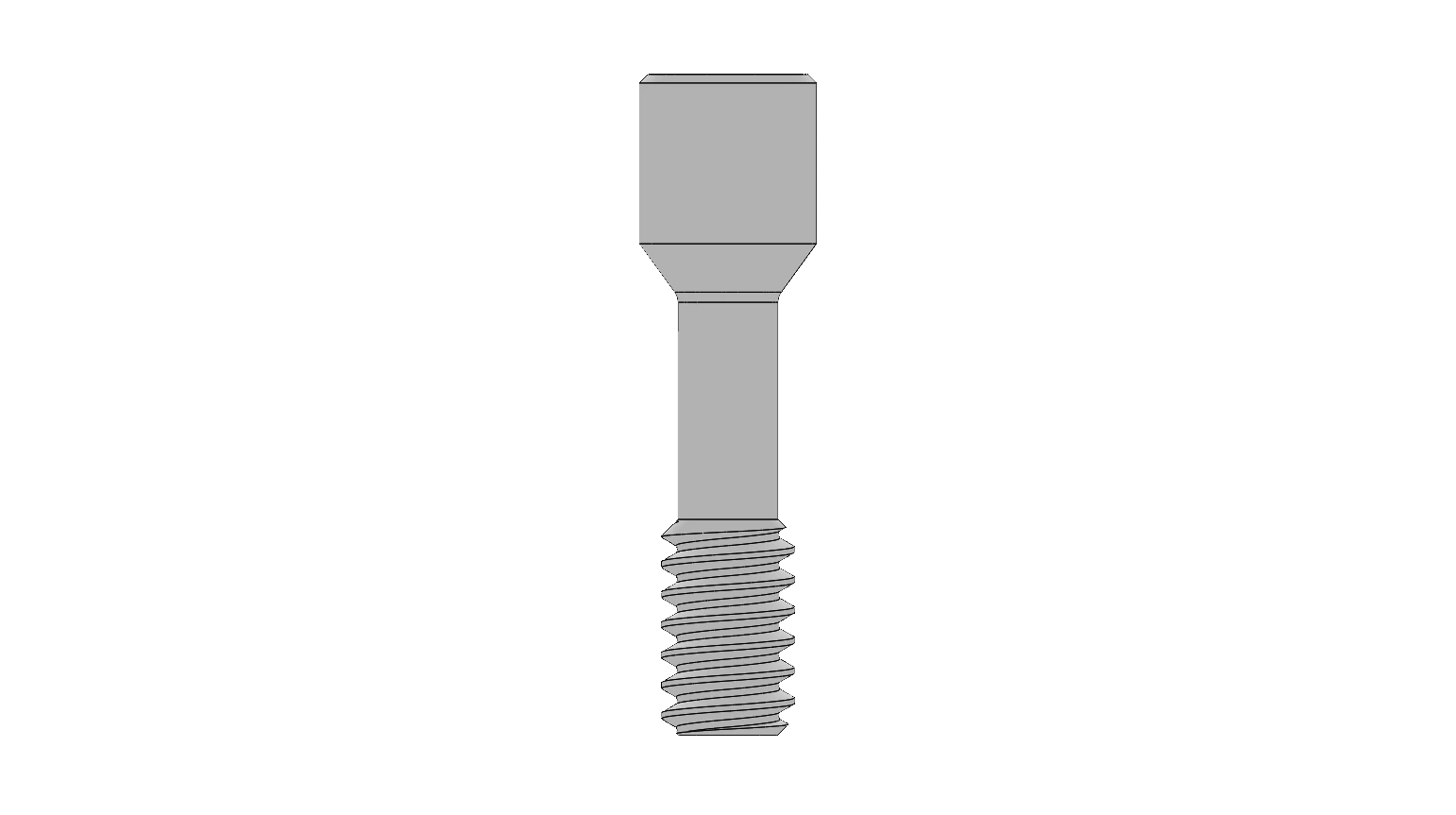

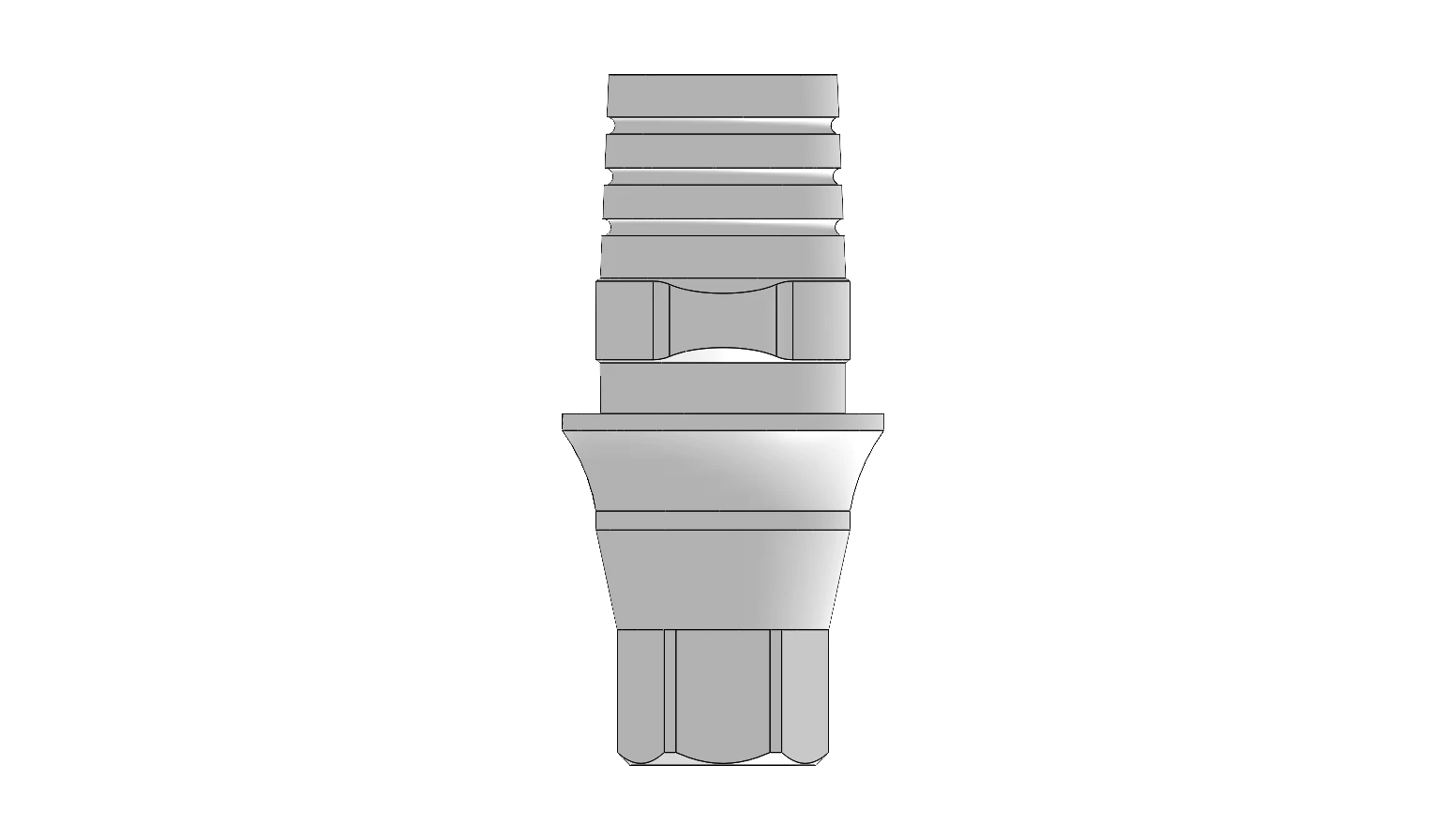

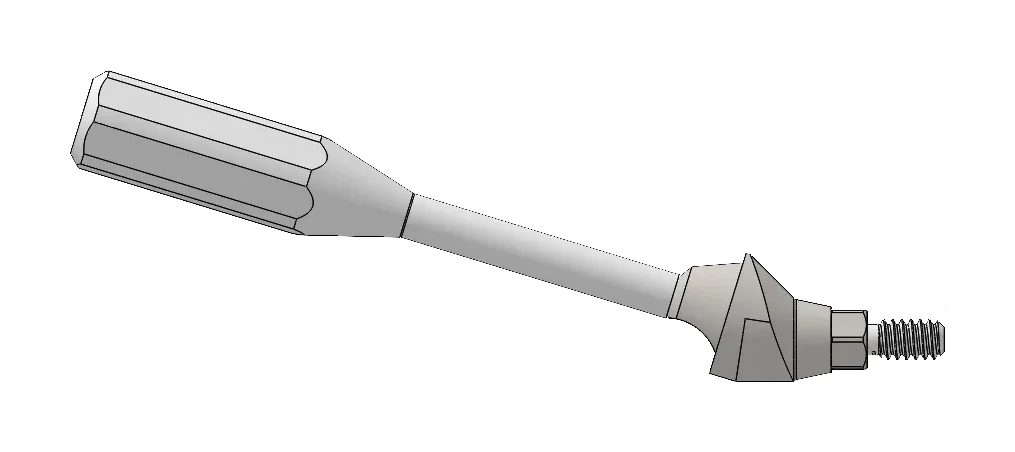

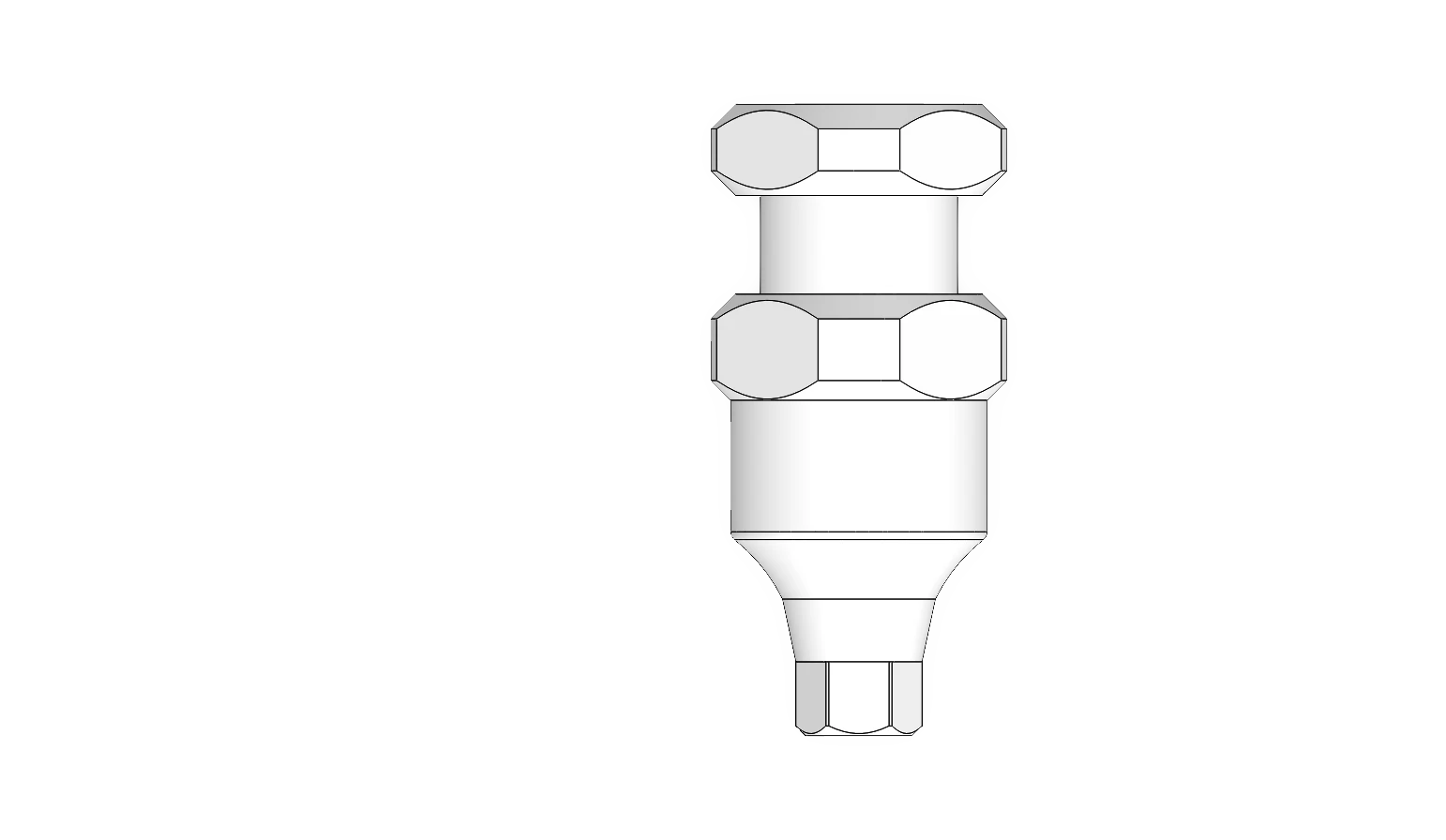

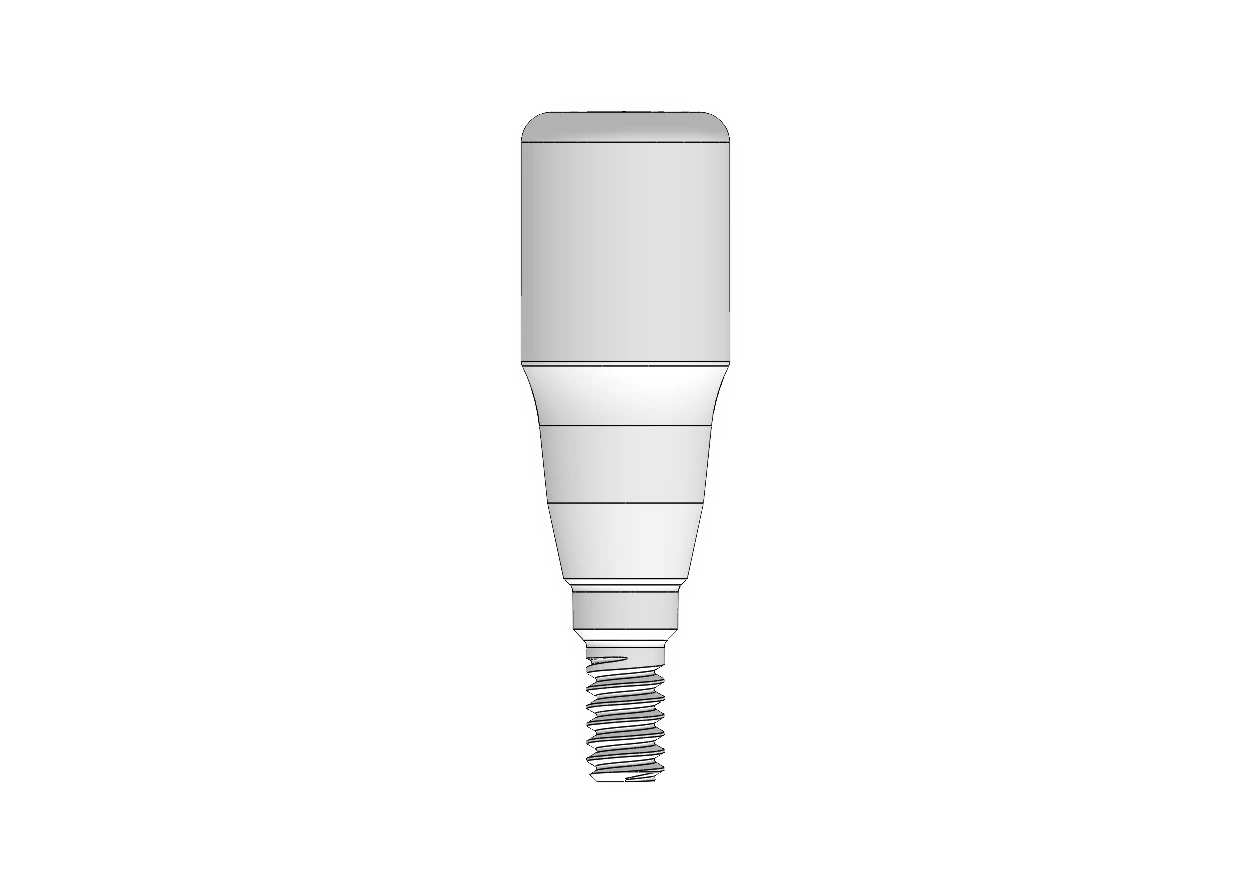

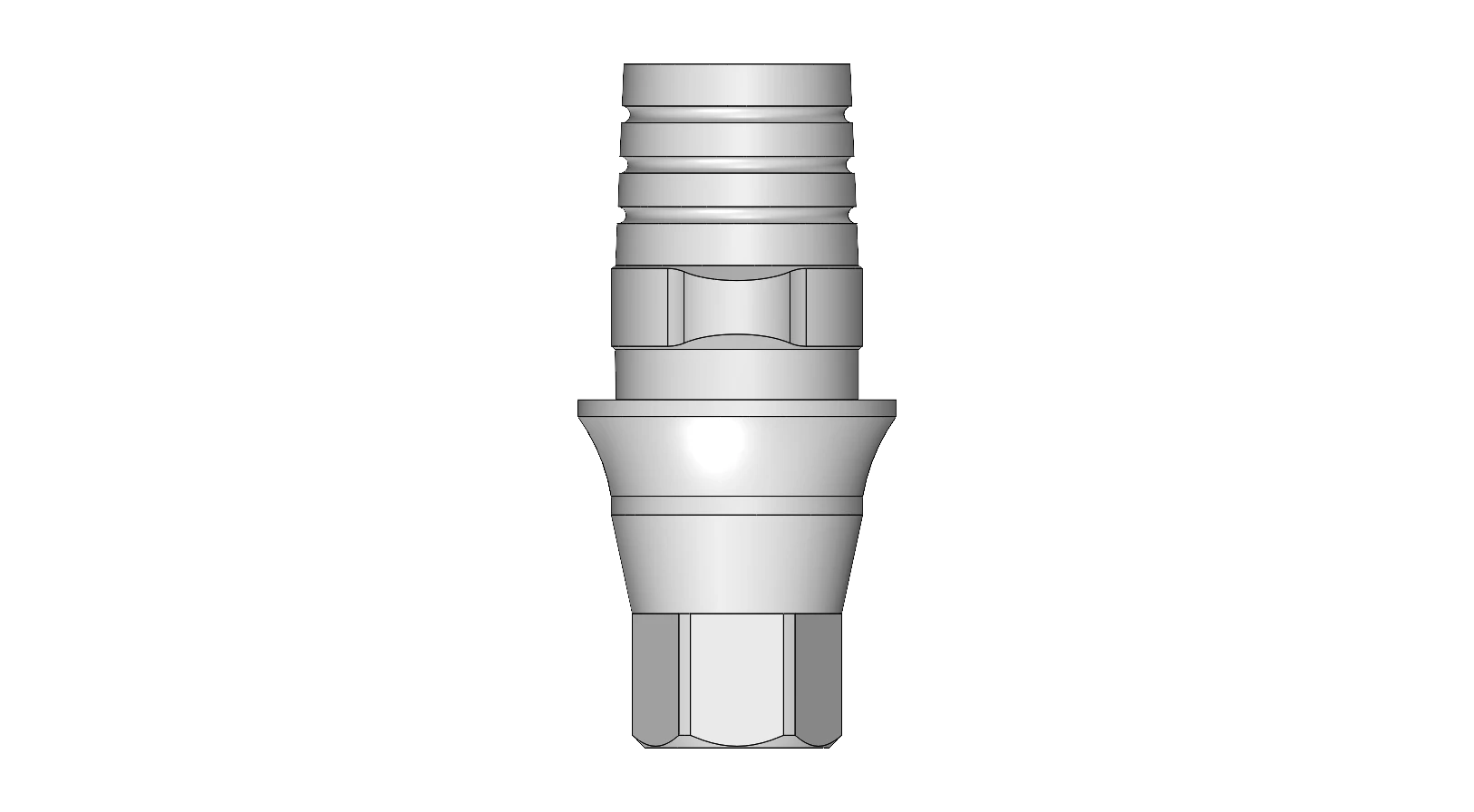

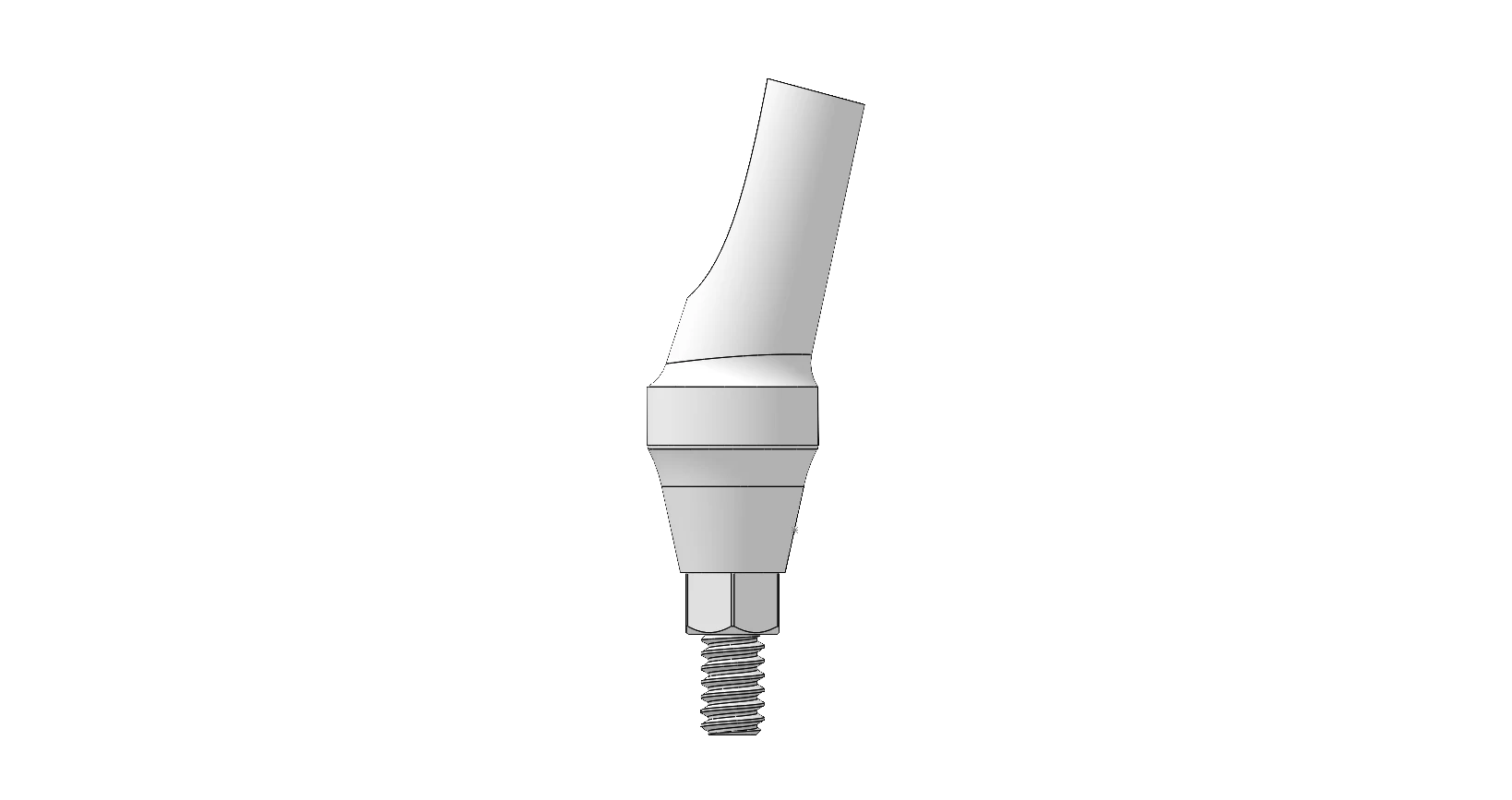

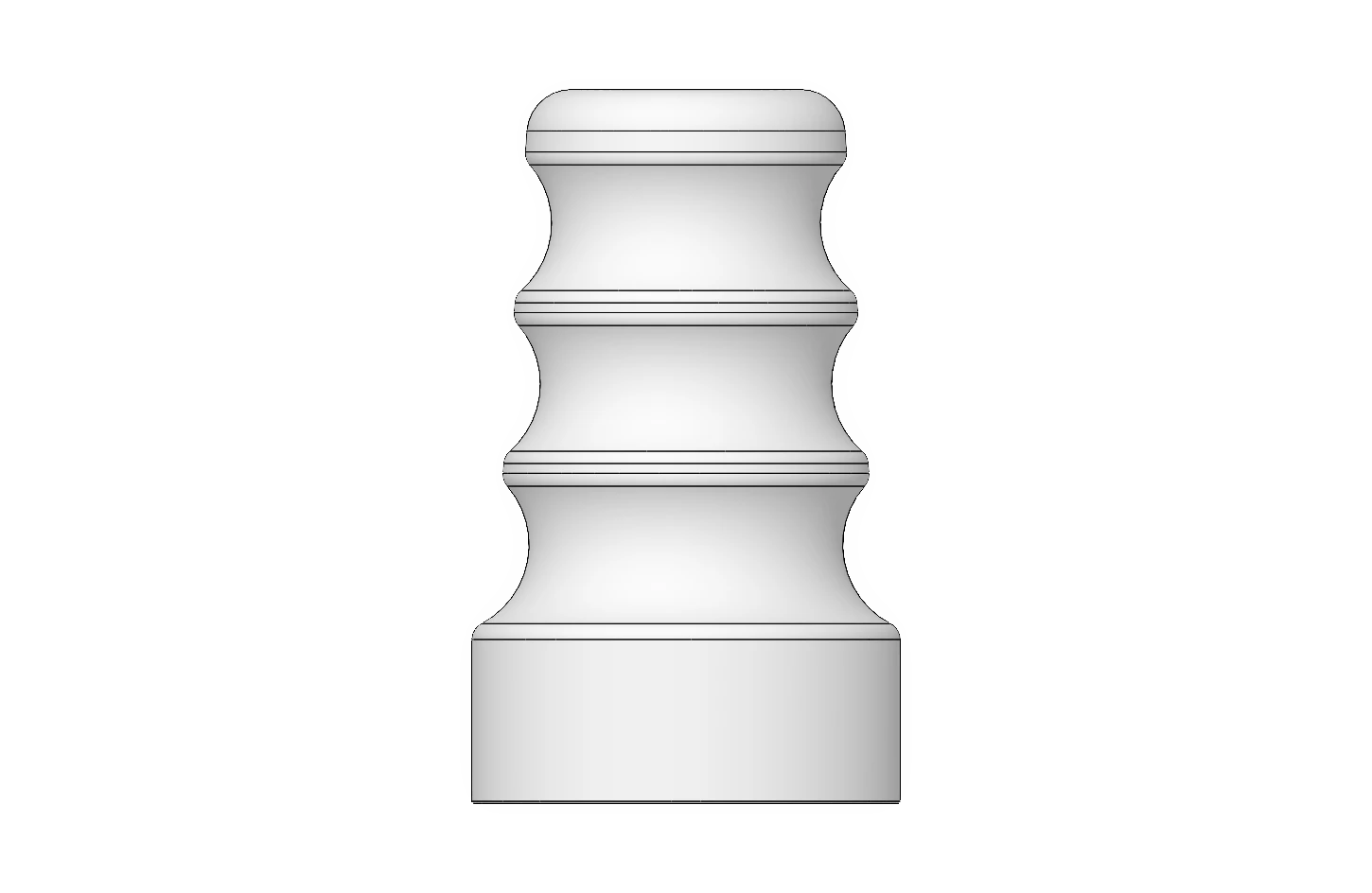

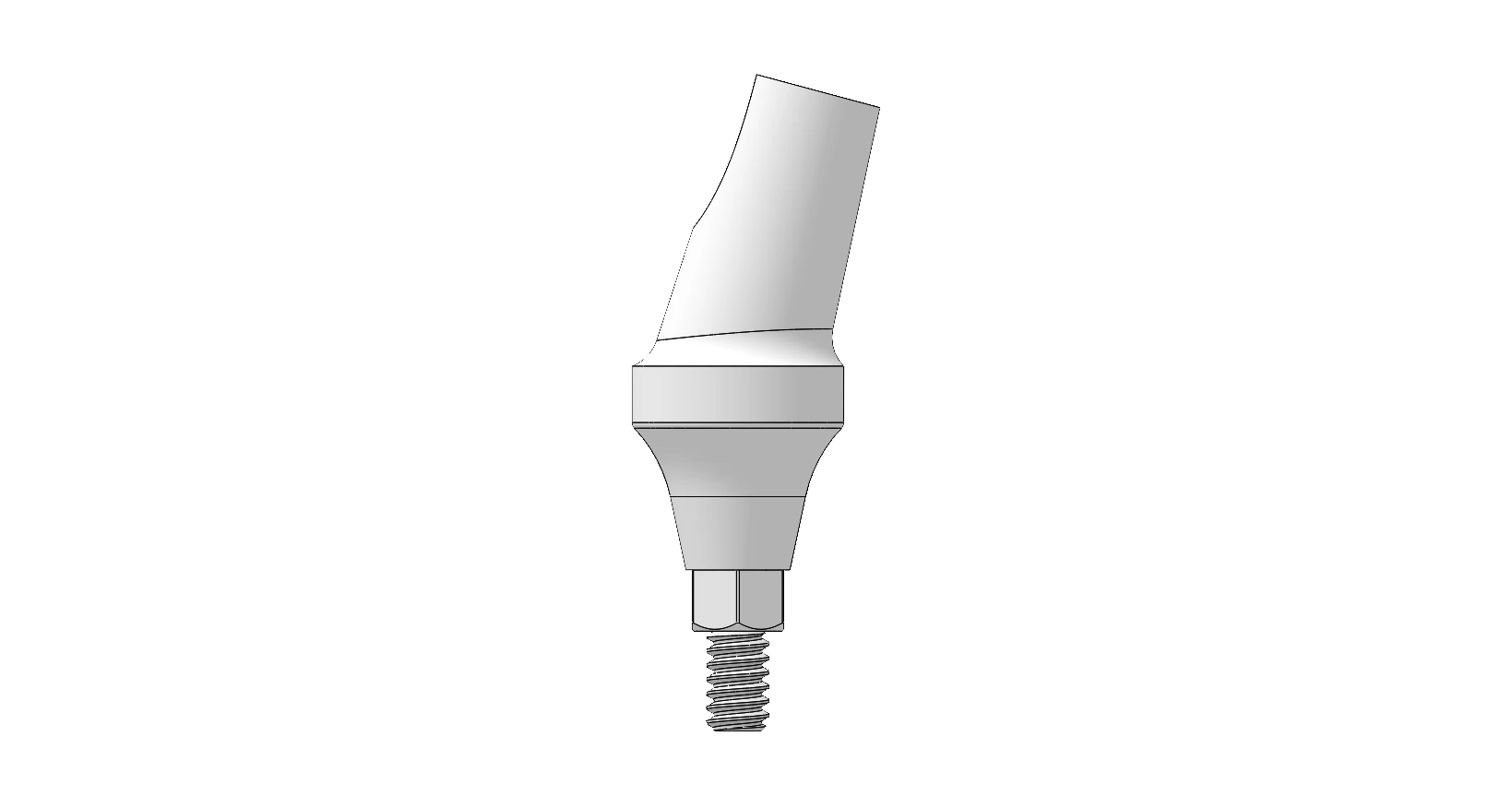

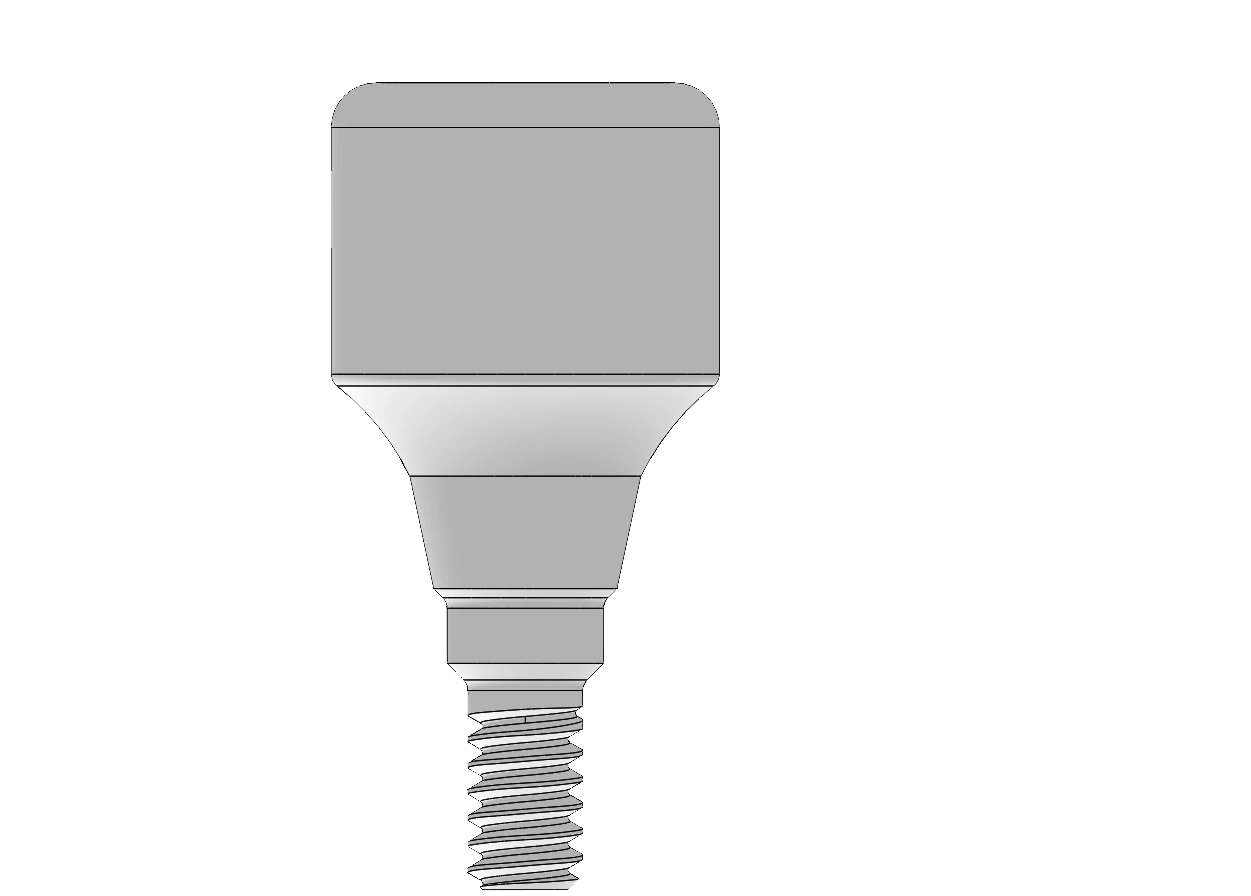

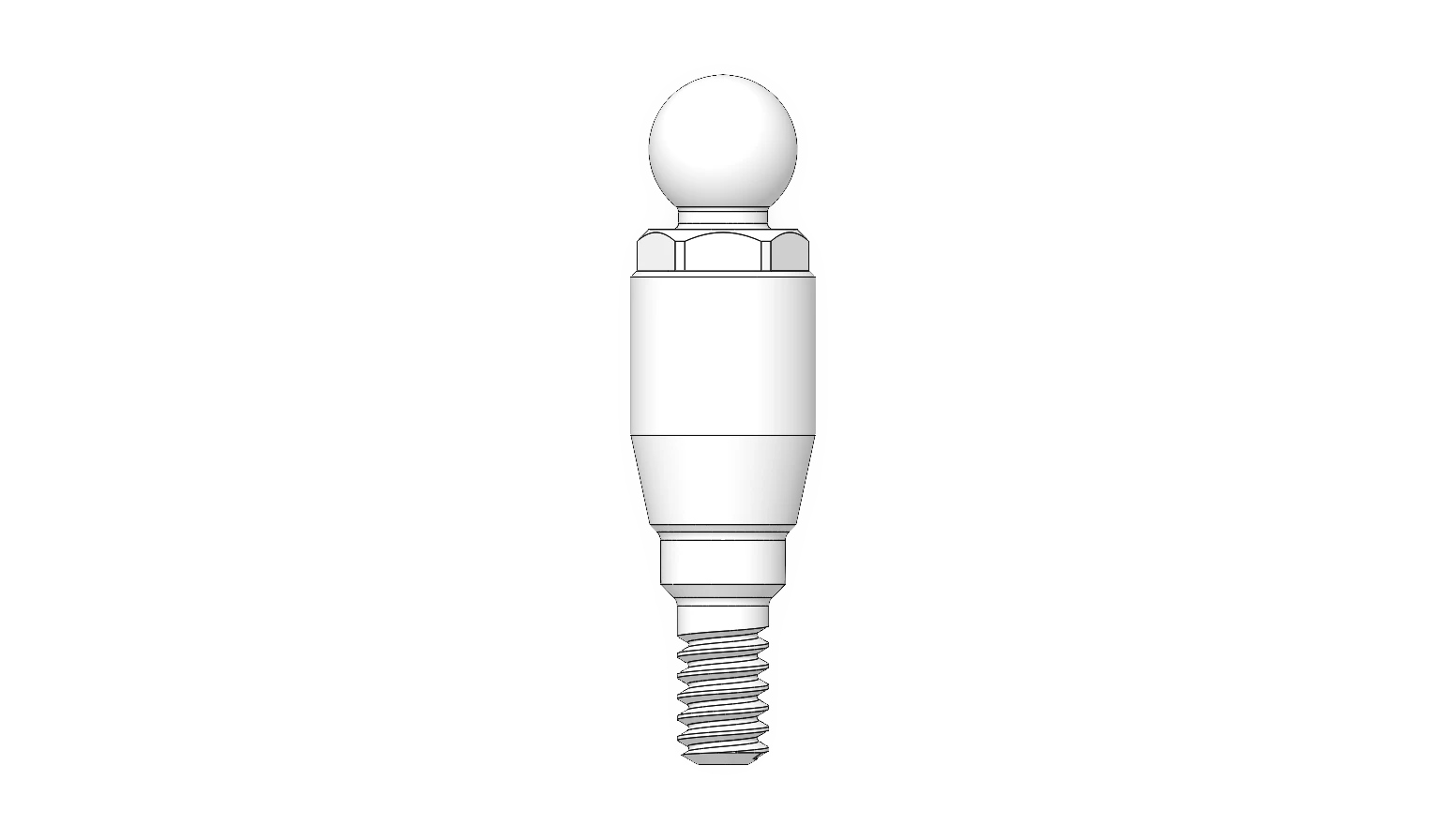

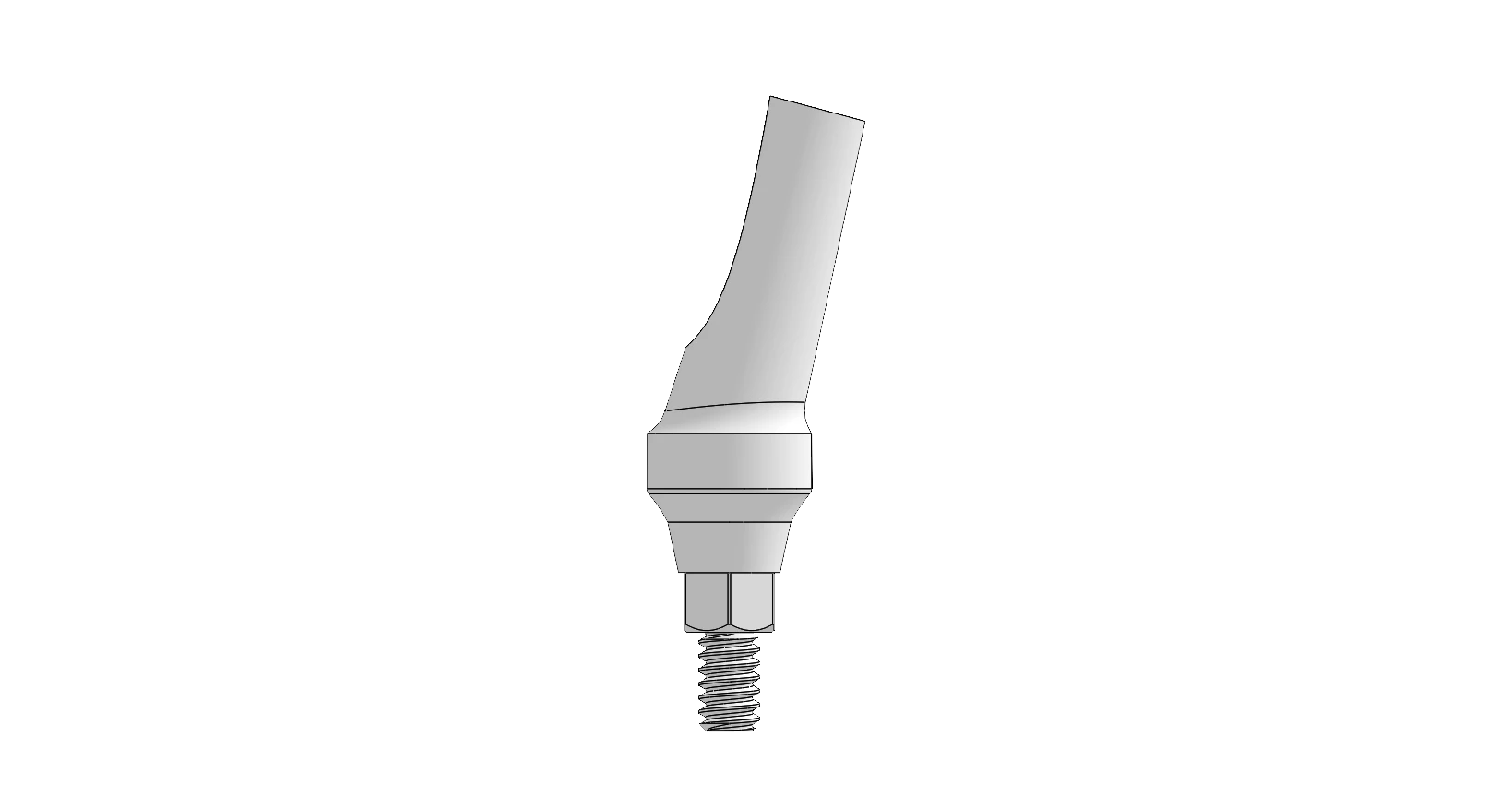

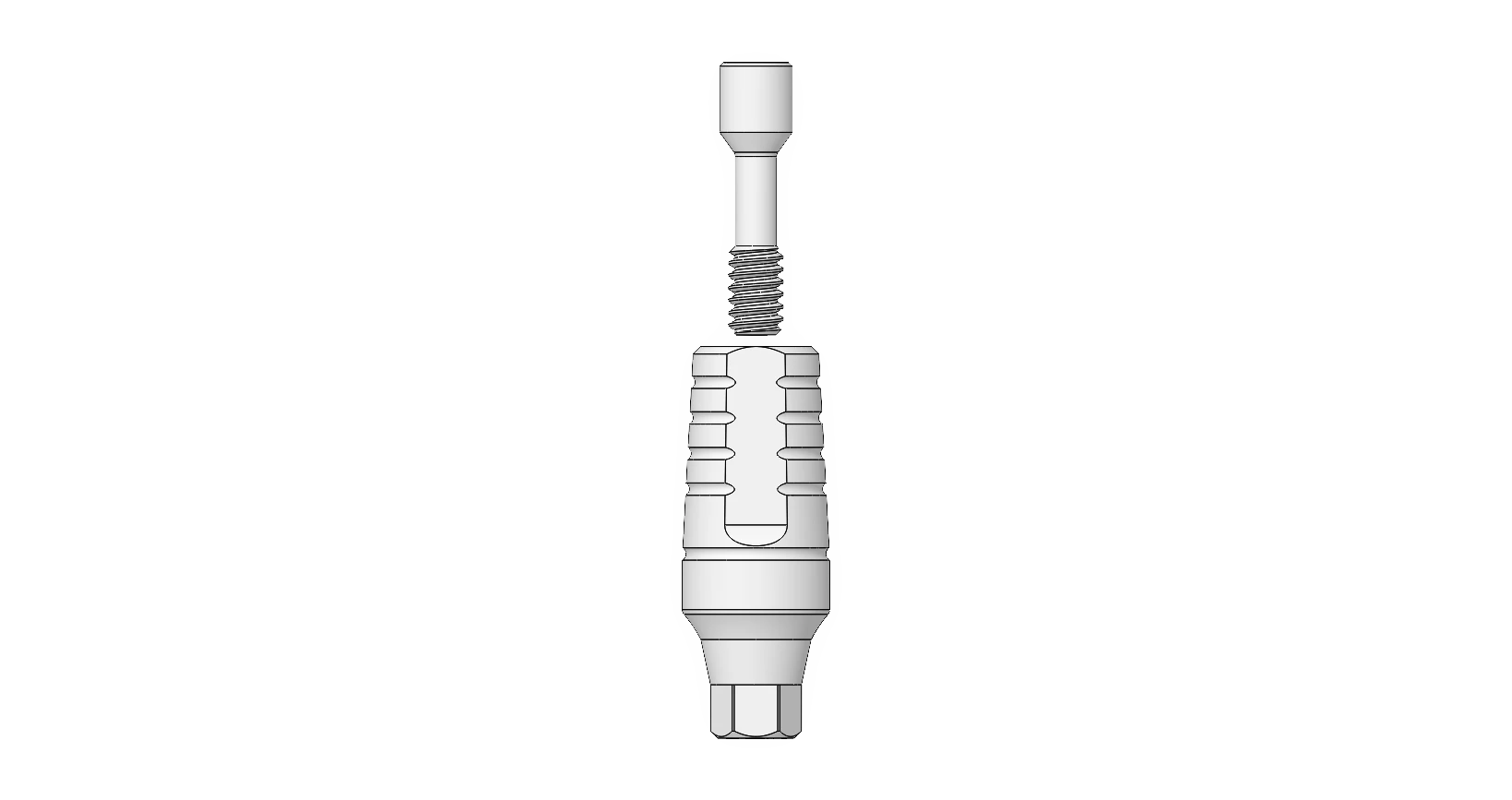

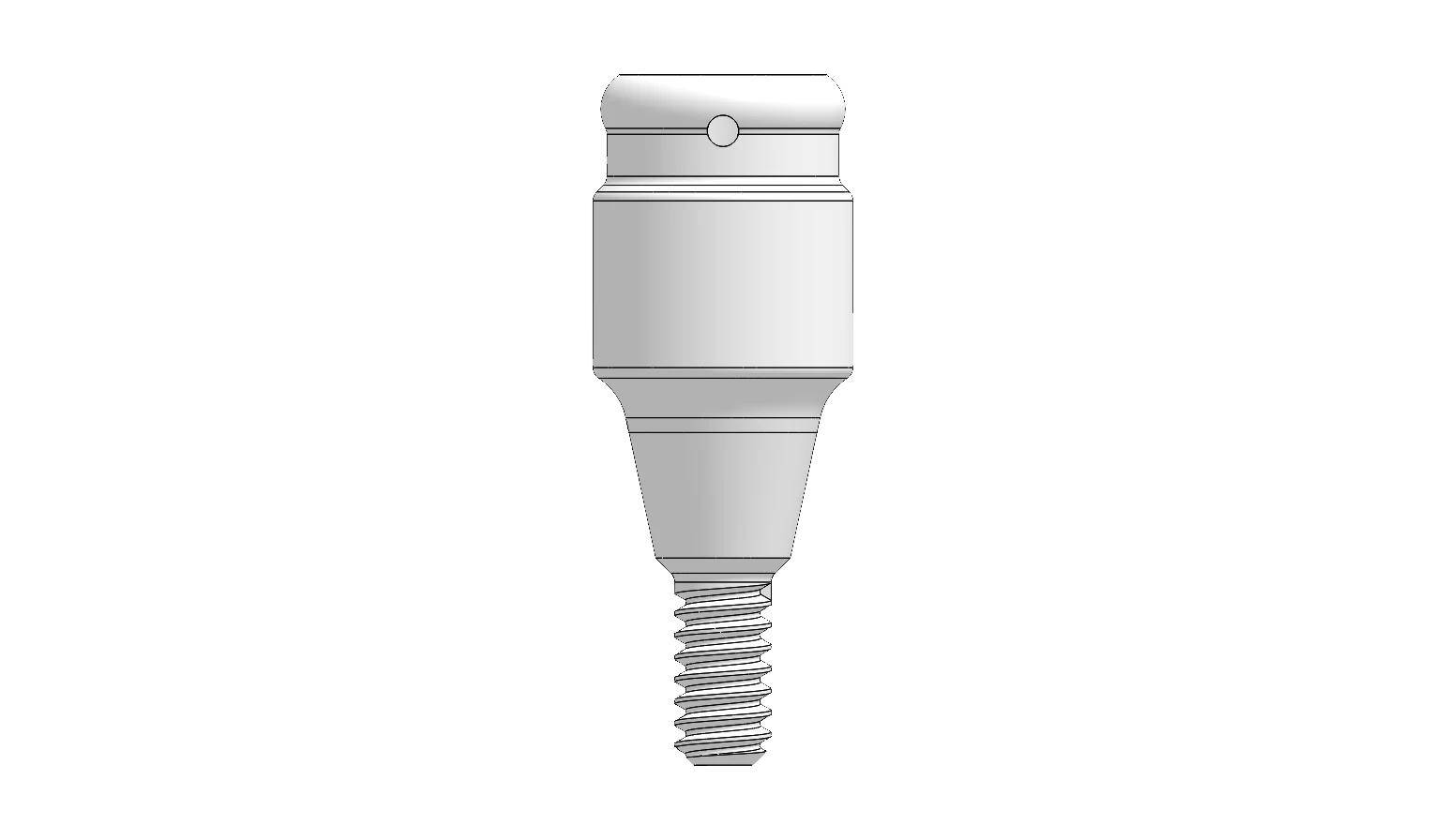

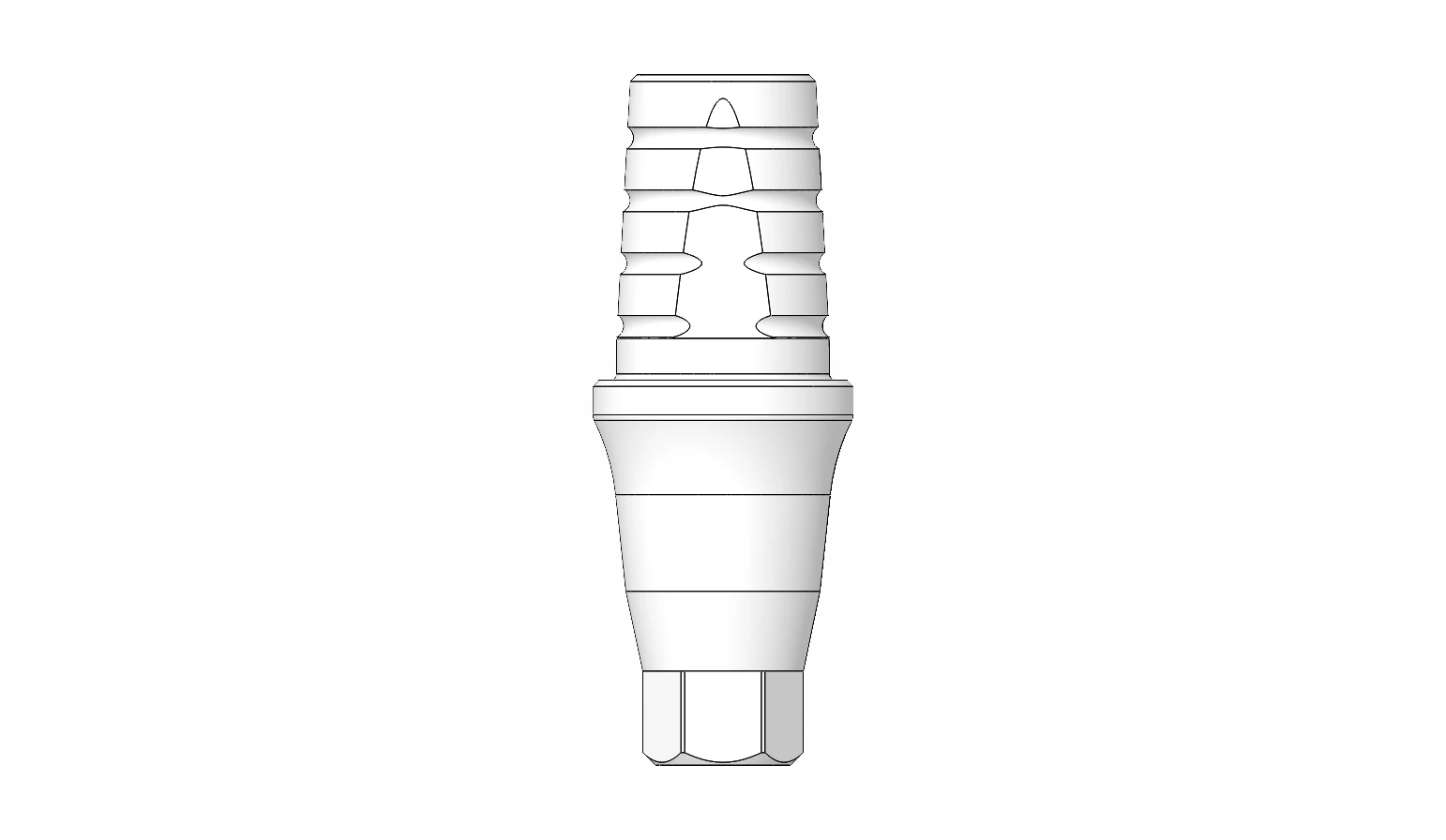

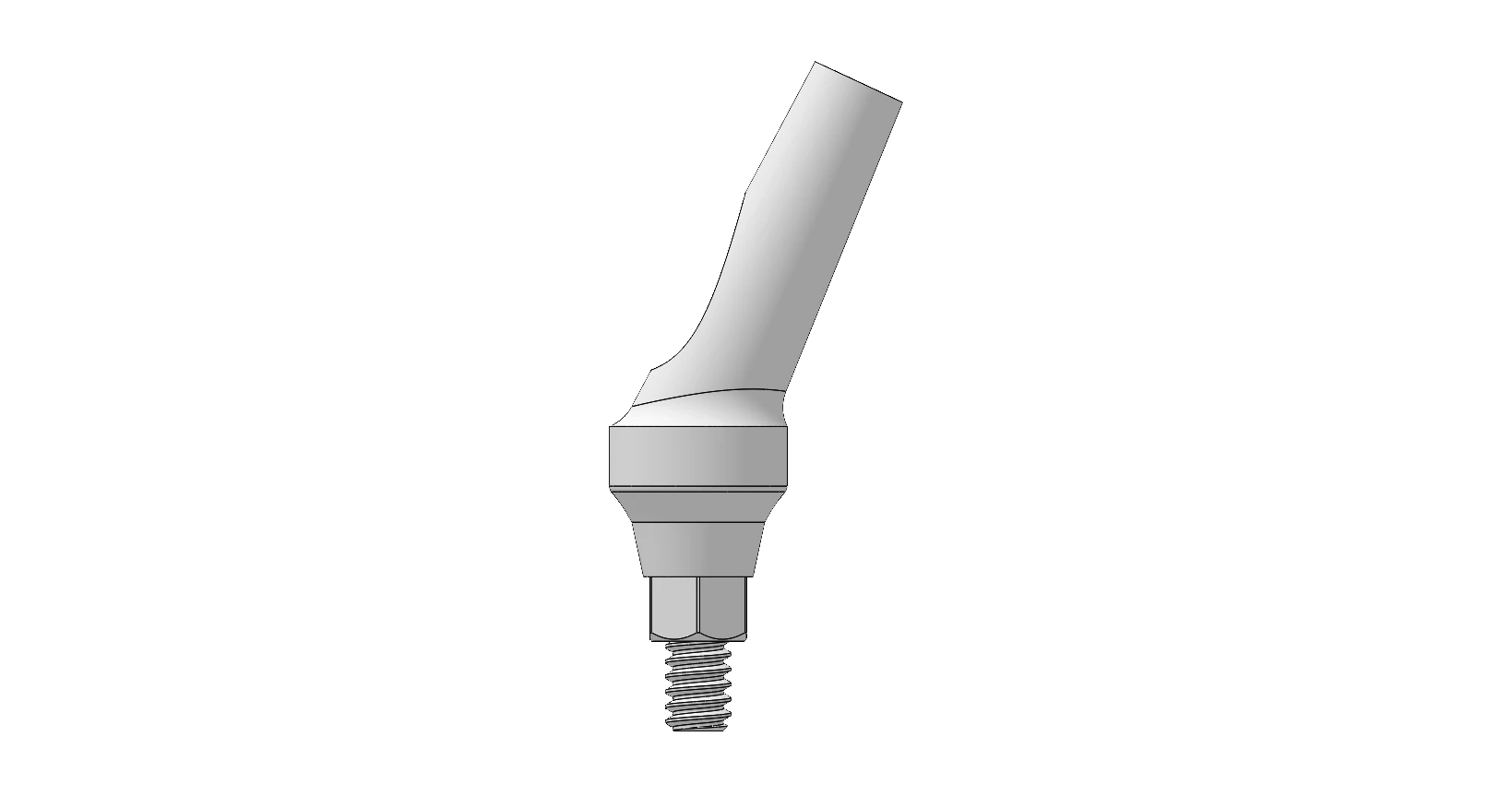

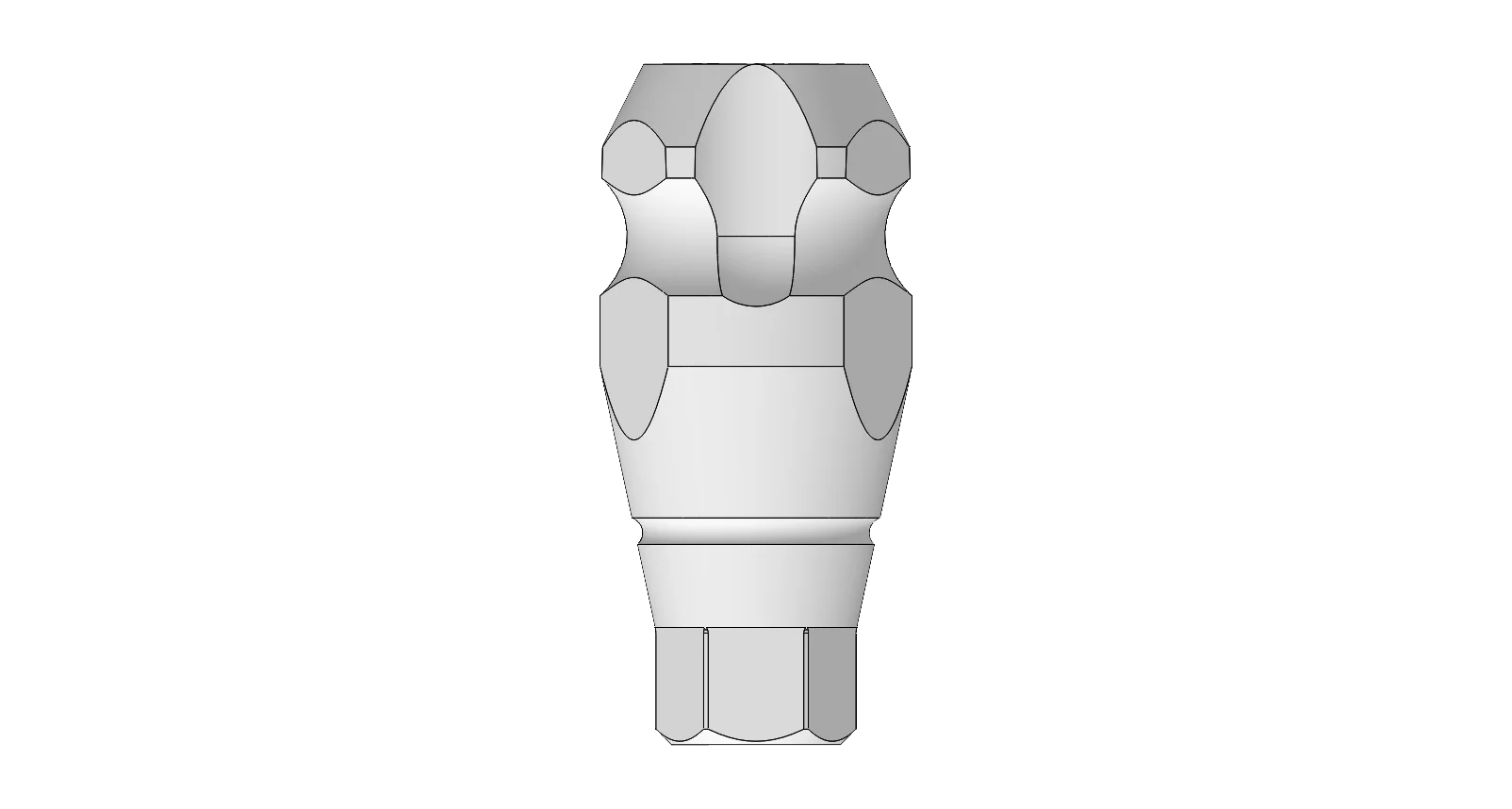

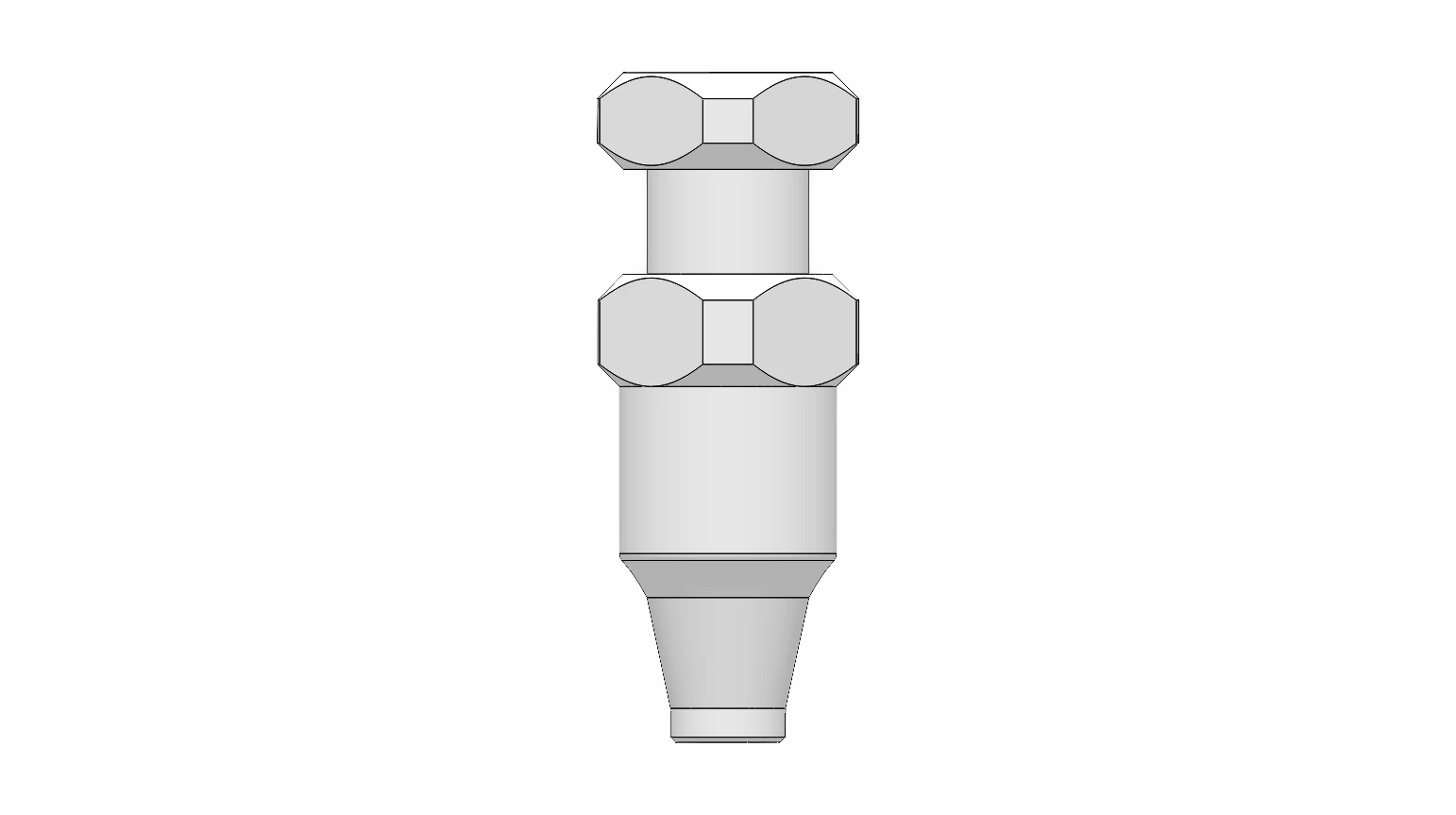

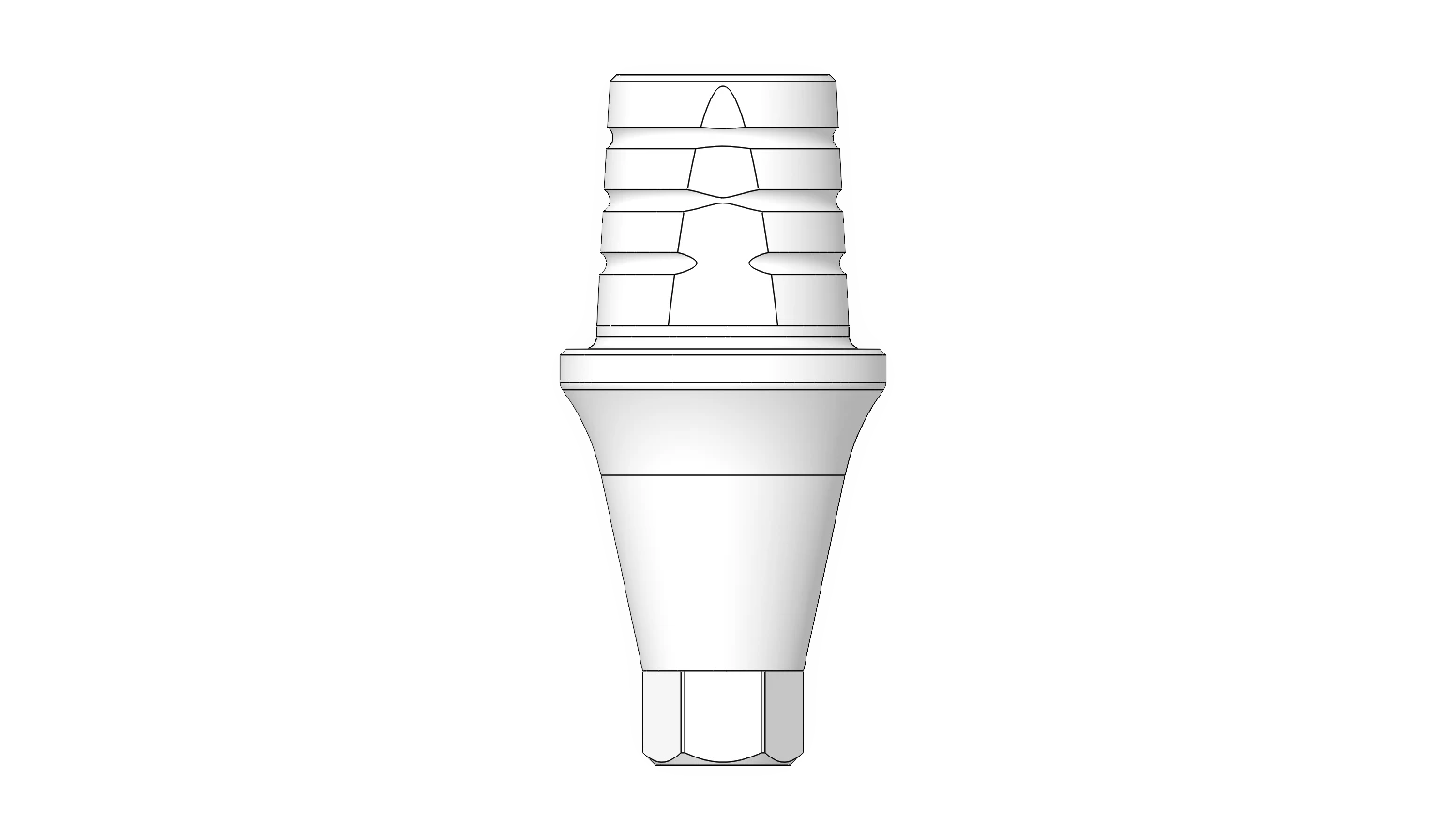

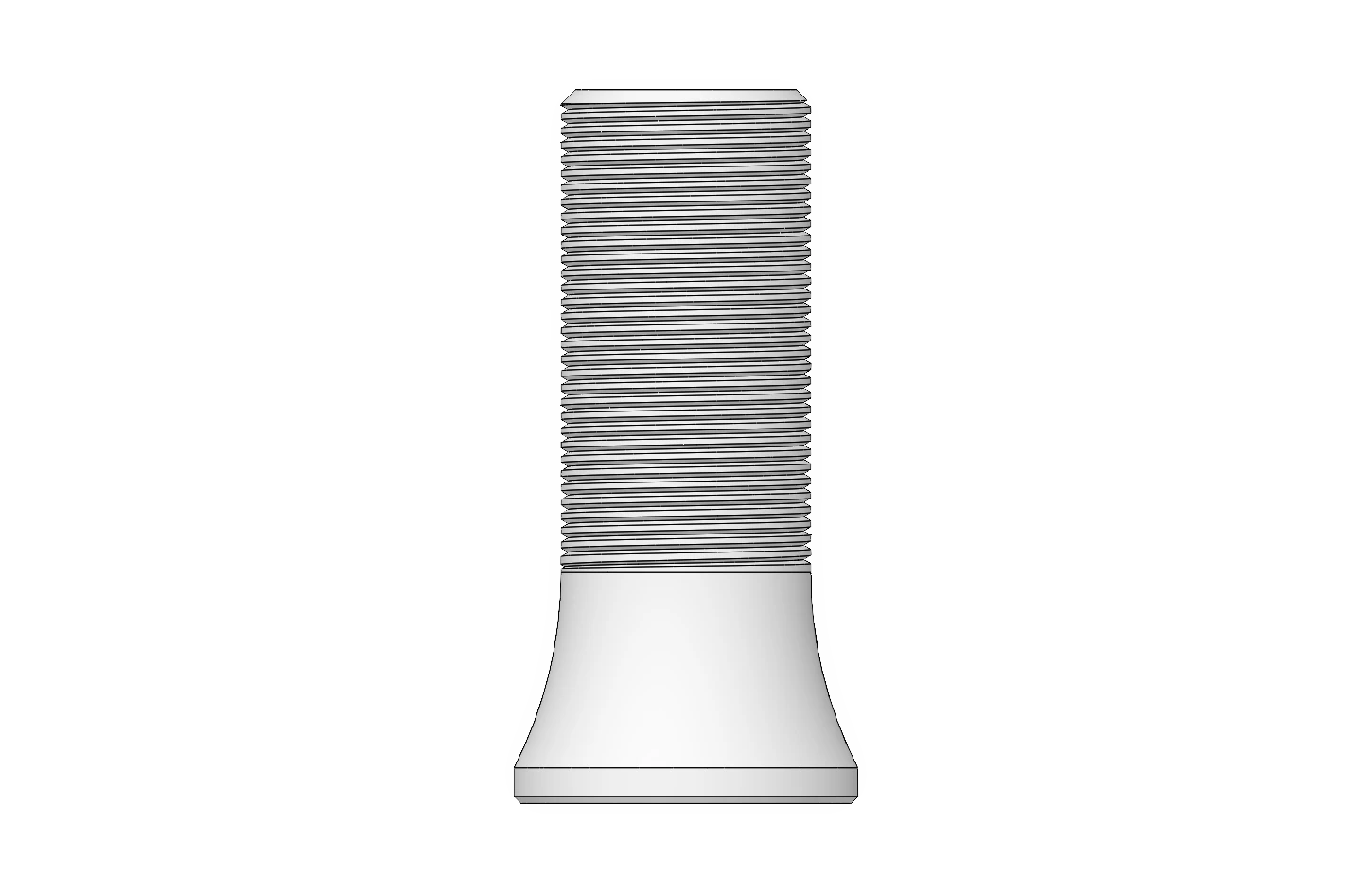

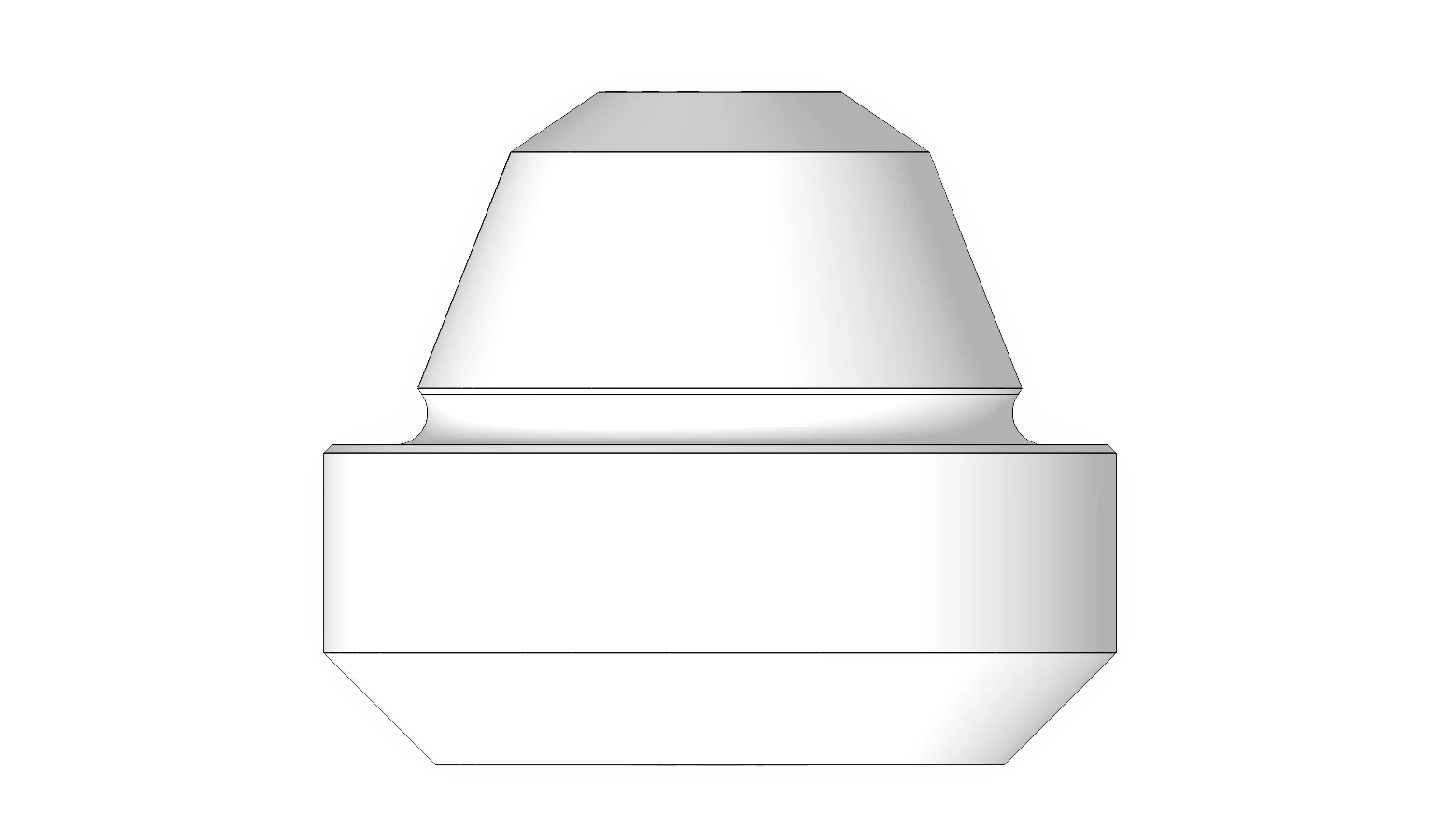

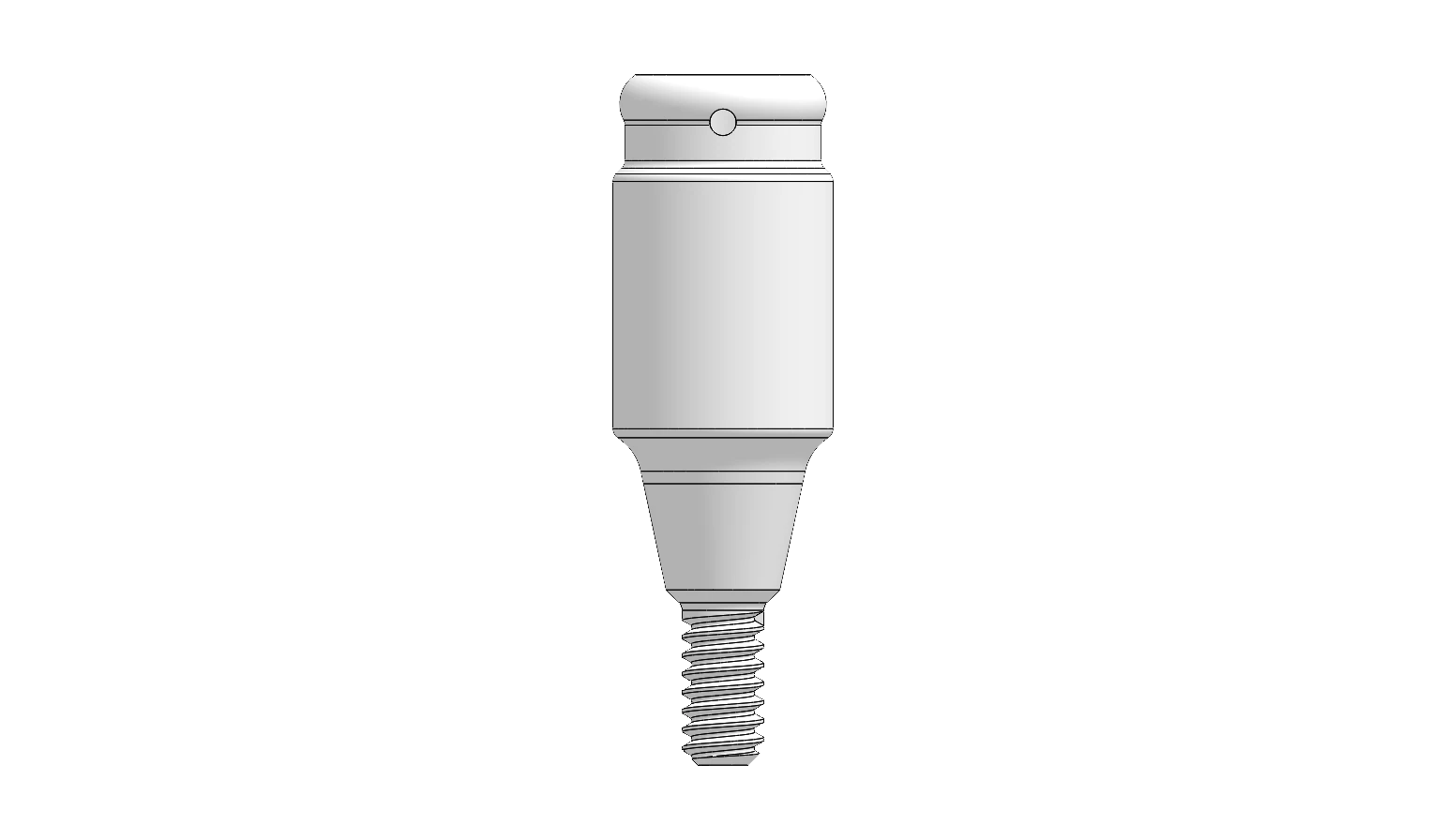

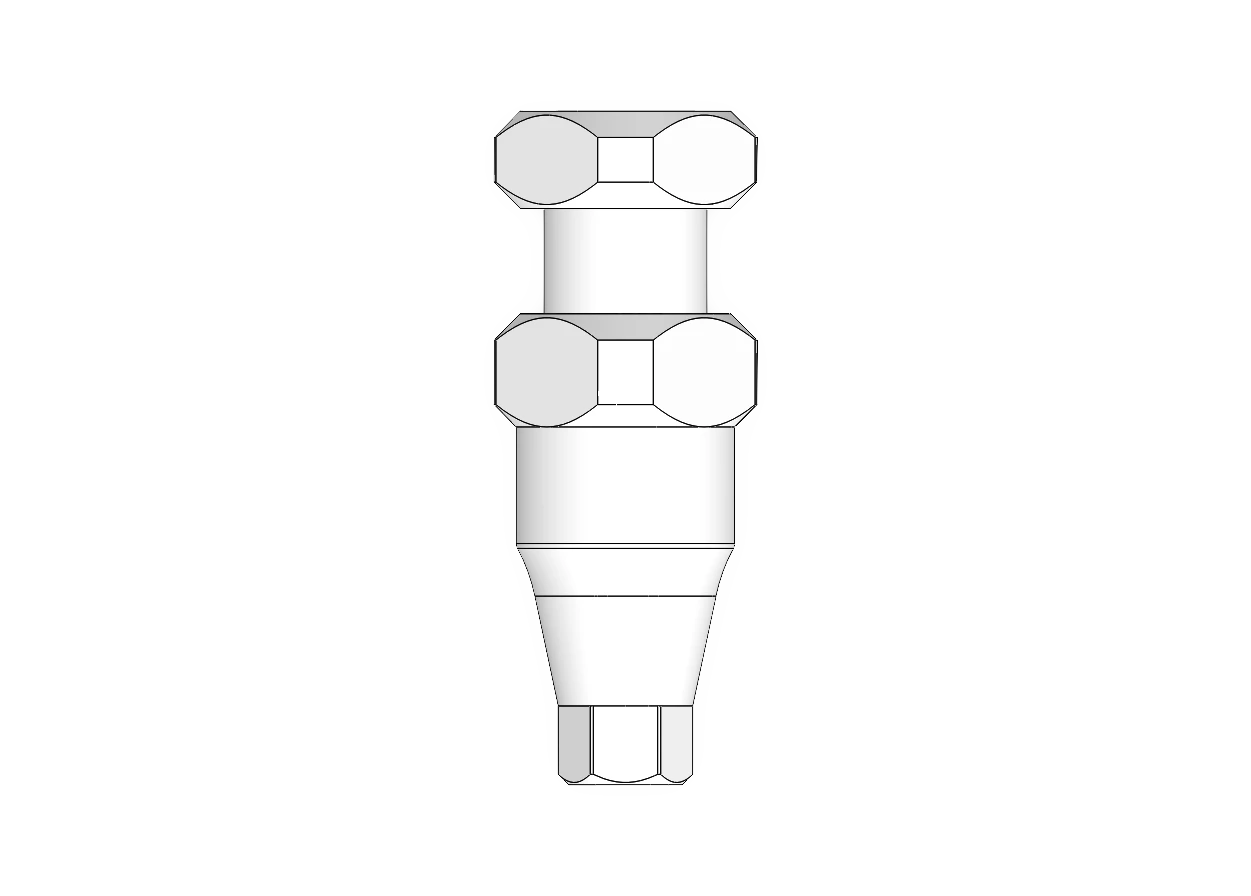

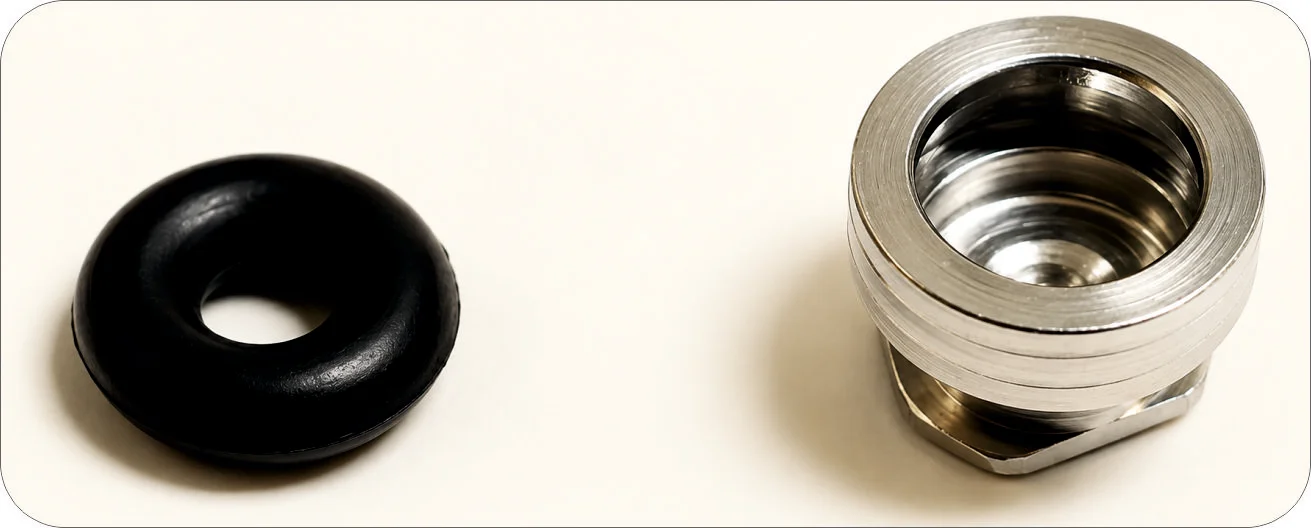

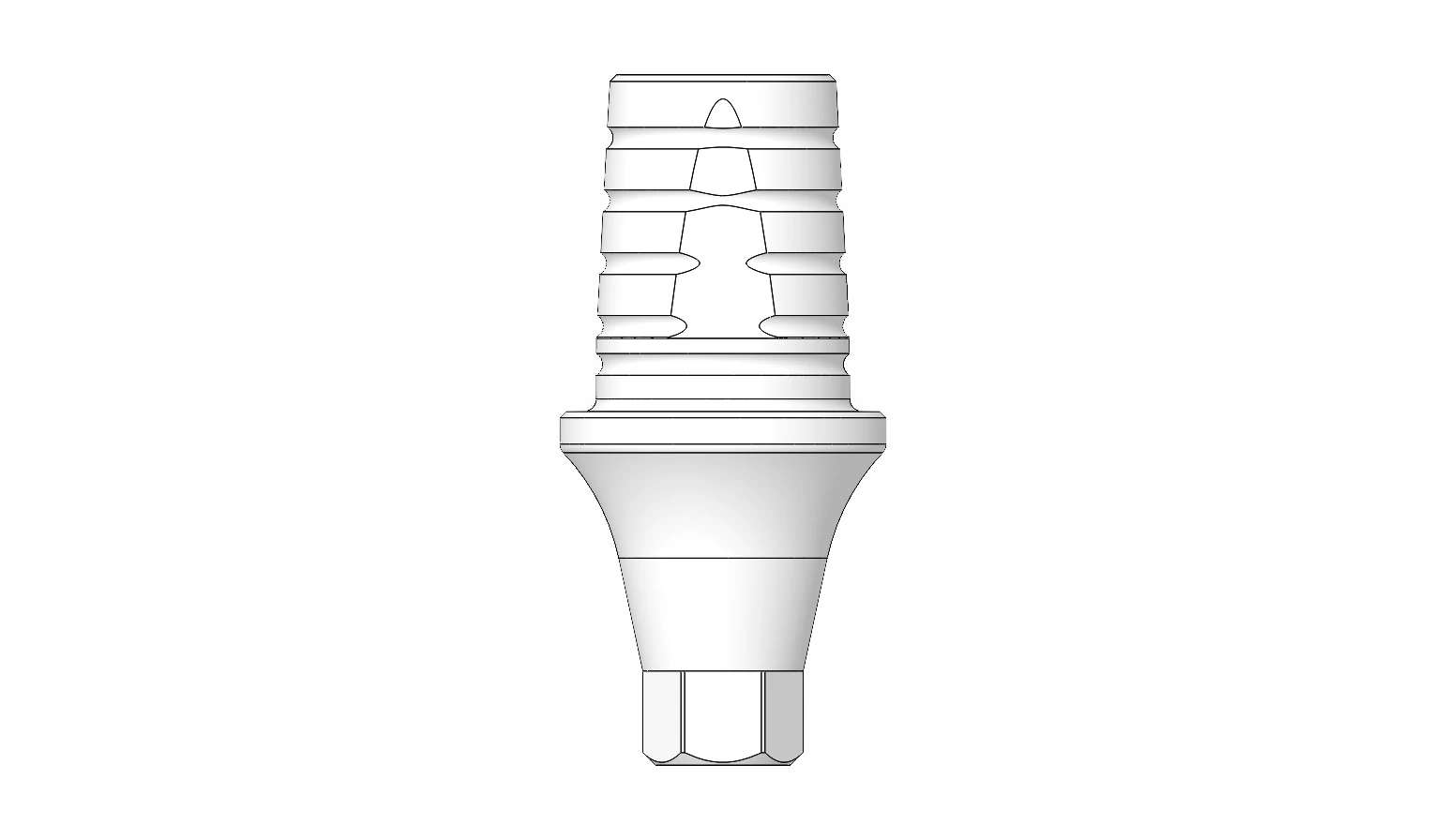

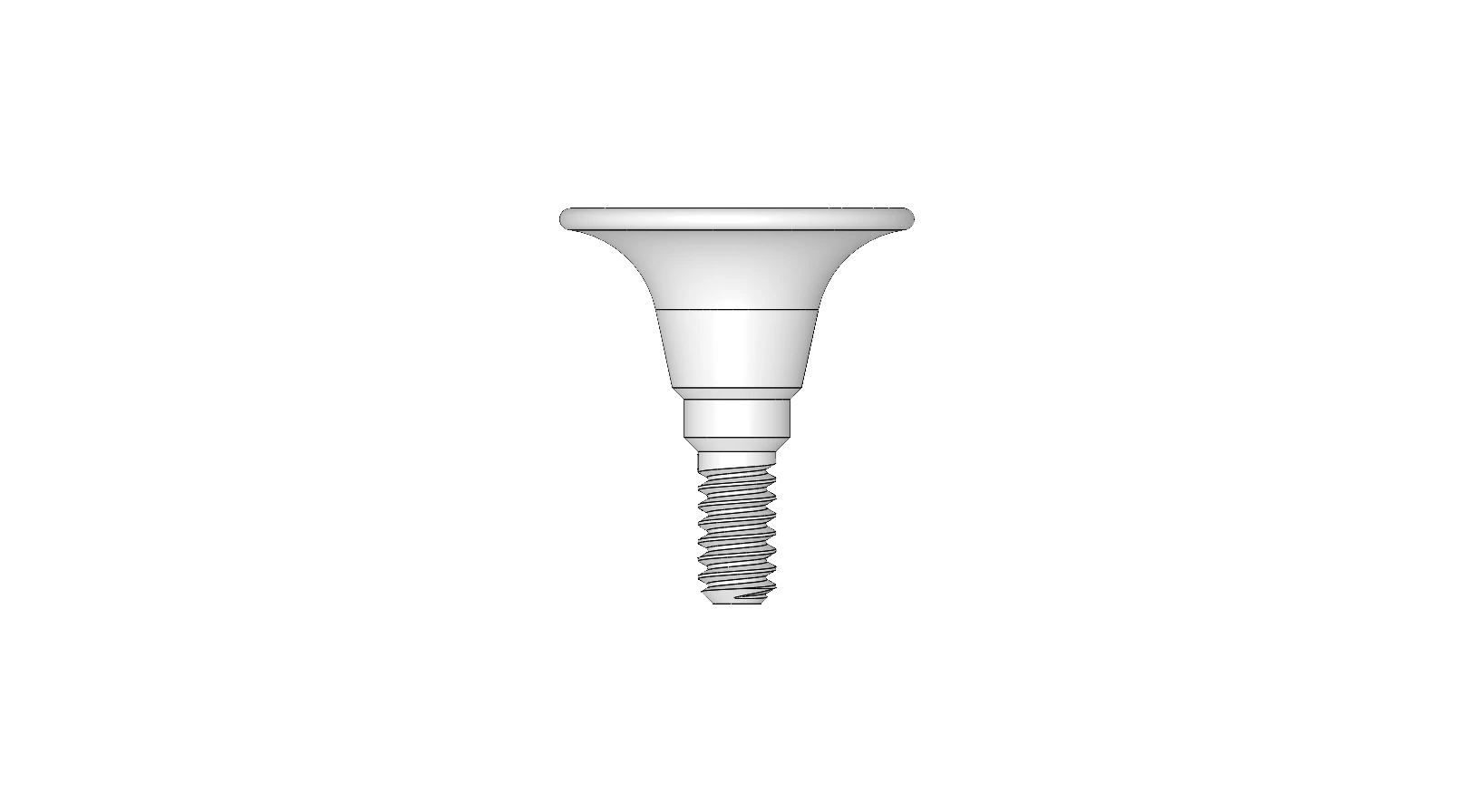

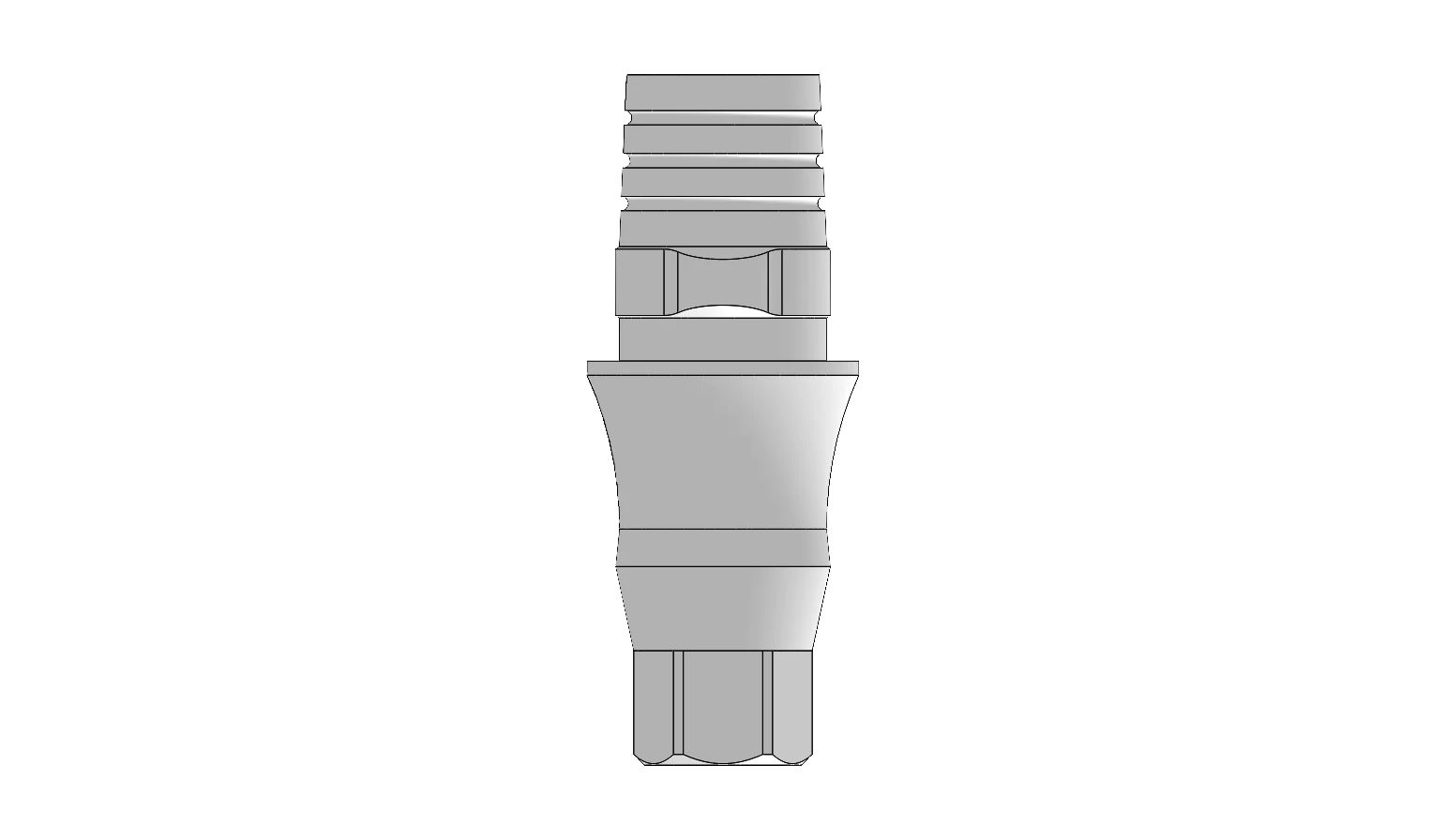

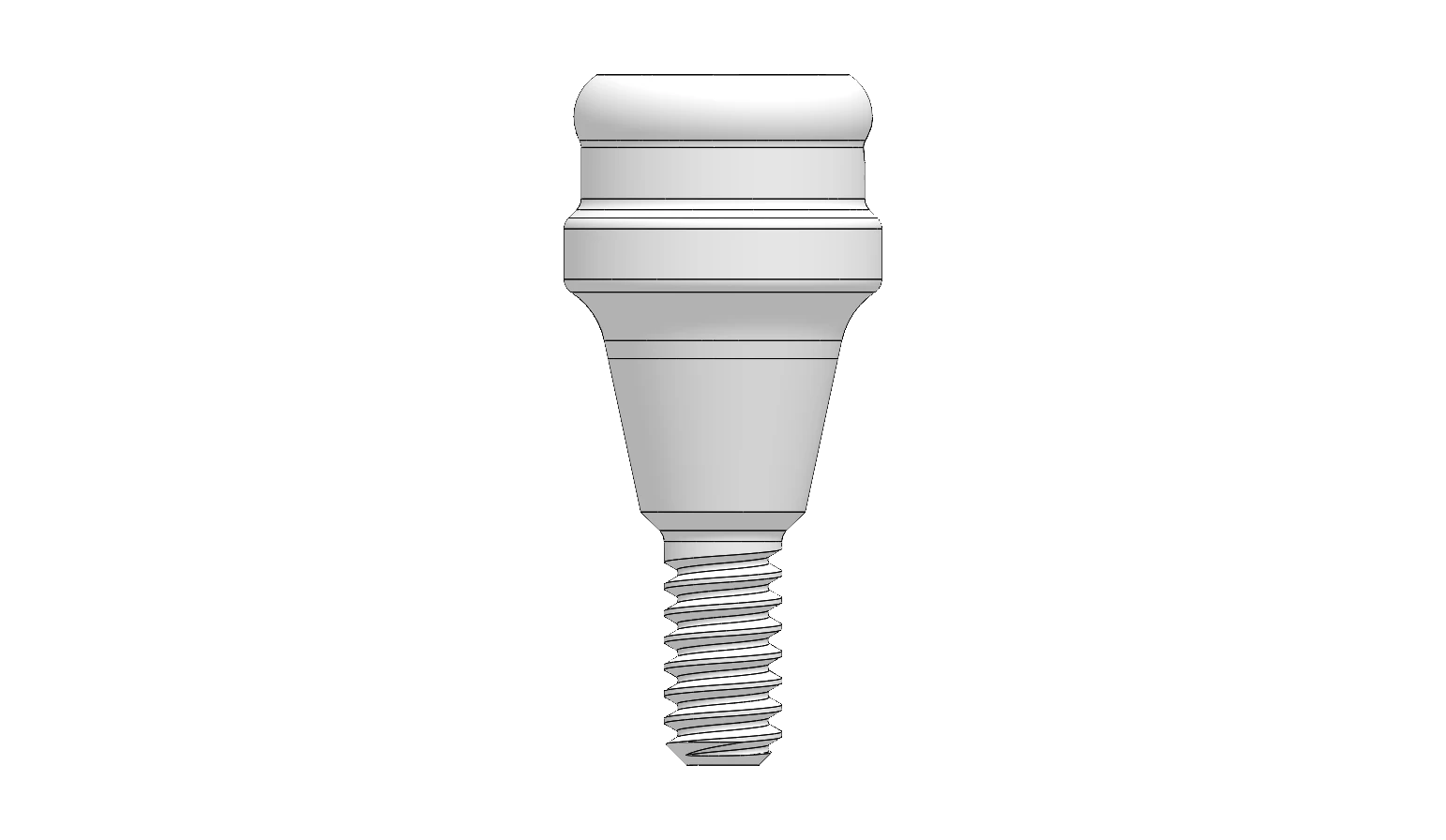

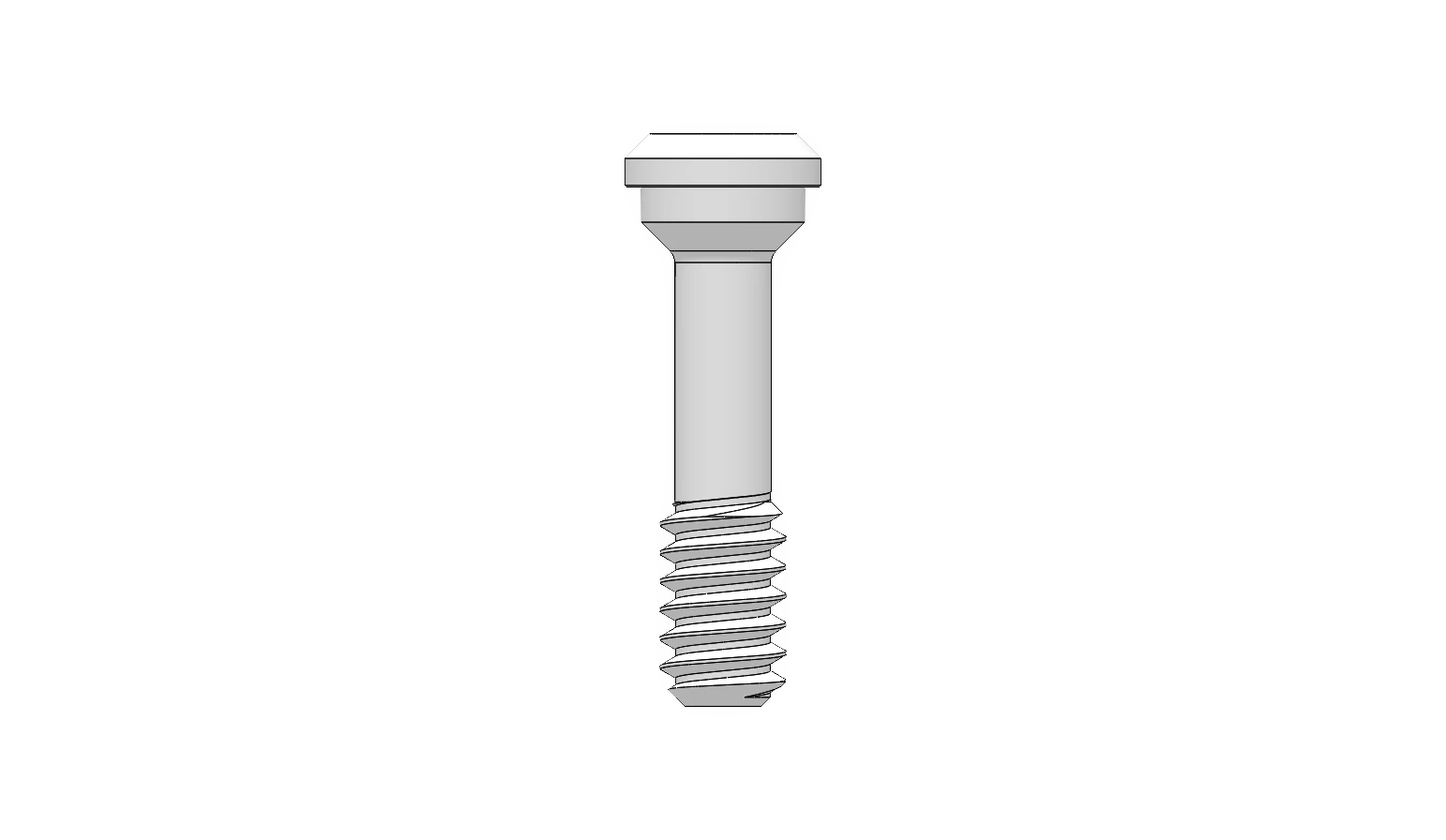

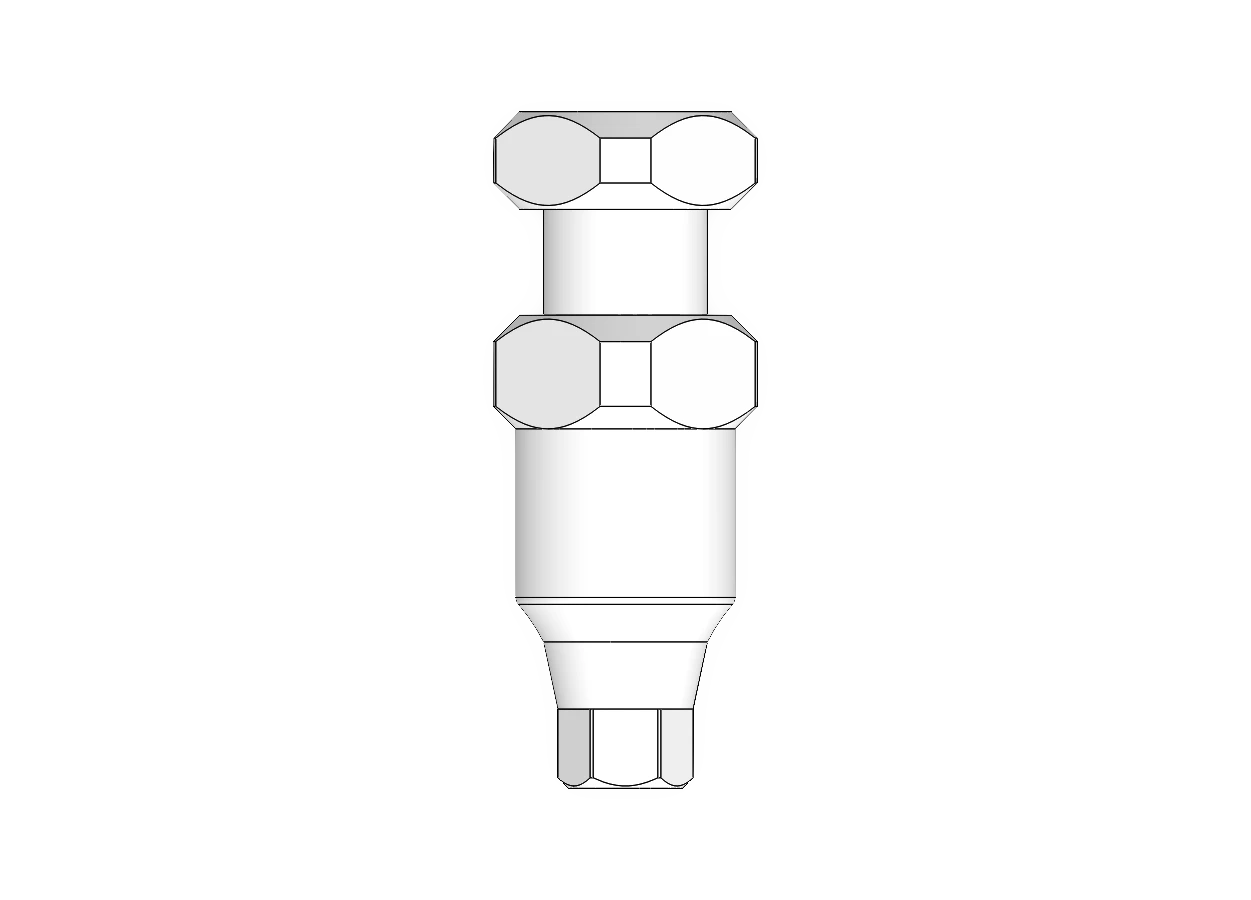

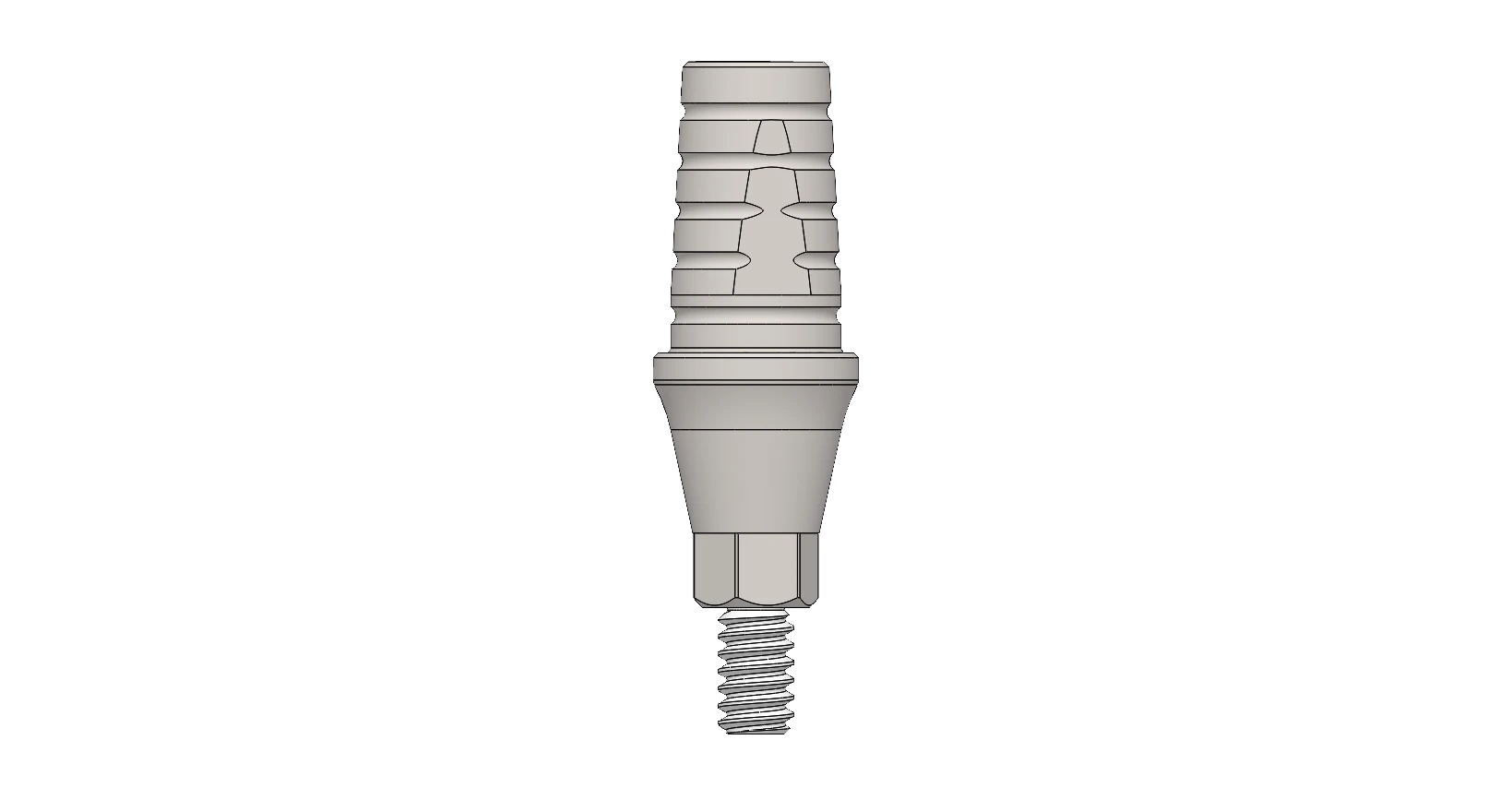

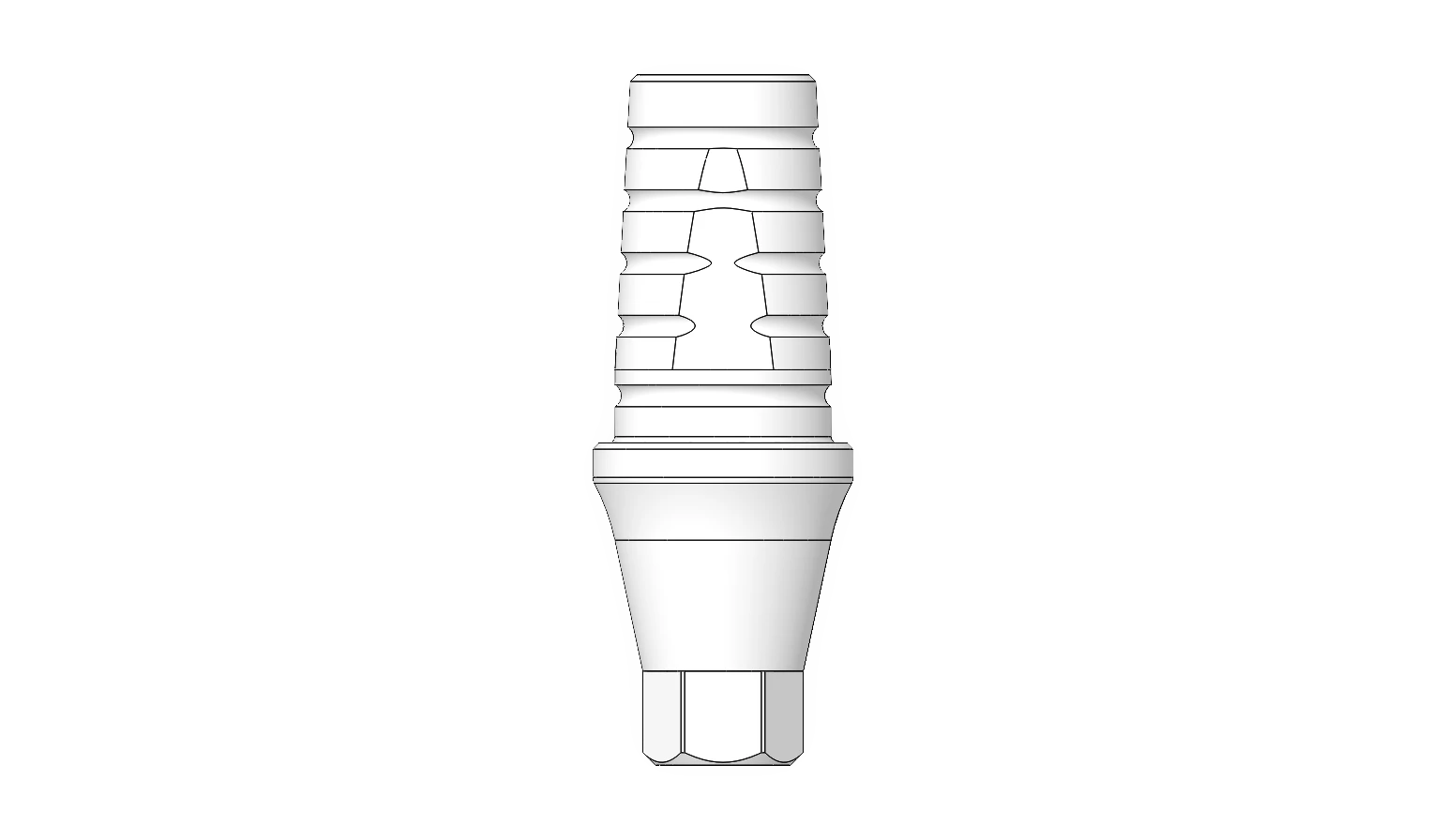

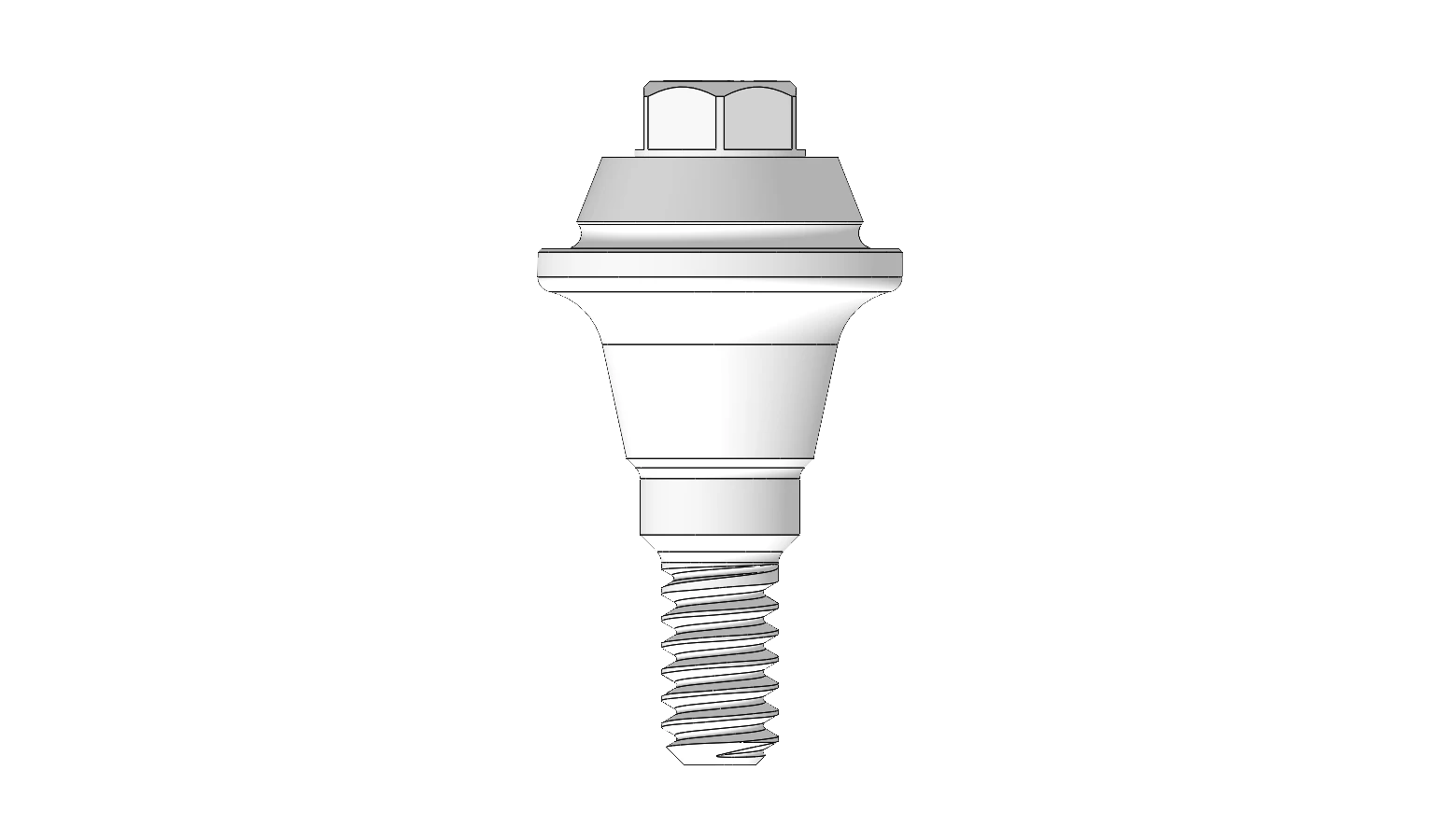

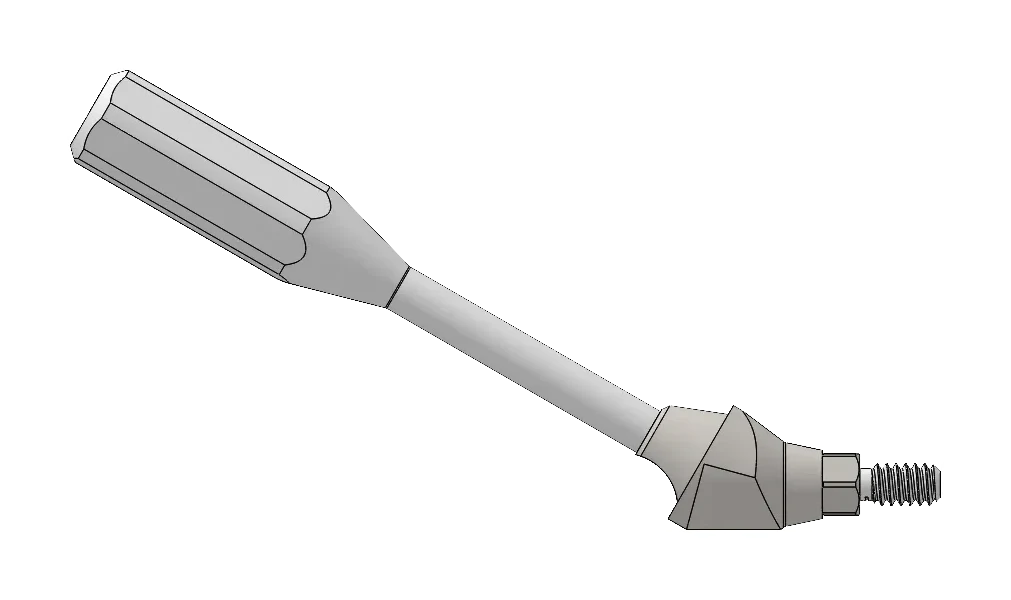

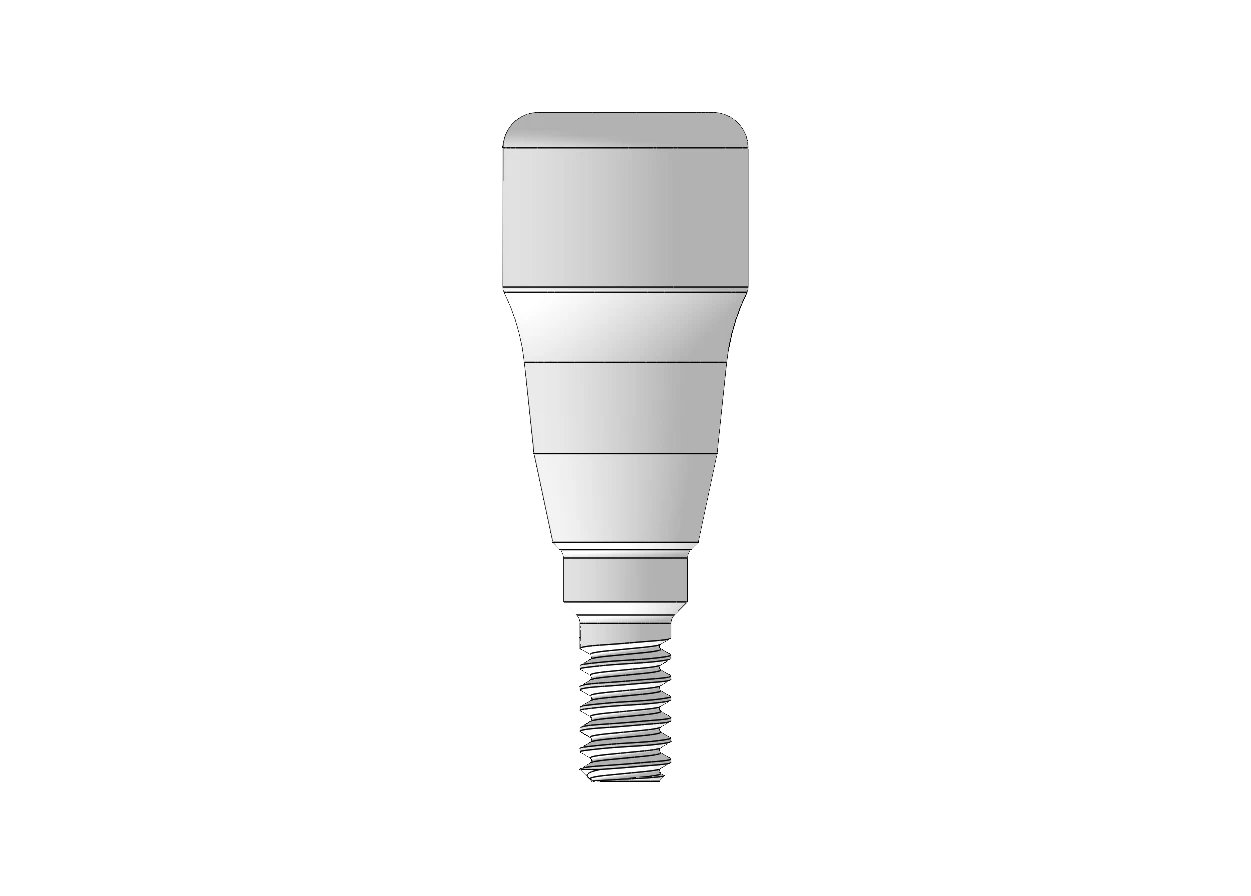

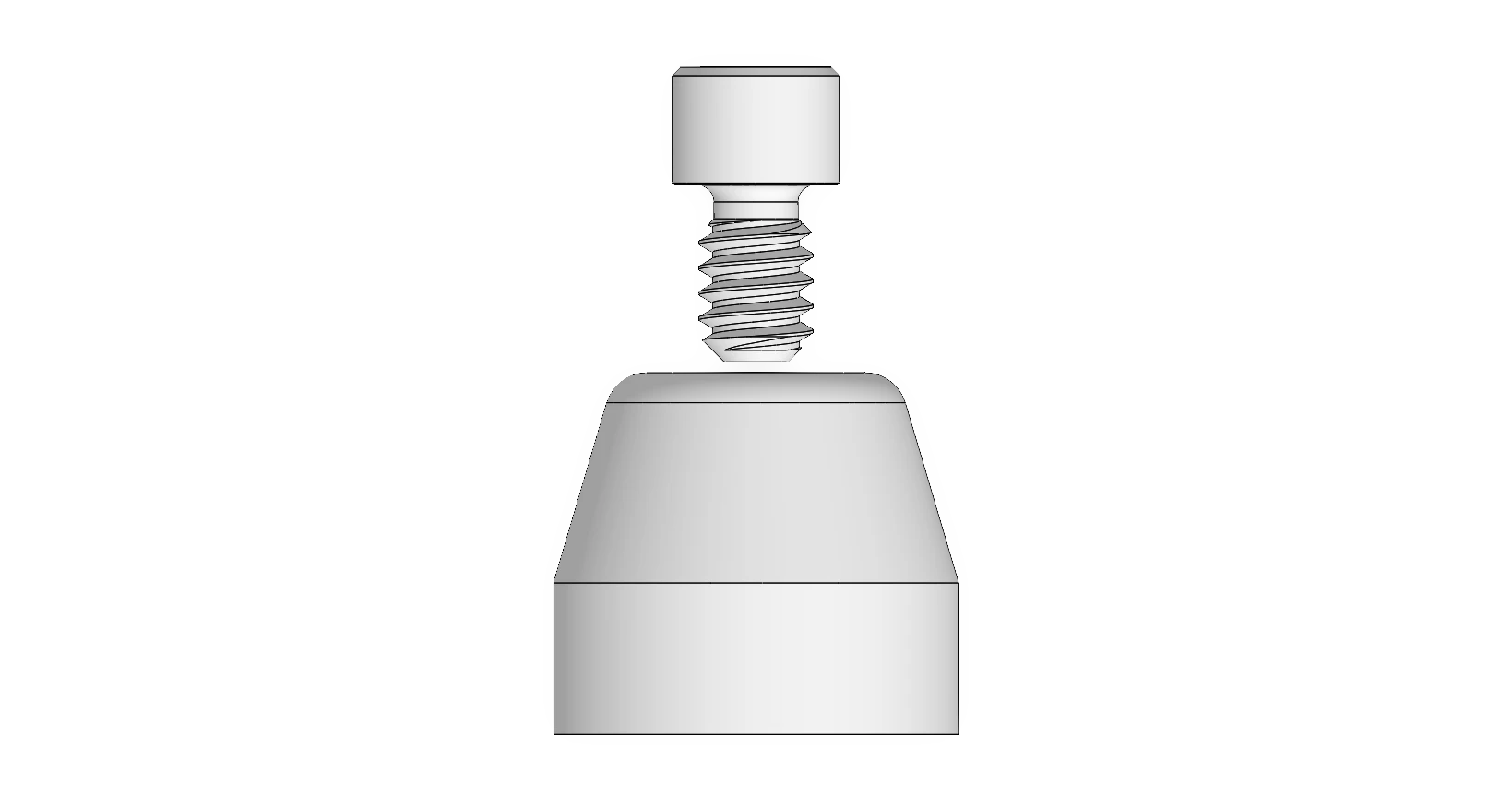

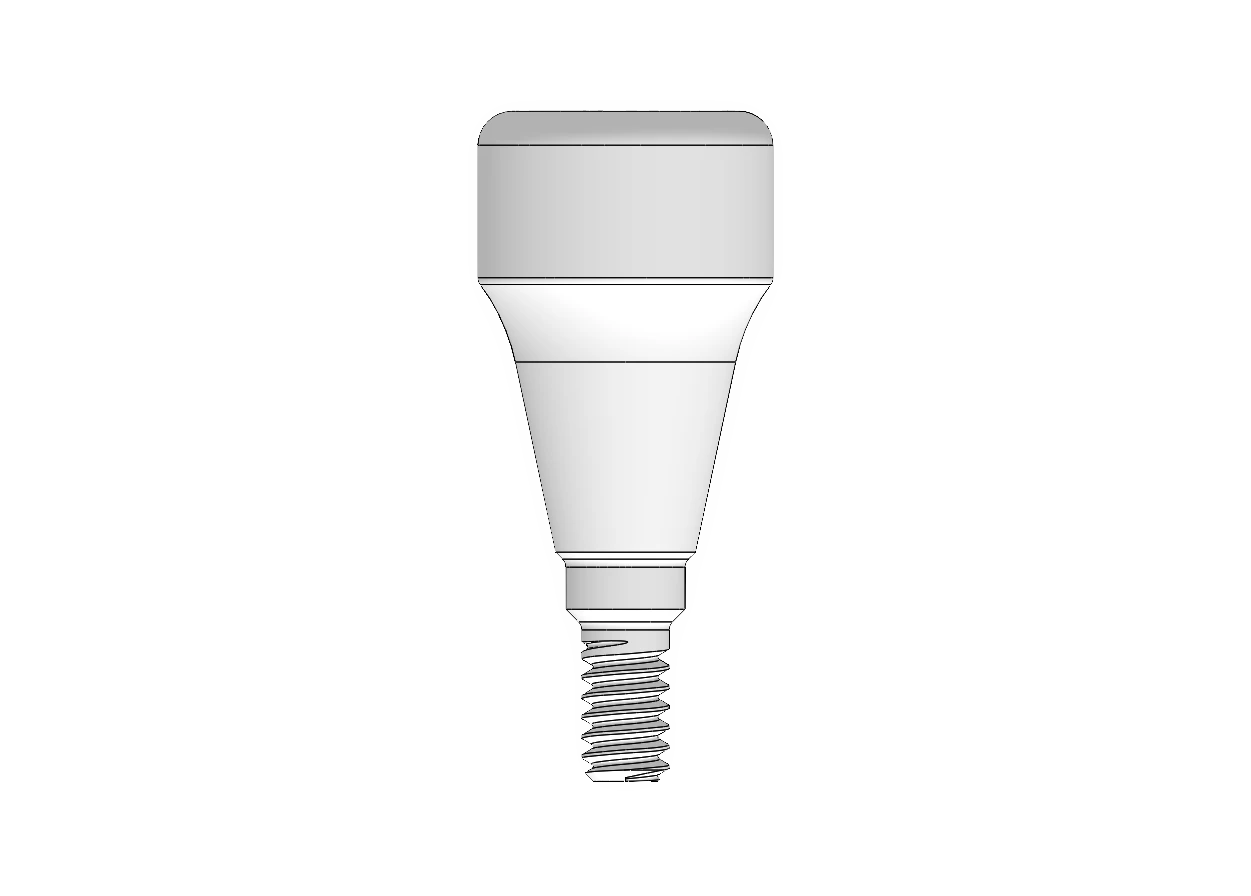

Multi-unit abutments, Single-unit abutments, Overdenture solutions, Healing, impression & temporary, Scan & digital workflow. Click any article code to copy it.
04 Design specification
Design features.
Expanding taper, two-start thread design with varying profile offers high primary stability, ideal bone condensing and adjustable implant orientation
Backtapered coronal region preserves maximum bone volume around the implant platform
Expanding tapered body attains high stability even in compromised bone situations
Twin cutting flutes ease insertion and bone transfer
Twin apical cutting blades facilitate insertion into minimally prepared sites

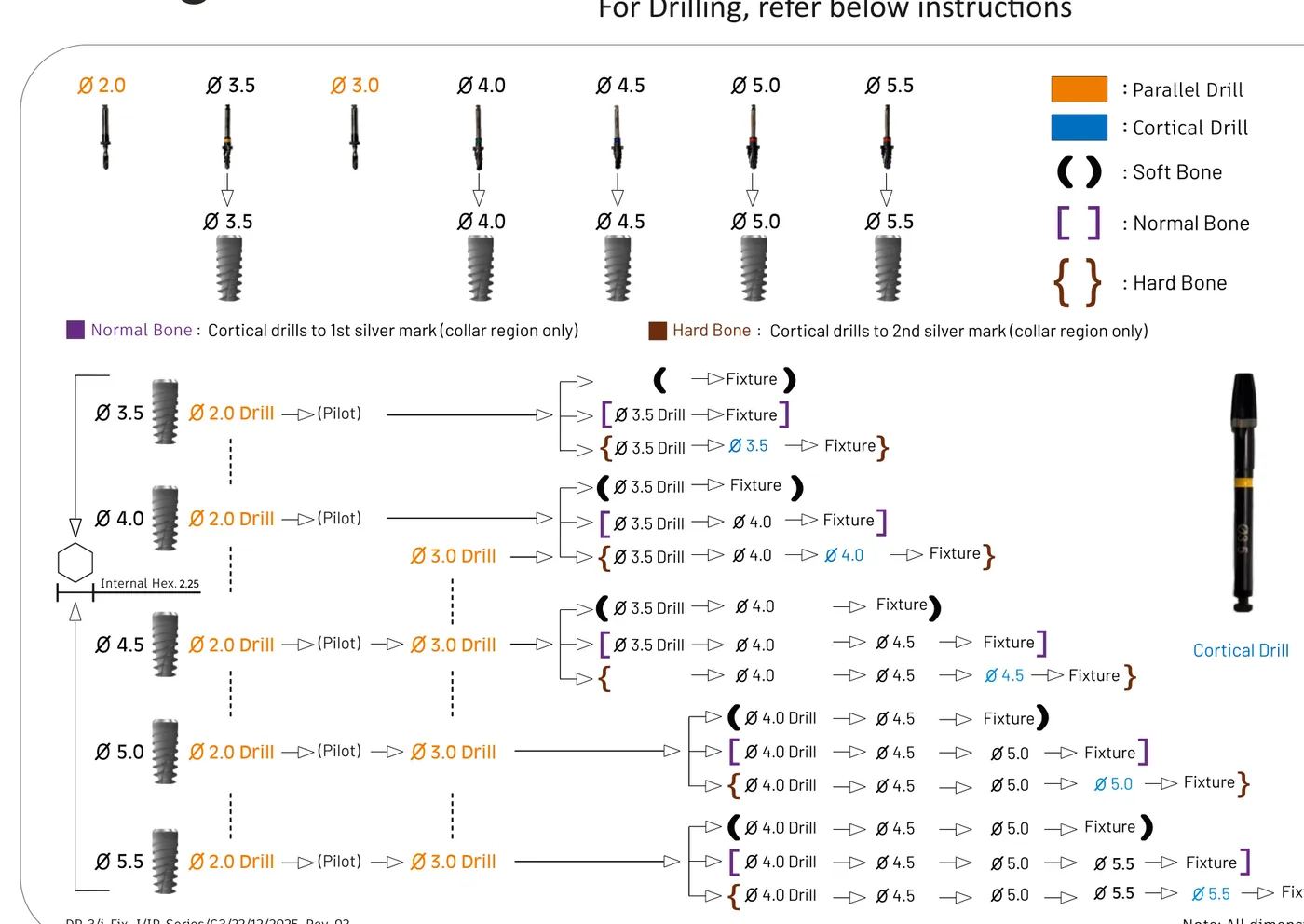

05 Kit & documentation
Kit & documents.
Verify the current catalog, IFU, indications and compatibility before clinical use.
06 Related series
Other implants.
All ASTM F136 ELI Grade 5 titanium alloy, each with its own surgical kit, catalog and IFU.
.webp)
07 Frequently asked
Before you order IP Series.
Ø 3.5–5.5 mm across 5 diameter options, in 8 lengths from 7.5 to 20 mm — 32 manufactured combinations, each with its article code in the catalog size matrix above.
Both are in the Kit & Documentation section above, with the catalog and IFU linked directly.
Components on the NP connection. The Restorative workflow section above lists every family — multi-unit abutments, single-unit abutments, overdenture solutions, healing, impression & temporary, scan & digital workflow — with each component's catalog article code.
Yes — linked directly in the Kit & Documentation section above.
