RP connection — internal hex Ø2.50mm implant–abutment connection, 11° Morse taper, M2.0 screw
i-Fix Bone-level implant system
S-Fix Pro
Also known as SP Series. An expanding-taper, two-start thread implant with a backtapered coronal region, twin cutting flutes and twin apical cutting blades — i-Fix’s S-Fix Pro system, also listed as the SP Series.
02 At a glance
S-Fix Pro spec sheet.
Catalog specification: an RP connection built on an M2.0 internal connection with a 2.50 mm A/F hex and an 11° Morse taper, machined from ASTM F136 ELI Grade 5 titanium and finished with the Sweden-developed Nano Bio Activated surface. Implants are supplied with a cover screw.
ConnectionRP connection
MaterialASTM F136 ELI Grade 5 titanium alloy
SurfaceNano Bio Activated surface (Sweden)
03 Catalog size matrix
Ø 3.6–6.0 mm
in 7.0–14 mm lengths.
24 manufactured combinations, each with its article code. Rows are diameters, columns are lengths in millimetres; a dash marks a combination the catalog does not list. Select any code to copy it.
| Ø (mm) | 7.0 | 8.0 | 10 | 12 | 14 |
|---|---|---|---|---|---|
| Ø 3.6 | — | ||||
| Ø 4.0 | |||||
| Ø 4.5 | |||||
| Ø 5.0 | |||||
| Ø 6.0 |
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). The implant is co-packed with its cover screw.
04 Restorative workflow
Prosthetic components.
Multi-unit abutments, Single-unit abutments, Overdenture solutions, Healing, impression & temporary, Scan & digital workflow. Click any article code to copy it.
05 Design specification
Design features.
Expanding taper, two-start thread design with varying profile offers high primary stability, gradual bone condensing and adjustable implant orientation
Backtapered coronal region preserves maximum bone volume around the implant platform
Expanding tapered body attains high stability even in compromised bone situations
Twin cutting flutes ease insertion and bone transfer
Twin apical cutting blades facilitate insertion into minimally prepared sites

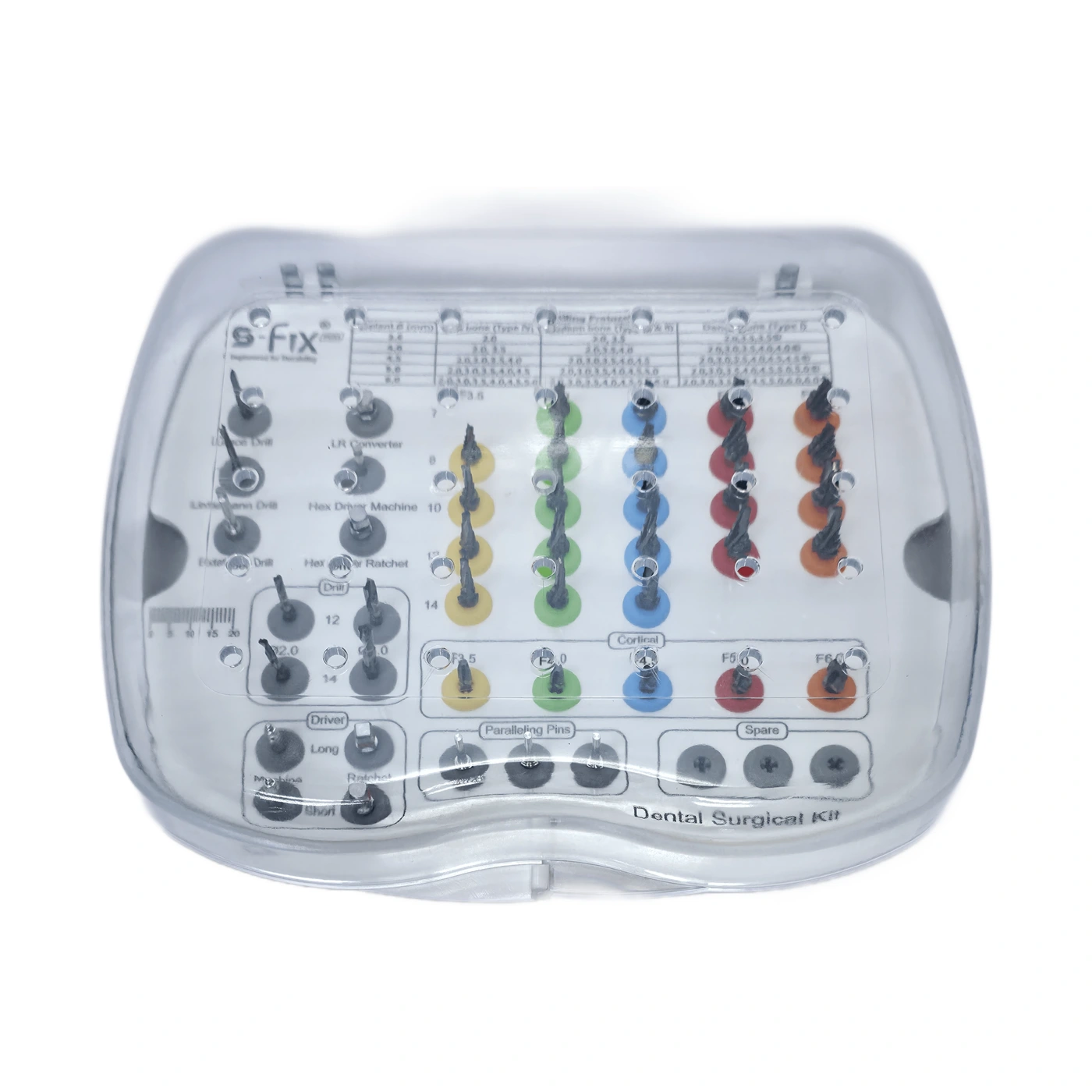

06 Kit & documentation
Kit & documents.
Catalog IXSP-BRC-03-13052026, Rev-01. Verify the current catalog, IFU, indications and compatibility before clinical use.
.webp)
08 Frequently asked
Before you order S-Fix Pro.
Ø 3.6–6.0 mm across 5 diameter options, in 5 lengths from 7.0 to 14 mm — 24 manufactured combinations, each with its article code in the catalog size matrix above.
Both are in the Kit & Documentation section above, with the catalog and IFU linked directly.
Components on the RP connection. The Restorative workflow section above lists every family — multi-unit abutments, single-unit abutments, overdenture solutions, healing, impression & temporary, scan & digital workflow — with each component's catalog article code.
Yes — linked directly in the Kit & Documentation section above.
Need more detail on the S-Fix Pro?
Technical, documentation and pricing enquiries reach the manufacturing team directly.
