i-Fix Instrumentation
Surgical Kit Instruments
Every drill, driver and measuring instrument inside an i-Fix surgical kit, shown one by one and available to order. Choose a kit to open it.
01 Kit by kit
Surgical Kits and Their Instruments
155 instruments are published so far across 6 kits, and each can be added to your order. The remaining kits will be added here.
For IP Series implants

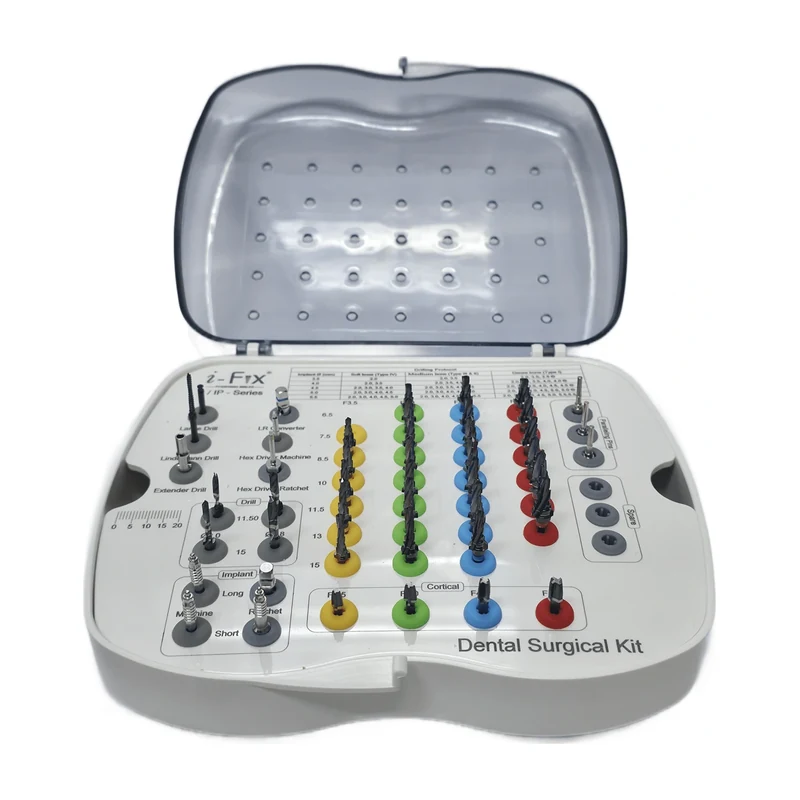

IP Series Premium Surgical Kit
Article code MSK03

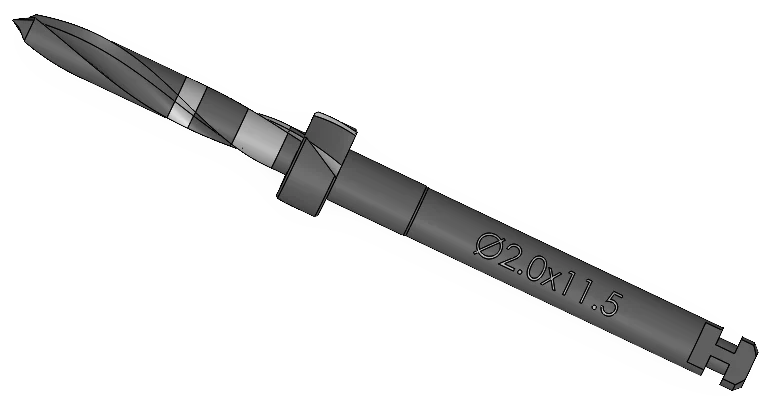

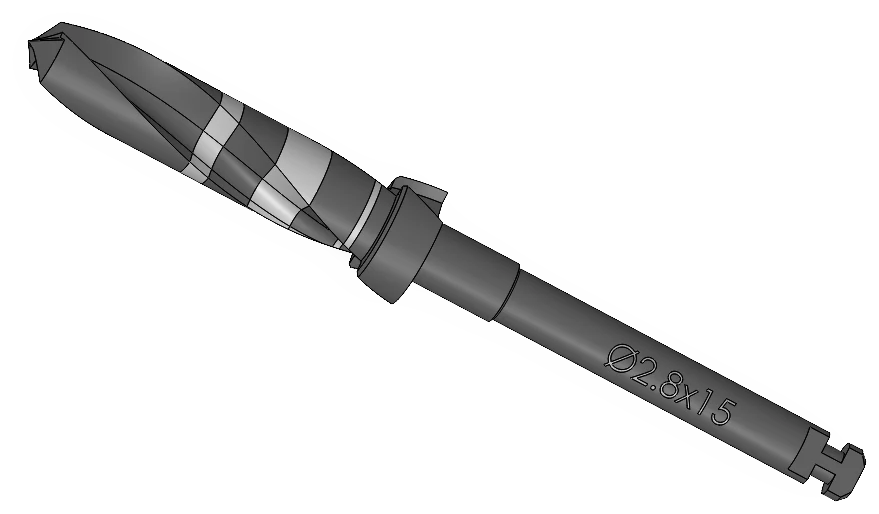

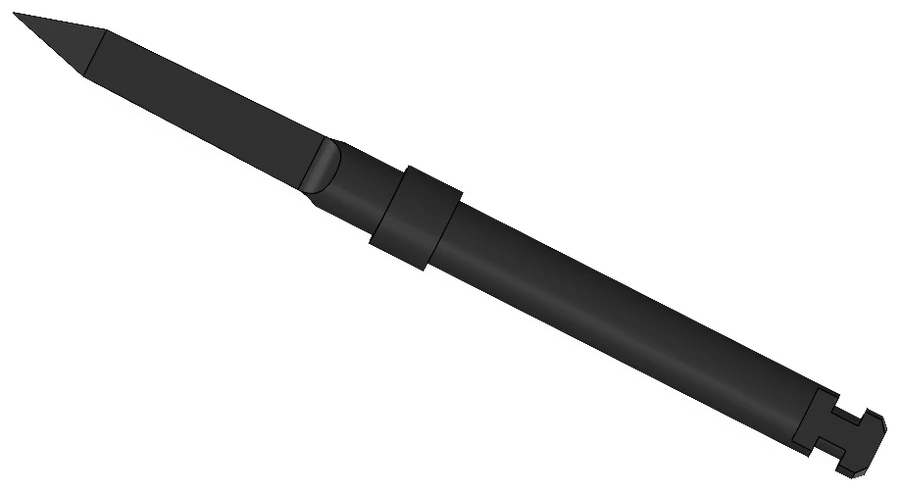

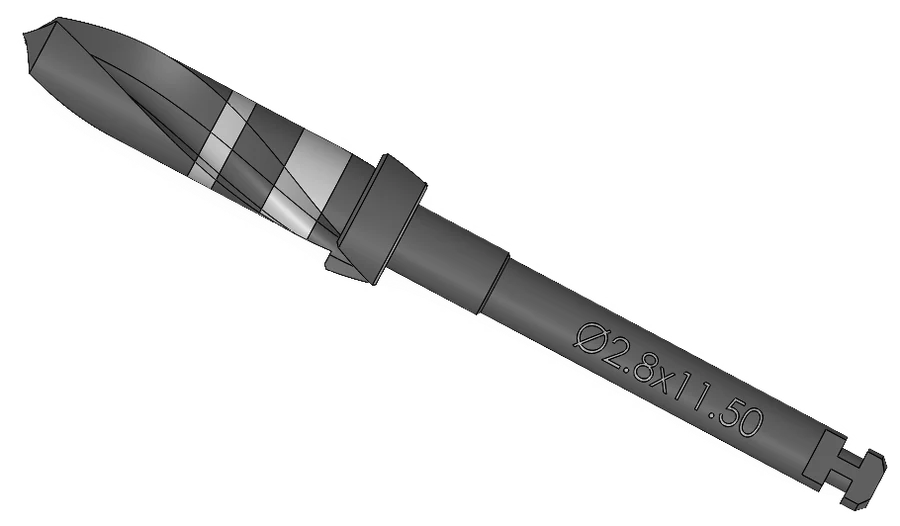

Lance, Lindemann and Pilot Drills 6
The first drills into the site, which set the position and direction of the osteotomy.

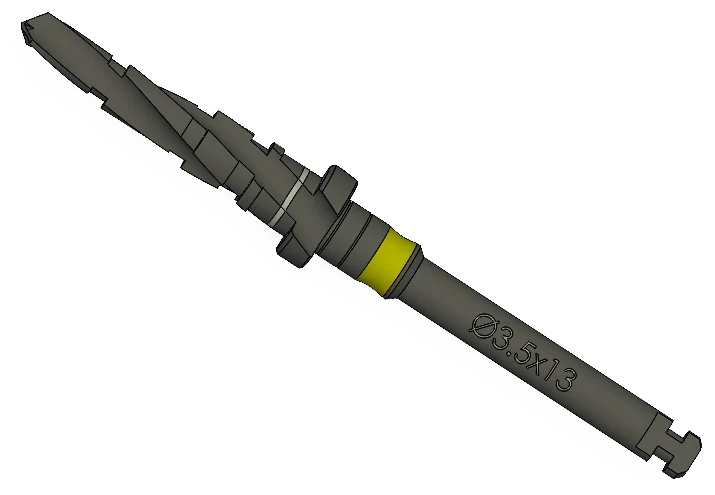

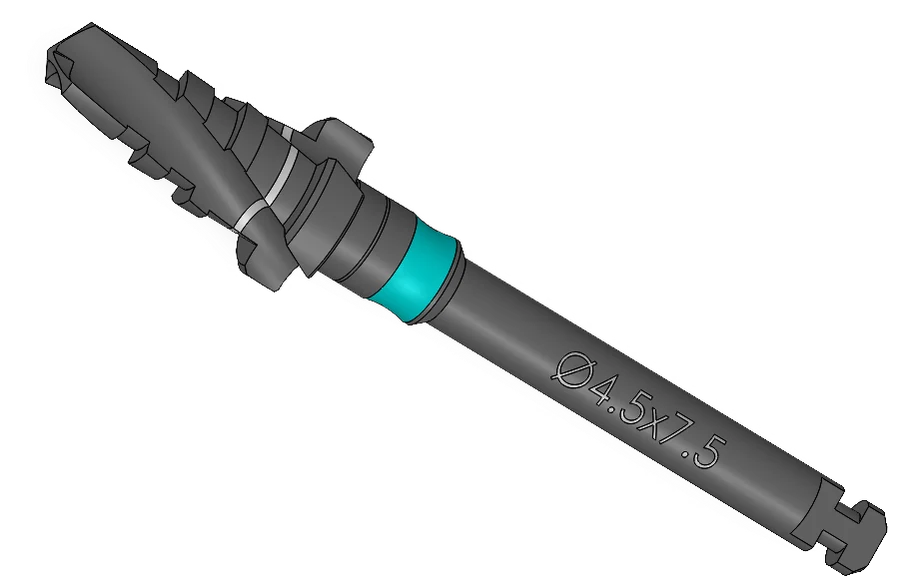

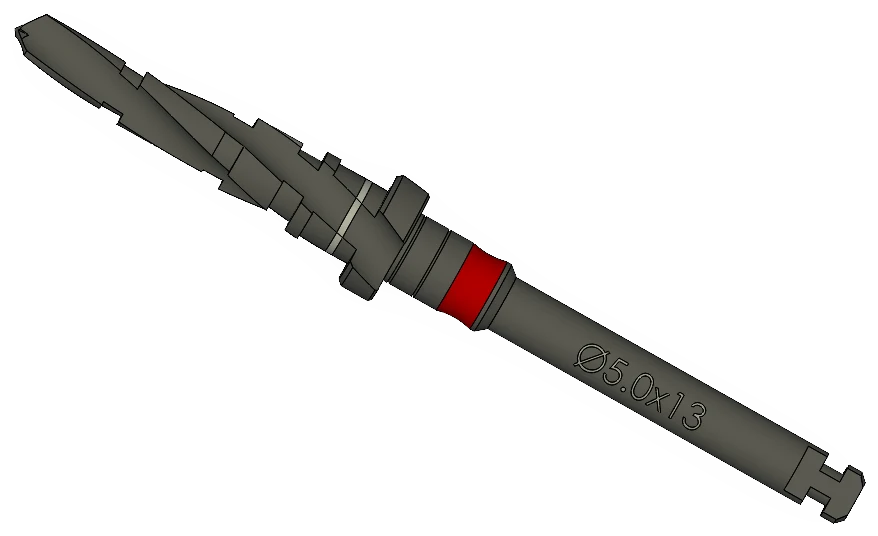

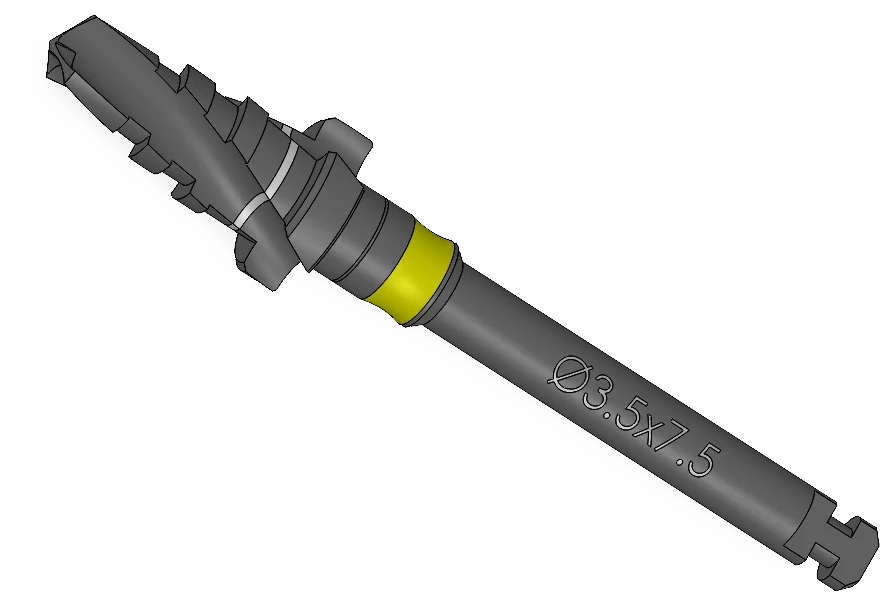

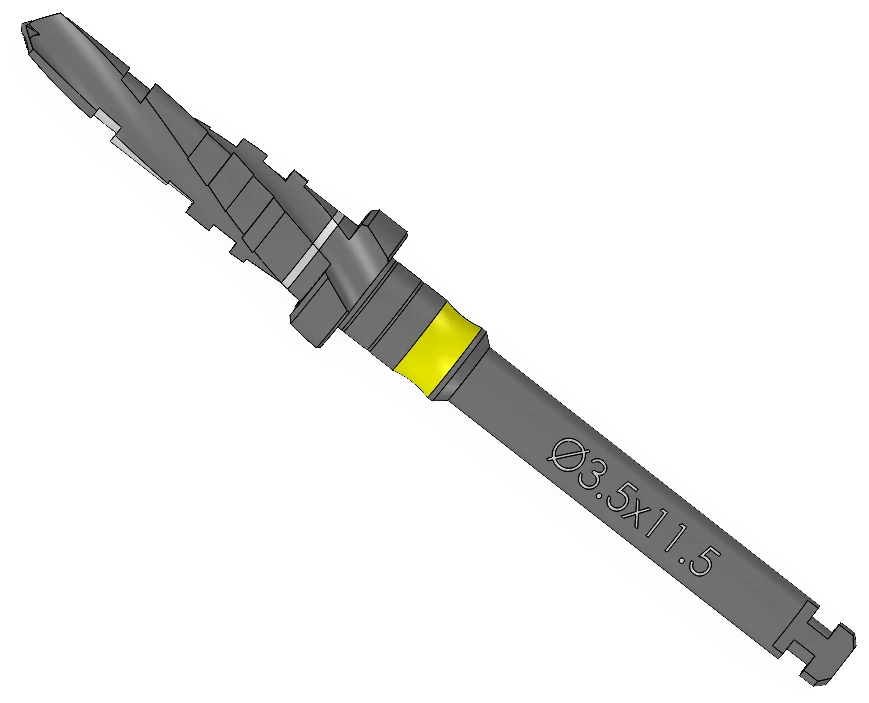

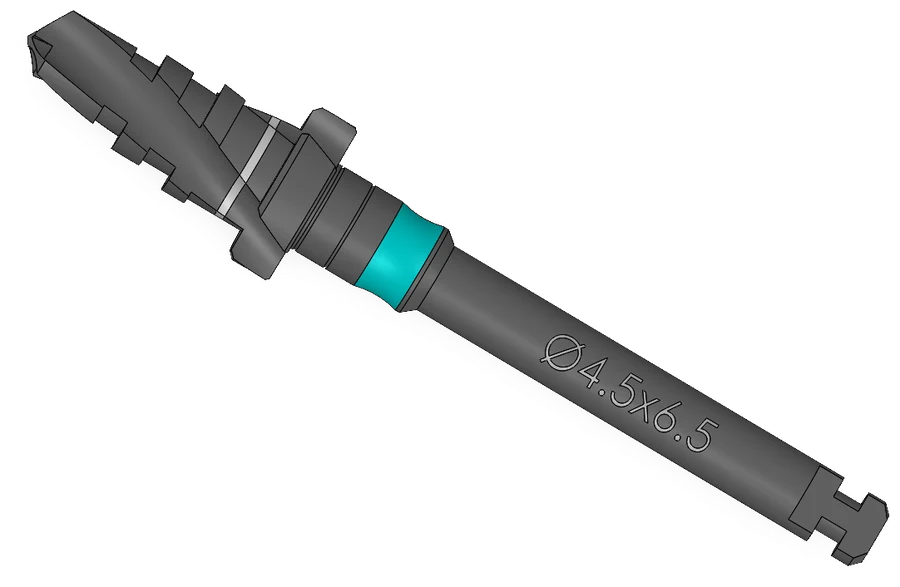

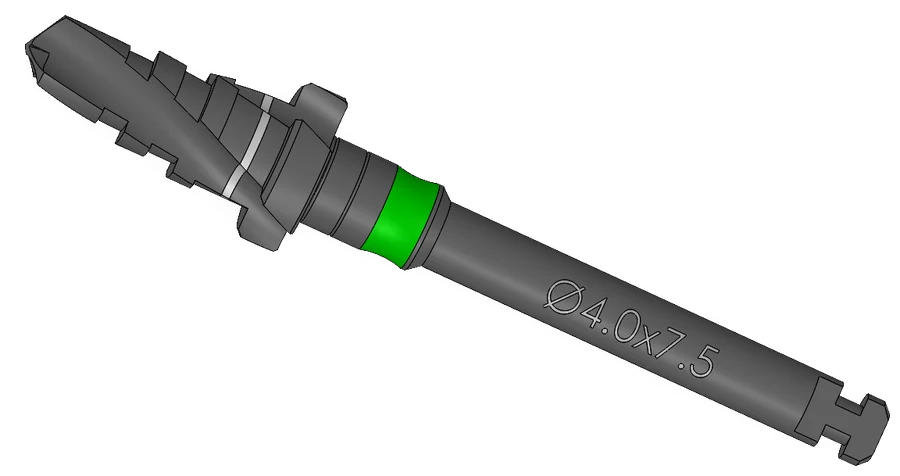

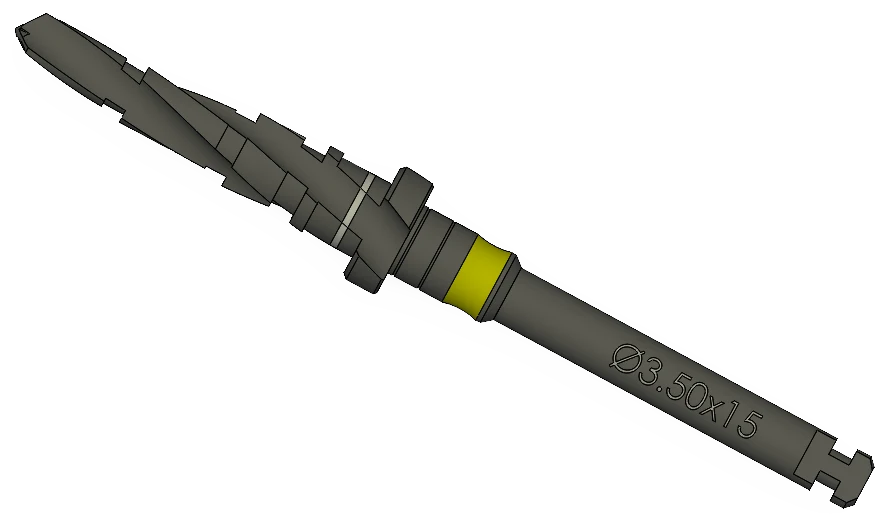

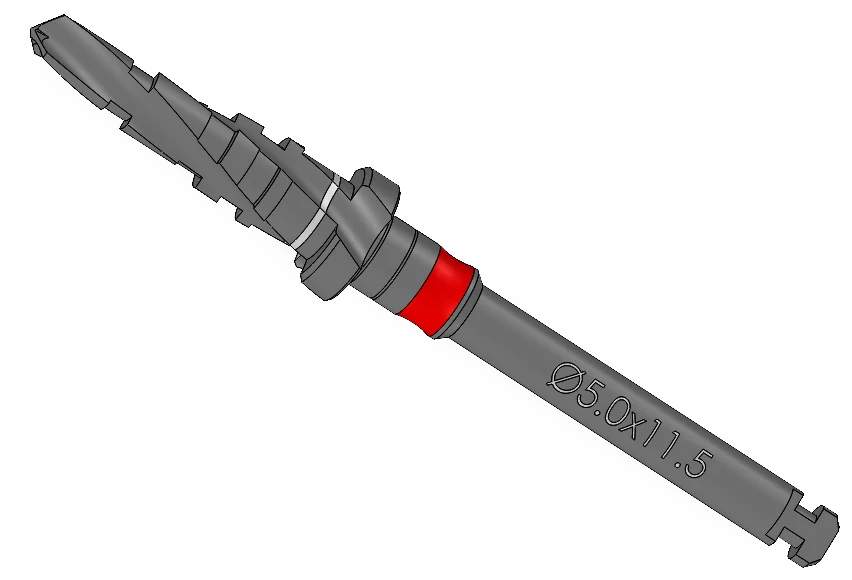

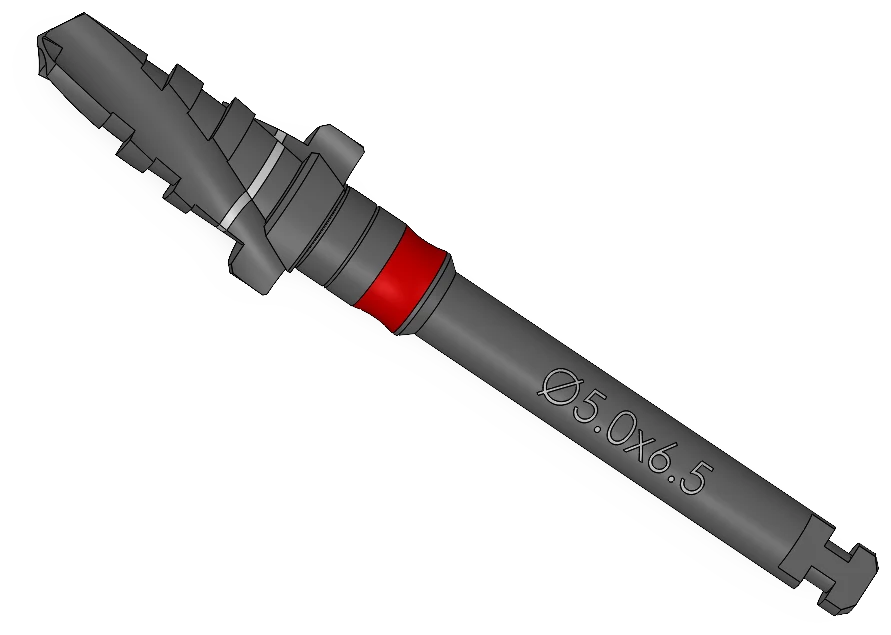

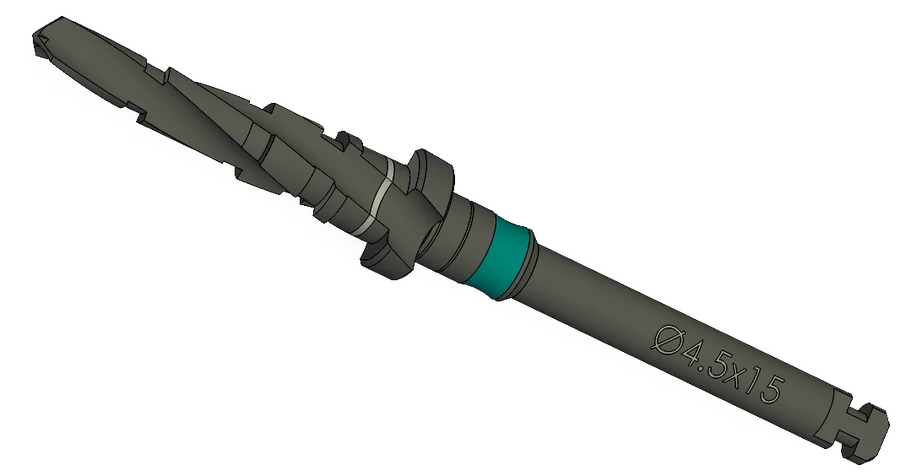

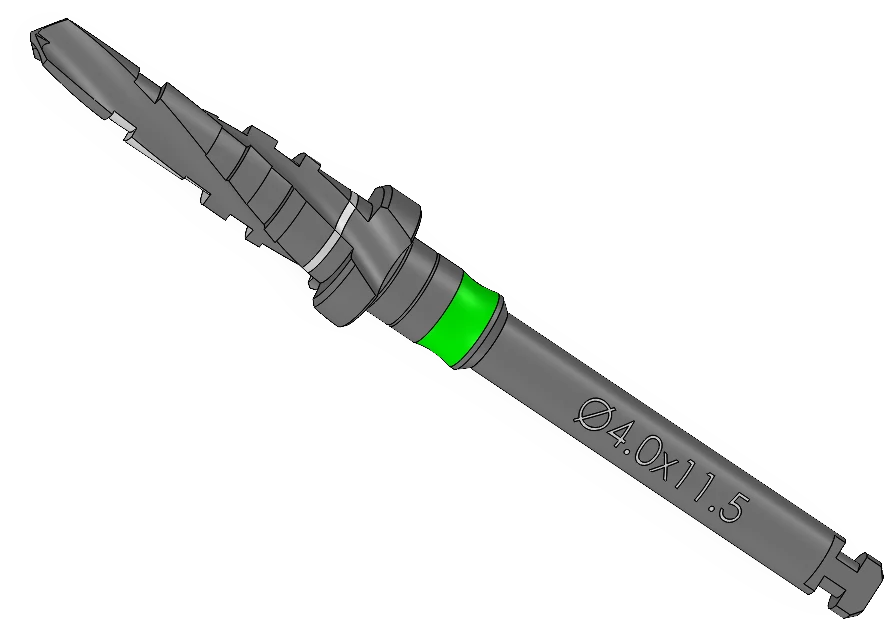

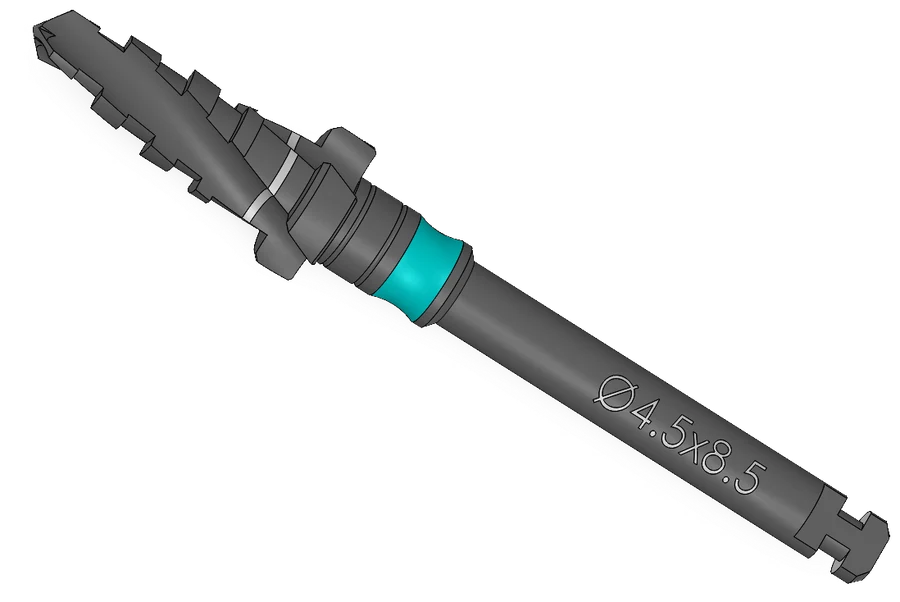

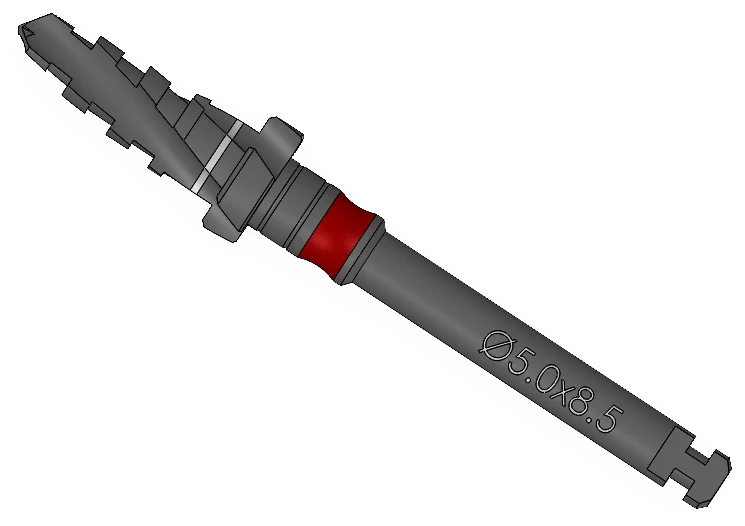

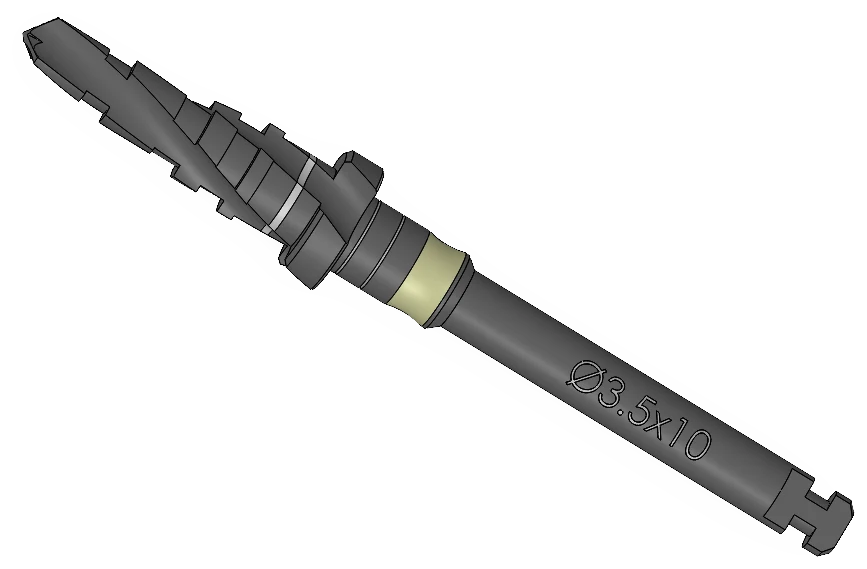

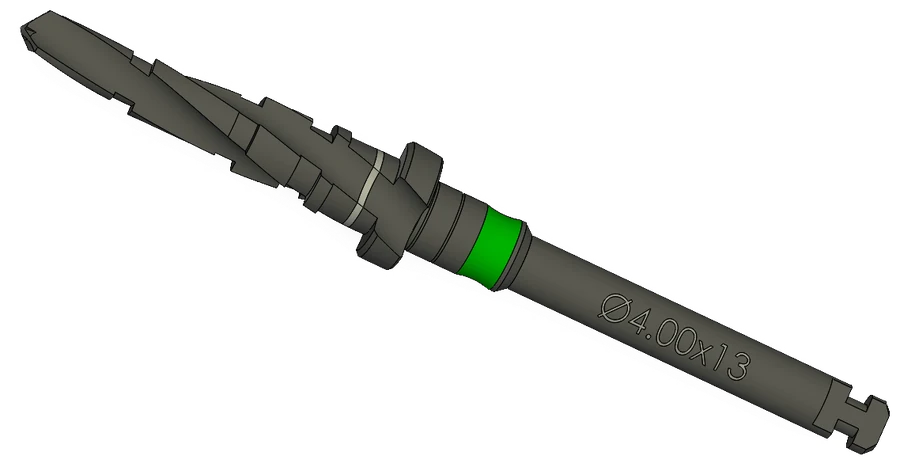

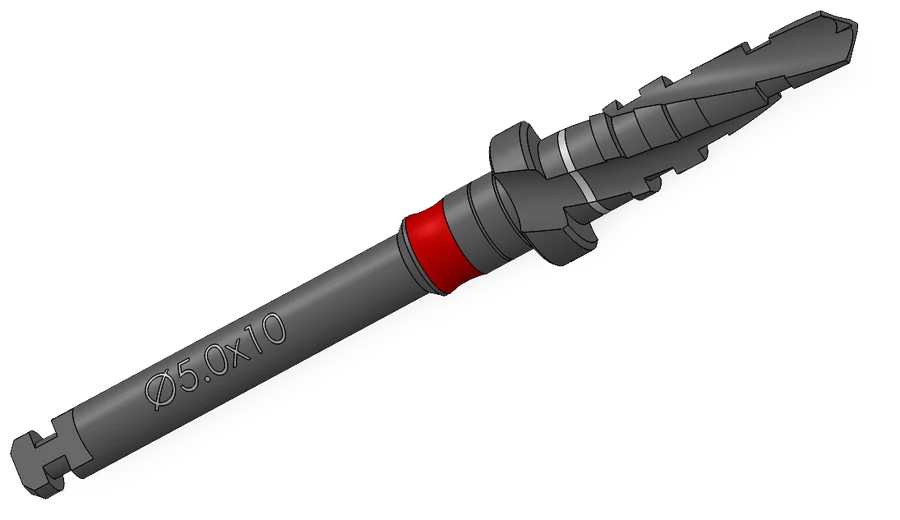

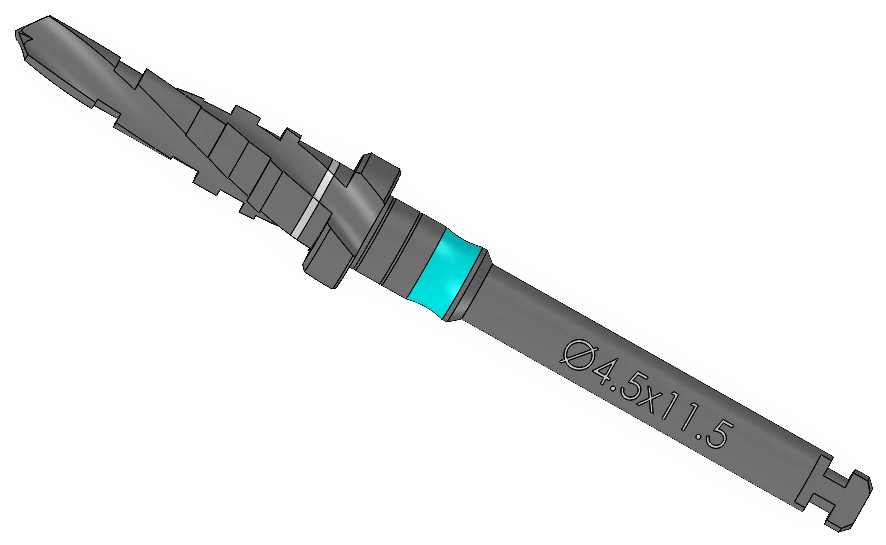

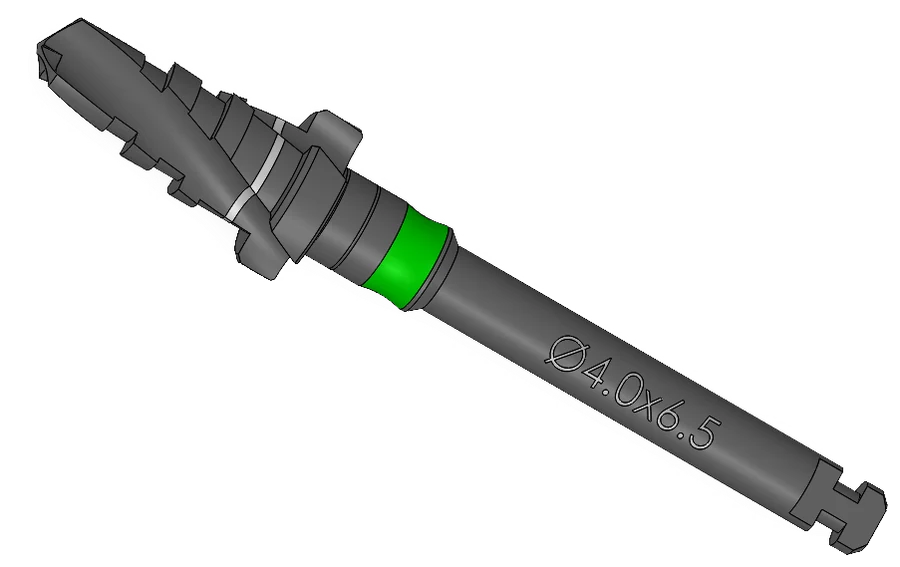

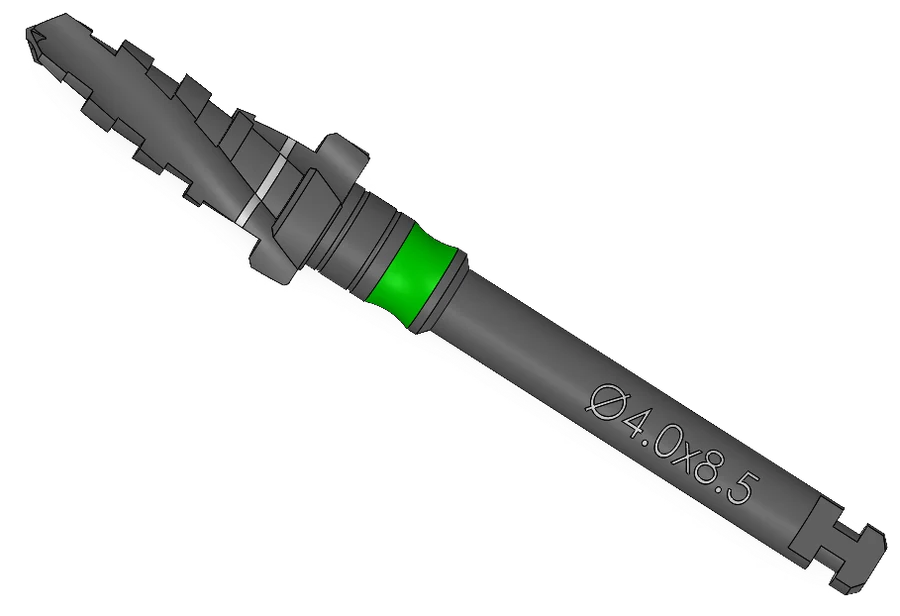

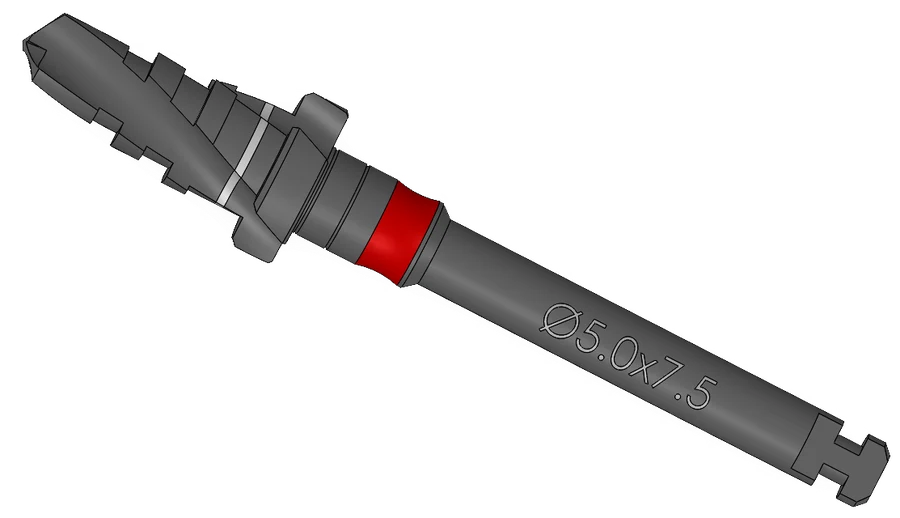

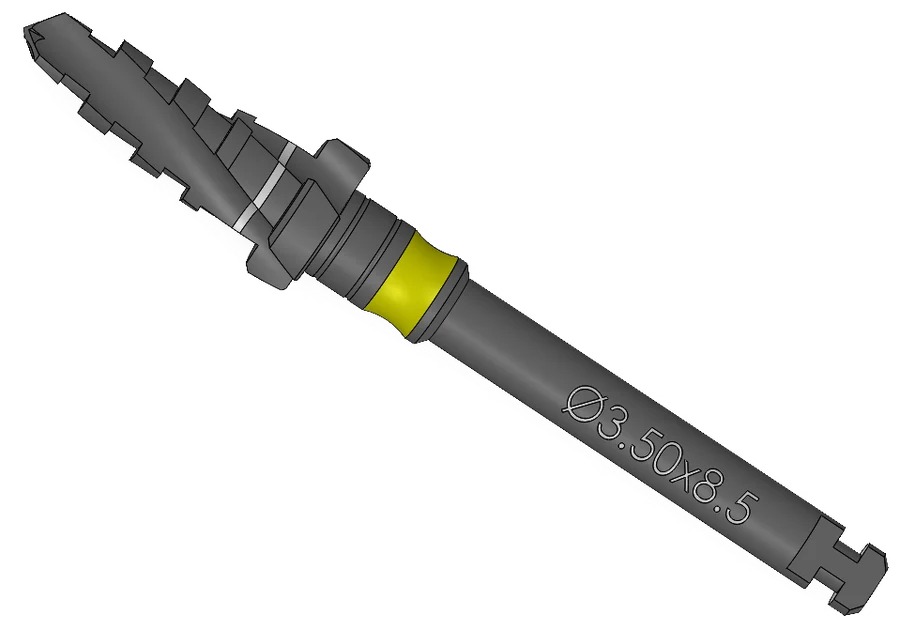

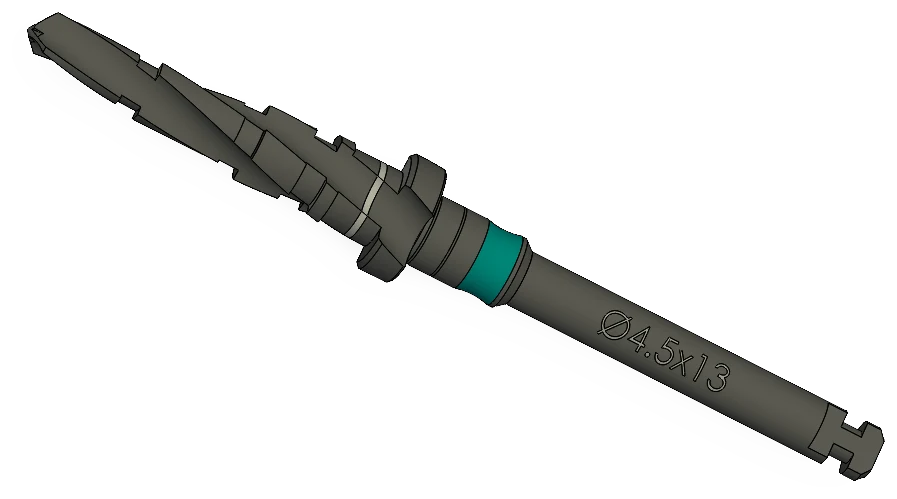

LD01 LMD01 ID2011 ID2015 ID2811 ID2815 Step Drills 26

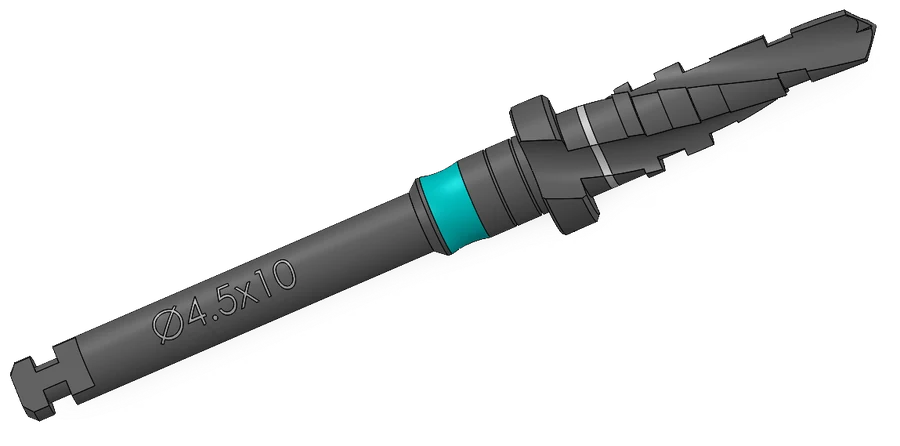

One step drill for each implant diameter and length.

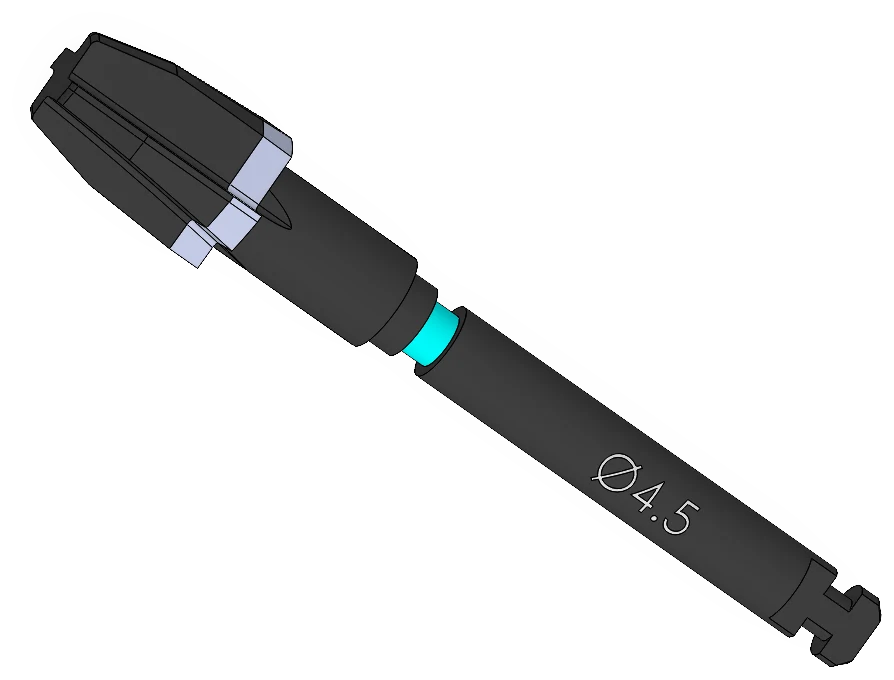

SD3575 SD3585 SD3510 SD3511 SD3513 SD3515 SD4065 SD4075 SD4085 SD4010 SD4011 SD4013 SD4015 SD4565 SD4575 SD4585 SD4510 SD4511 SD4513 SD4515 SD5065 SD5075 SD5085 SD5010 SD5011 SD5013 Cortical Drills 4

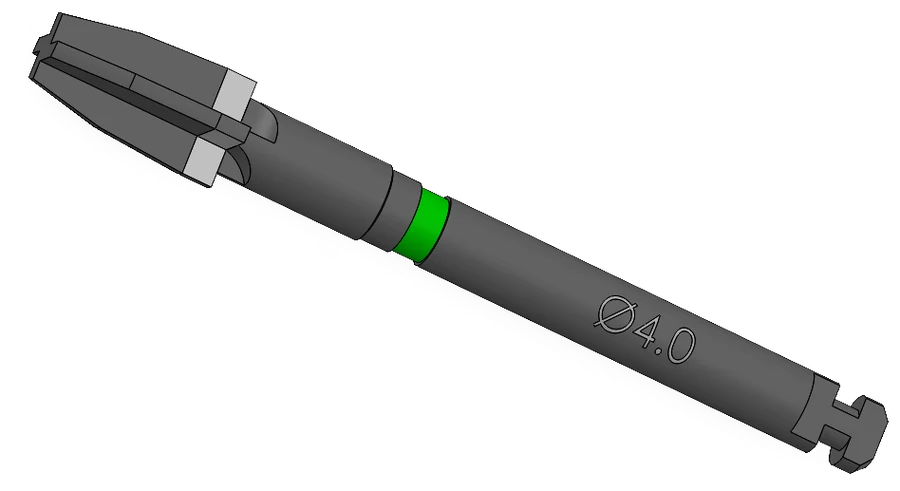

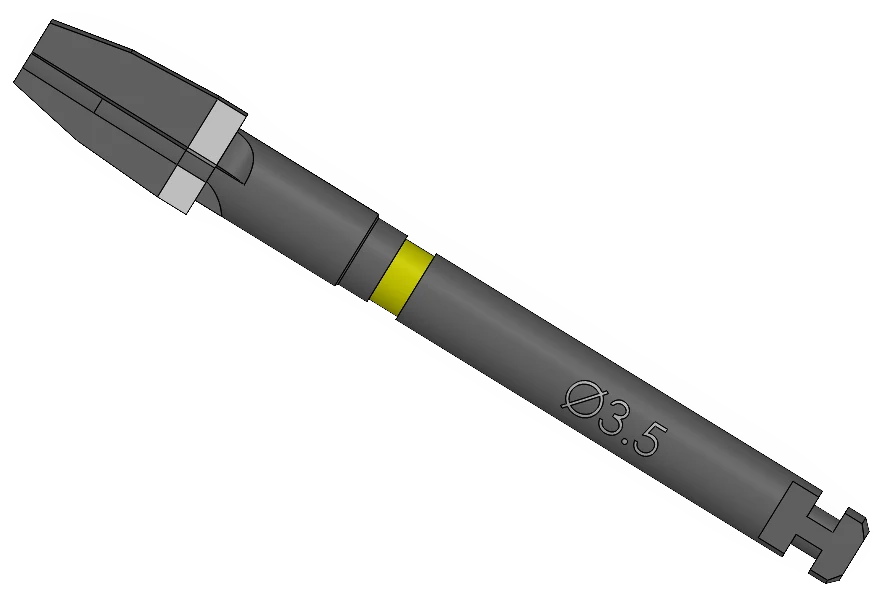

Used at the crest of the osteotomy.

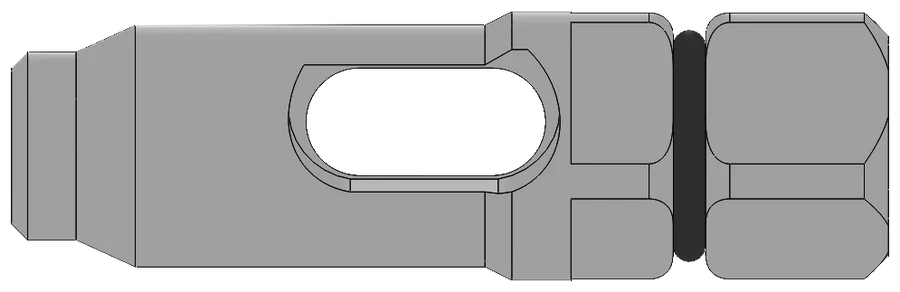

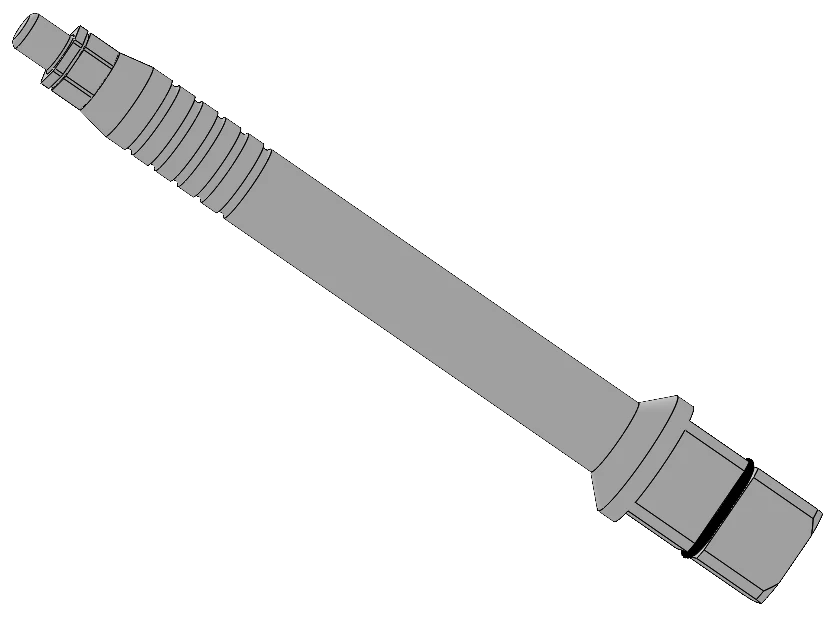

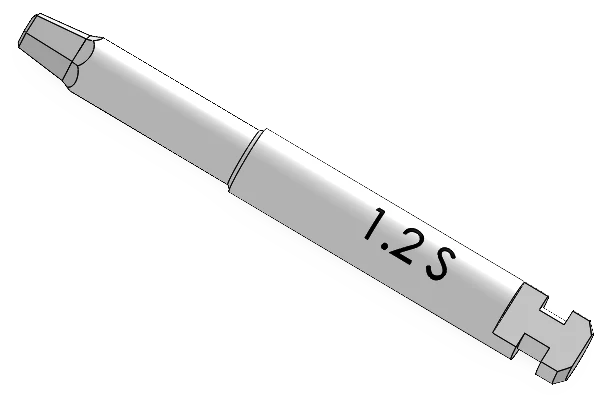

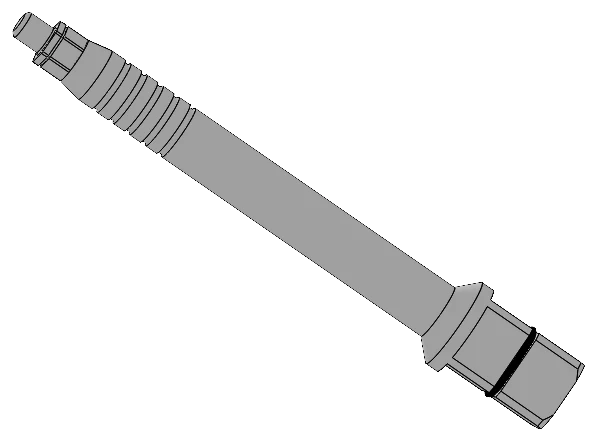

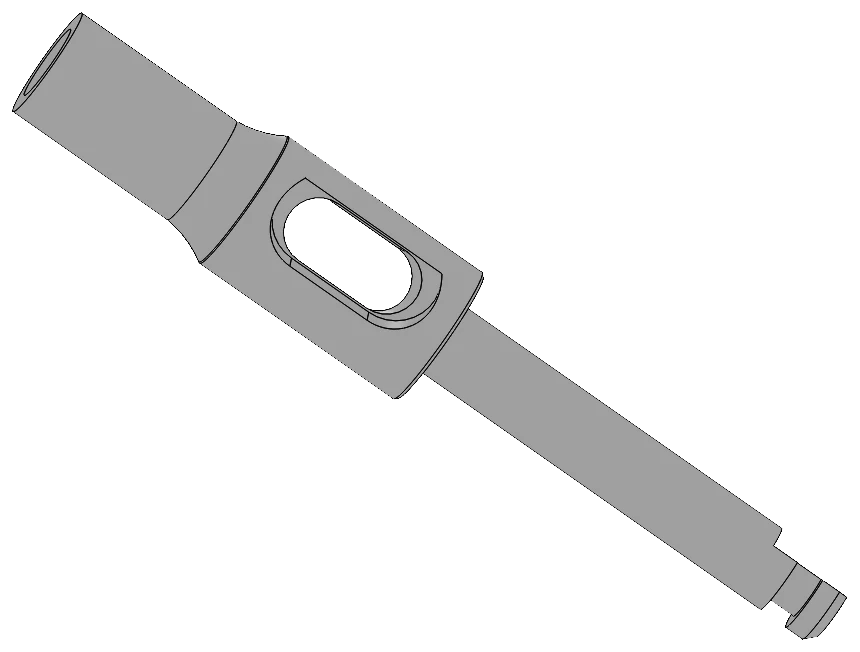

CD35 CD40 CD45 CD50 Drivers and Adapters 8

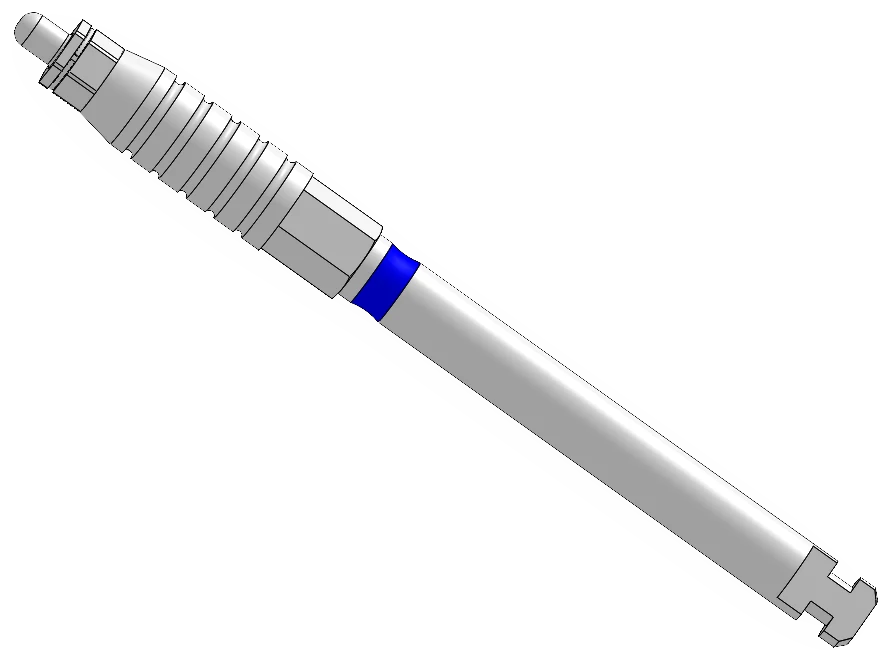

For carrying and seating the implant by ratchet or handpiece, driving screws, and connecting instruments.
IDSR1 IDLR1 IDSM1 IDLM1 HDSR1 HDM20 LR01 DE01 Measuring Instruments 2

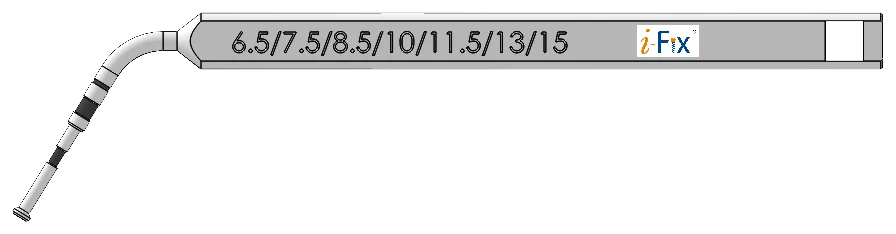

For checking the depth and the direction of the osteotomy.
DG01 PP01 Wrenches 1
For seating an implant to a set torque.
TW01 For IP Series implants

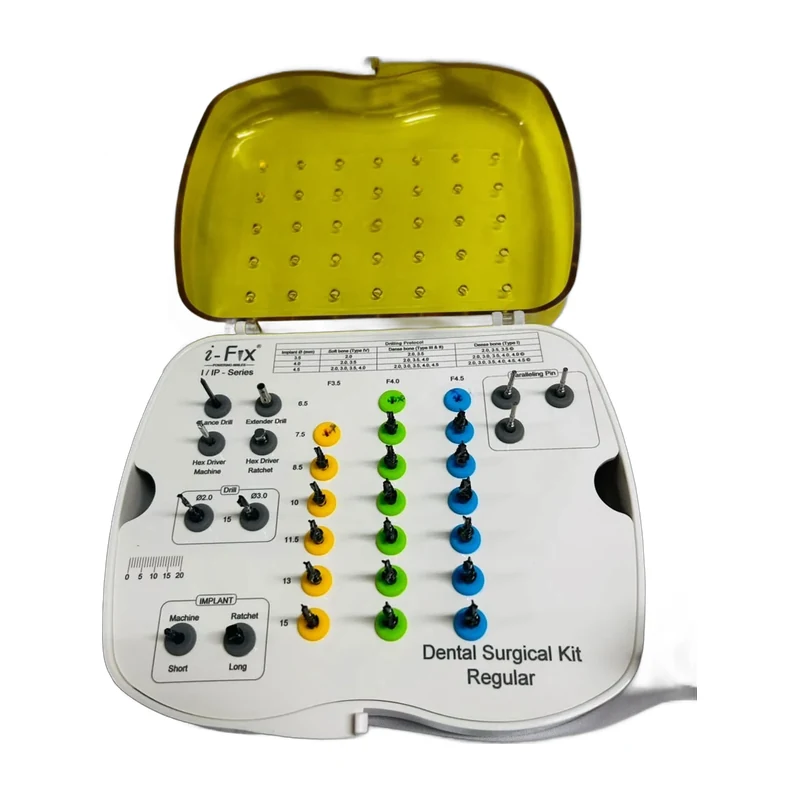

IP Series Regular Surgical Kit
Article code RSK03

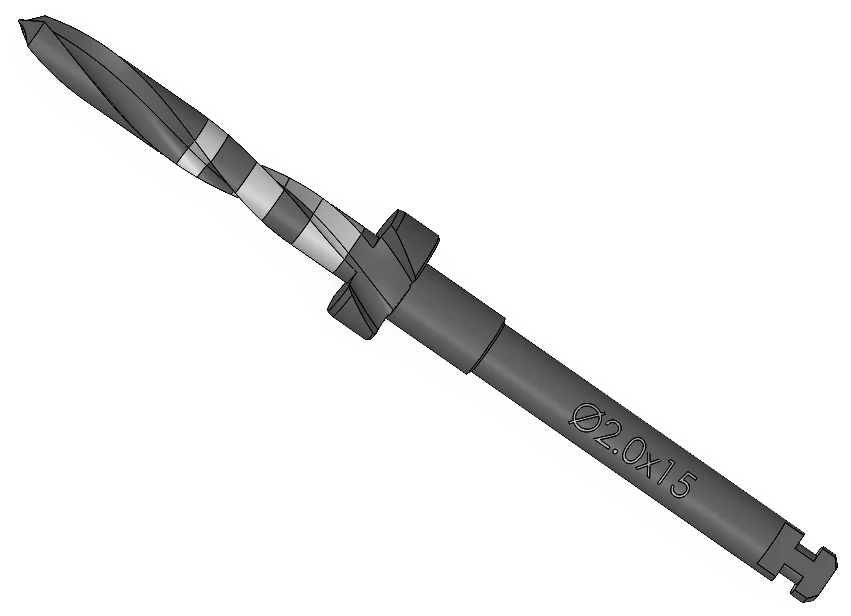

Lance and Pilot Drills 3
The first drills into the site, which set the position and direction of the osteotomy.
LD01 ID2015 ID3015 Step Drills 20
One step drill for each implant diameter and length.
SD3575 SD3585 SD3510 SD3511 SD3513 SD3515 SD4065 SD4075 SD4085 SD4010 SD4011 SD4013 SD4015 SD4565 SD4575 SD4585 SD4510 SD4511 SD4513 SD4515 Drivers and Adapters 5
For carrying and seating the implant by ratchet or handpiece, driving screws, and connecting instruments.
IDLR1 IDSM1 HDSR1 HDM20 DE01 Measuring Instruments 2
For checking the depth and the direction of the osteotomy.
DG01 PP01 Wrenches 1
For seating an implant to a set torque.
TW01 For SP Series implants

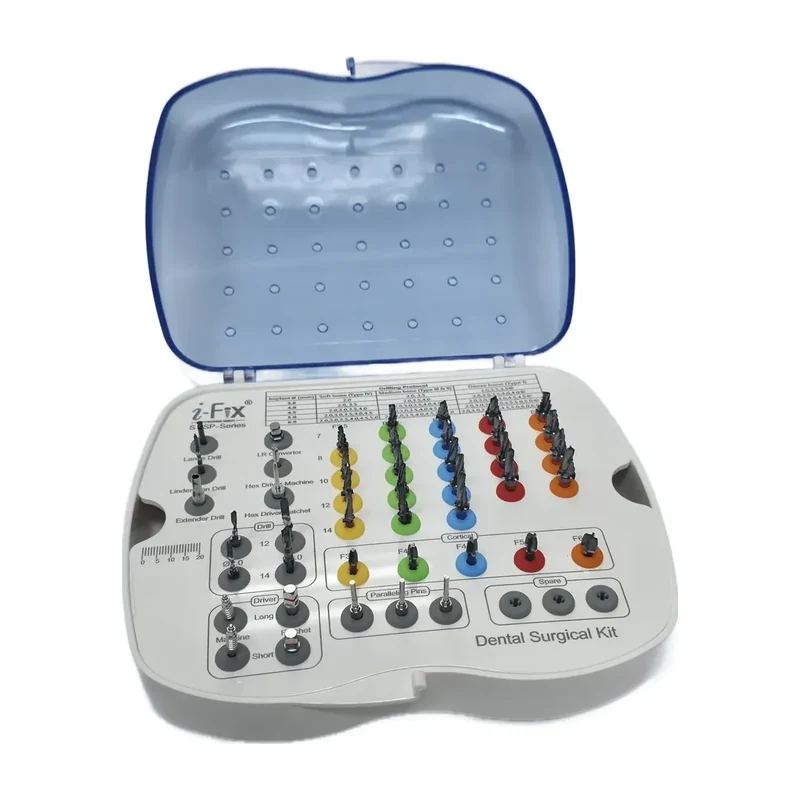

SP Series (S-Fix Pro) Surgical Kit
Article code KMSK03

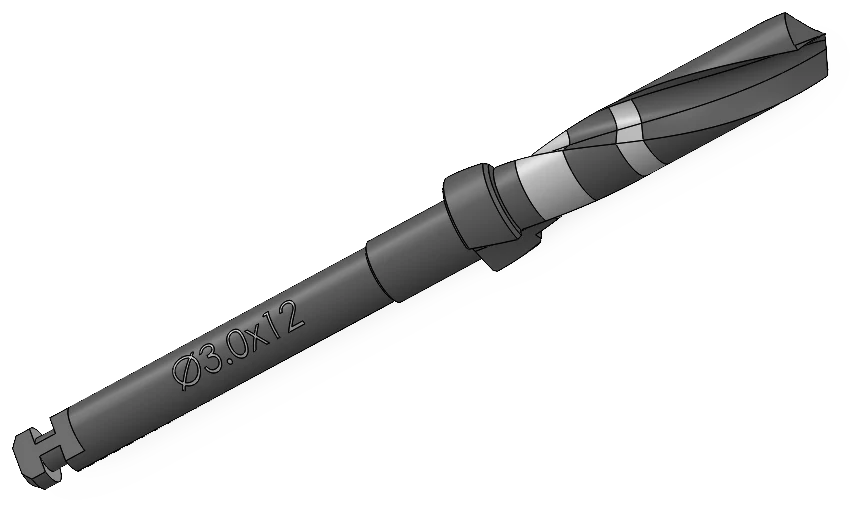

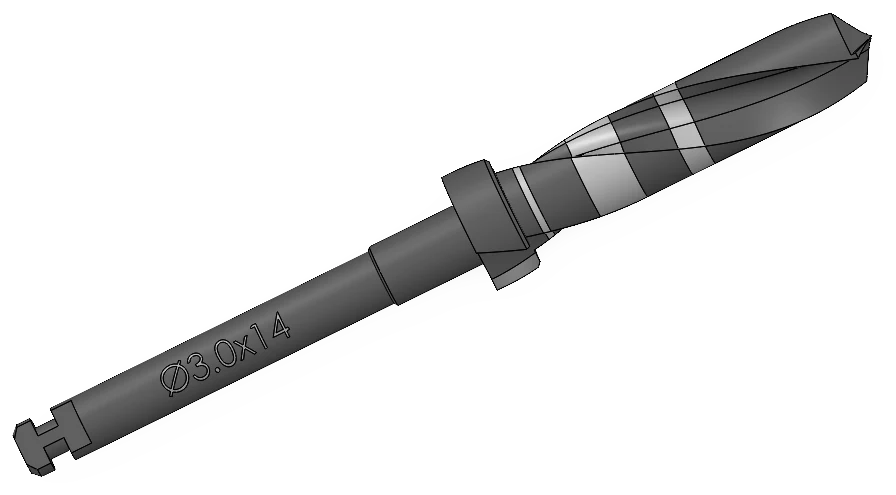

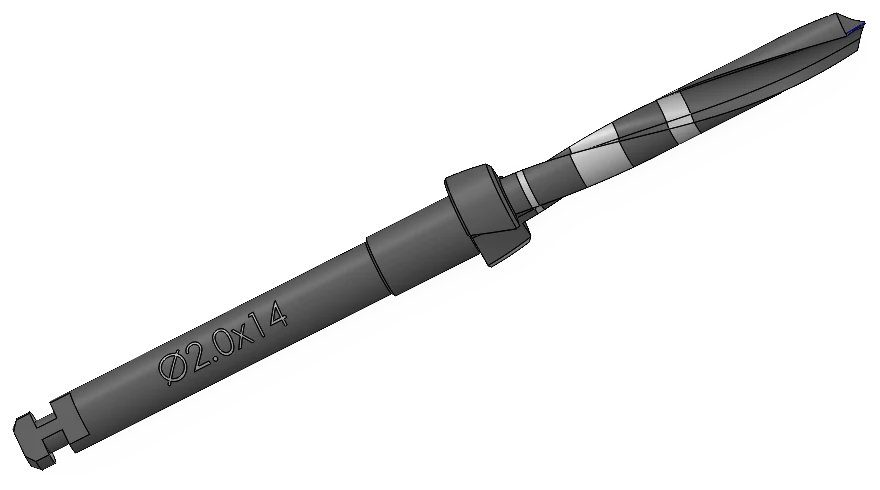

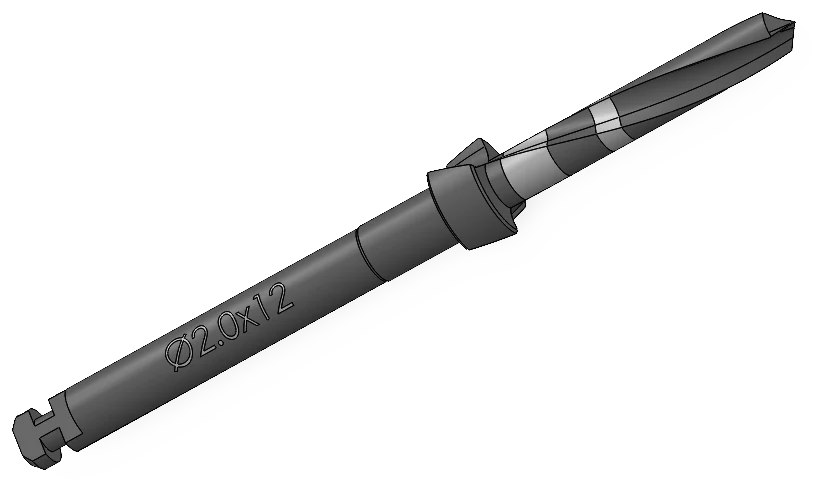

Pilot and Lindemann Drills 5
The first drills into the site, which set the position and direction of the osteotomy.

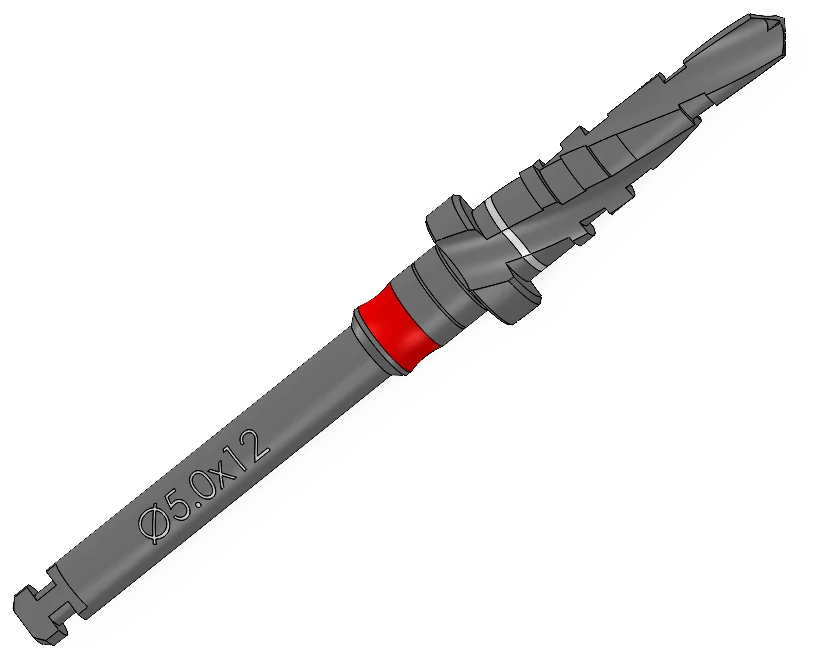

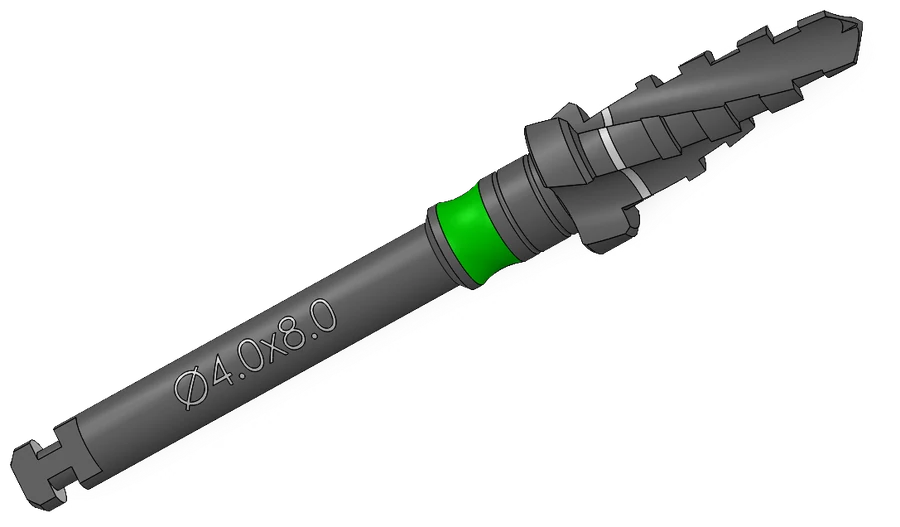

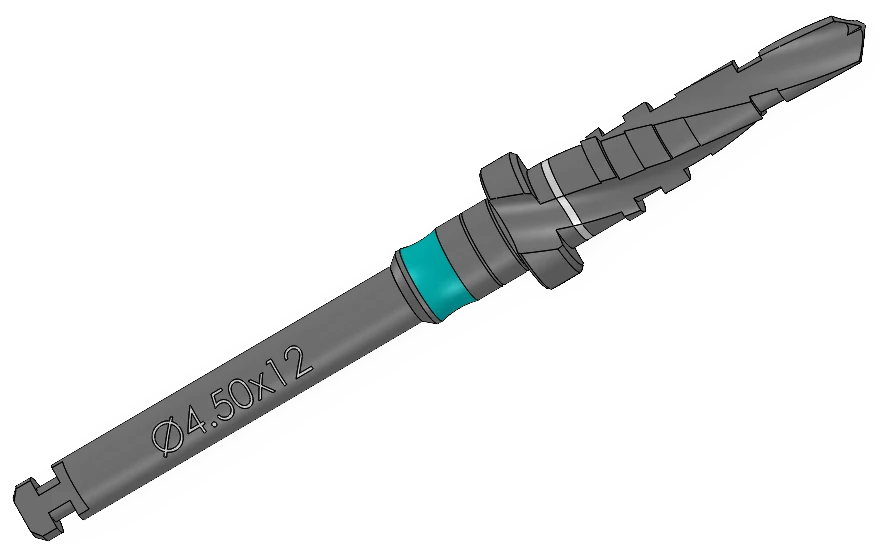

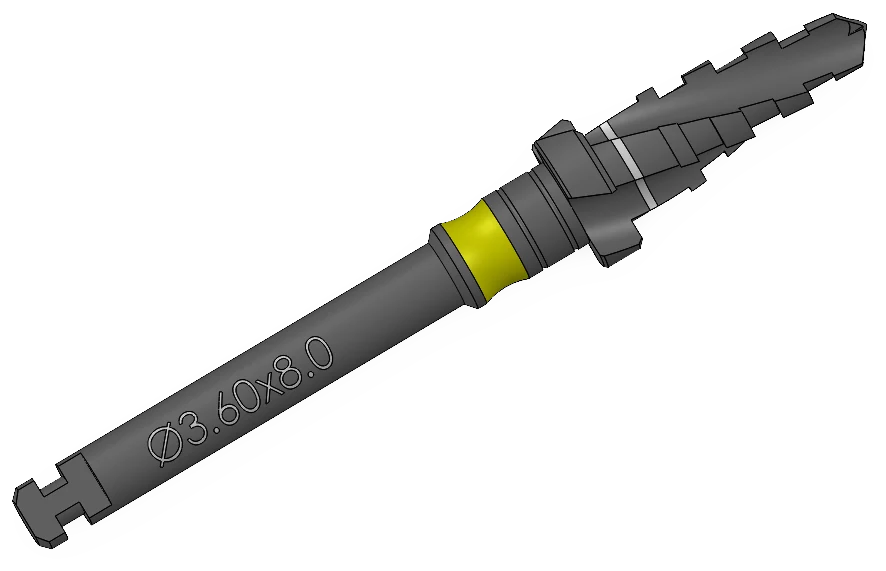

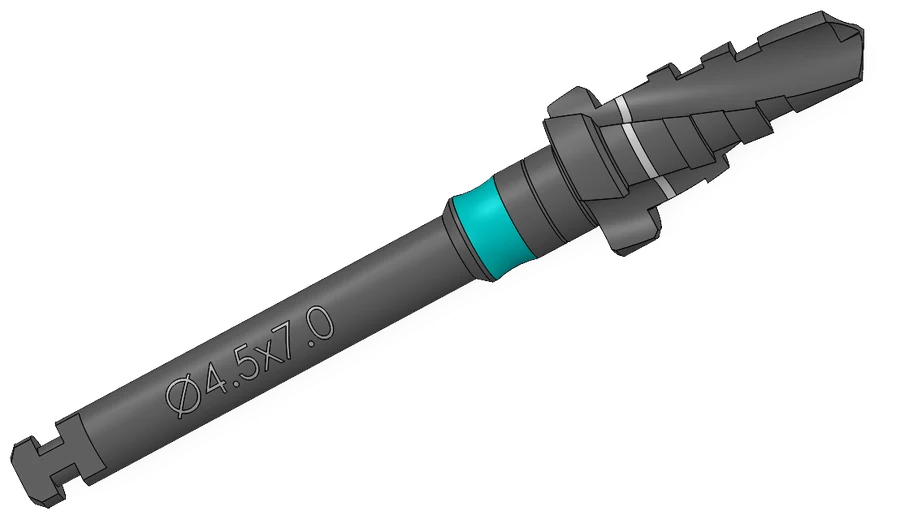

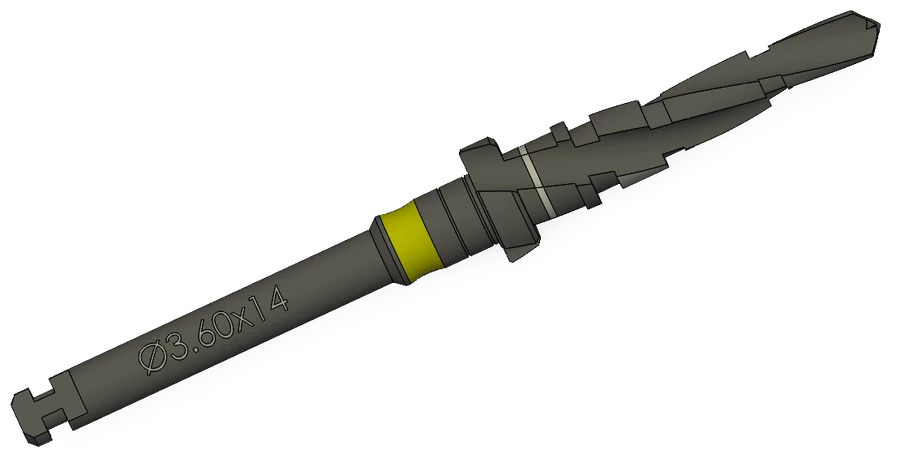

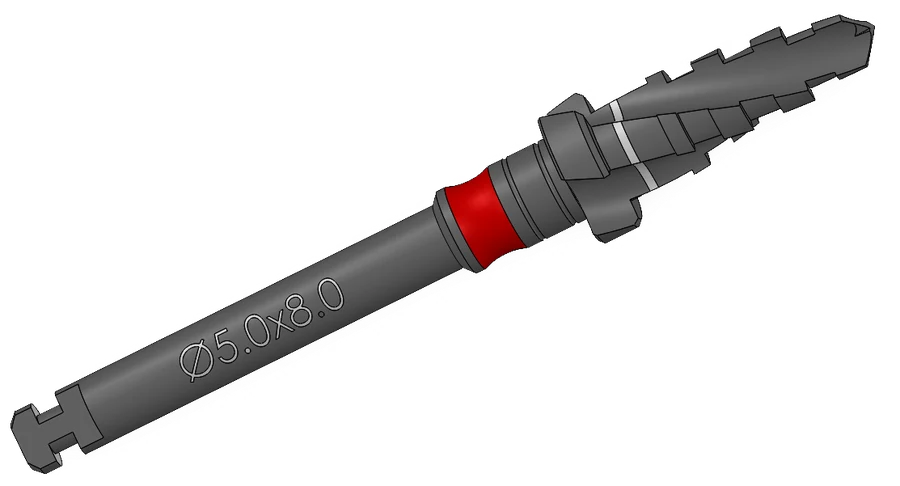

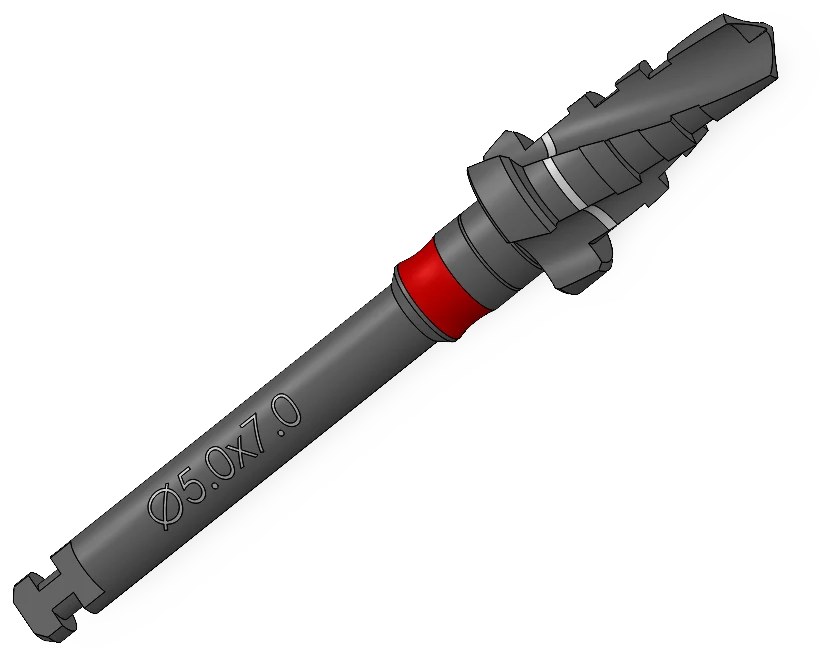

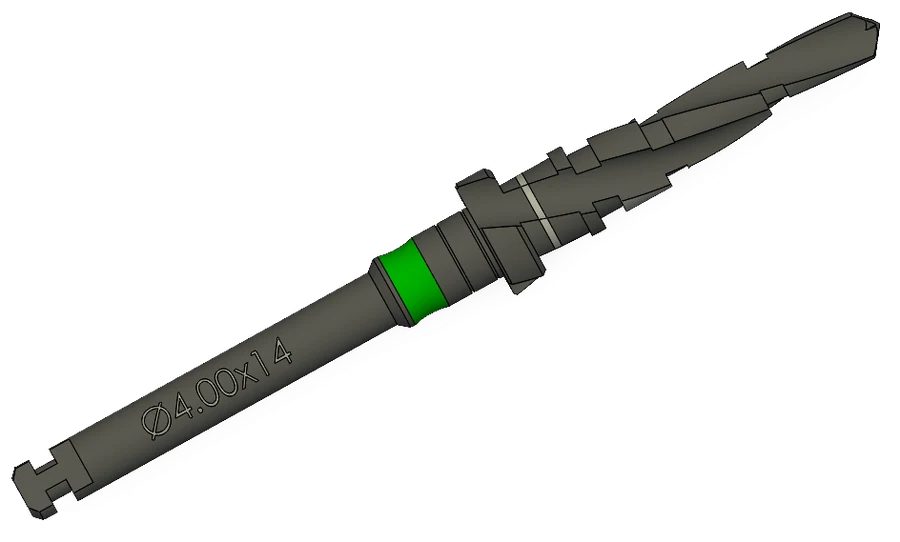

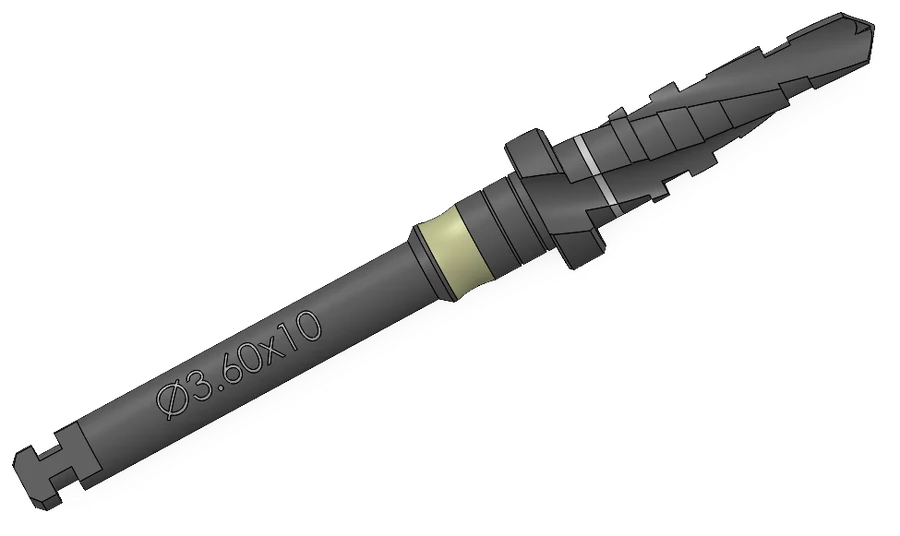

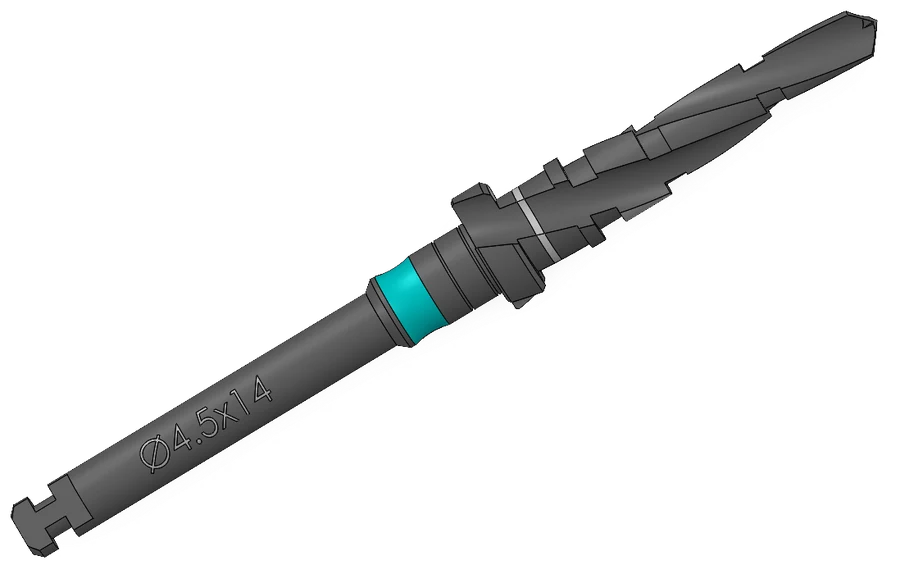

ID2012 ID2014 ID3012 ID3614 LMD01 Step Drills 22

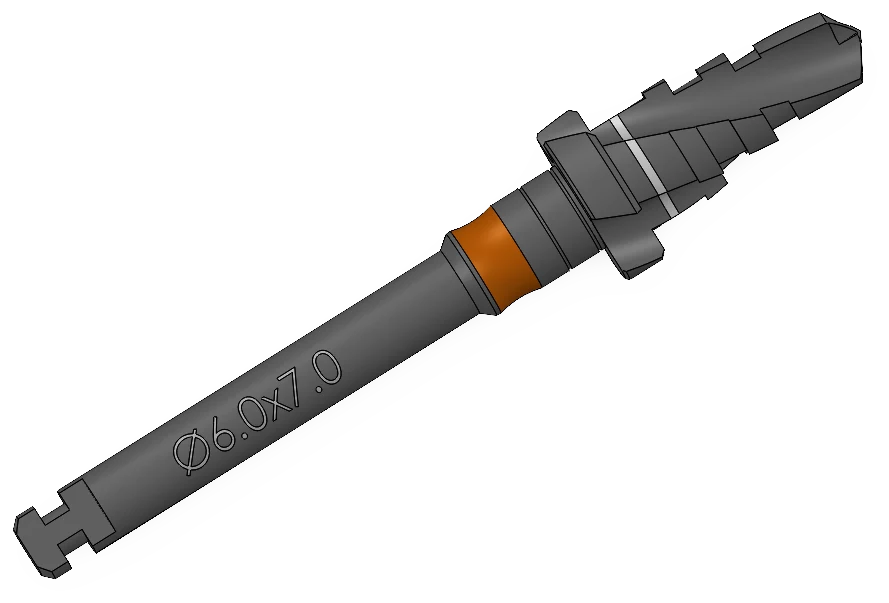

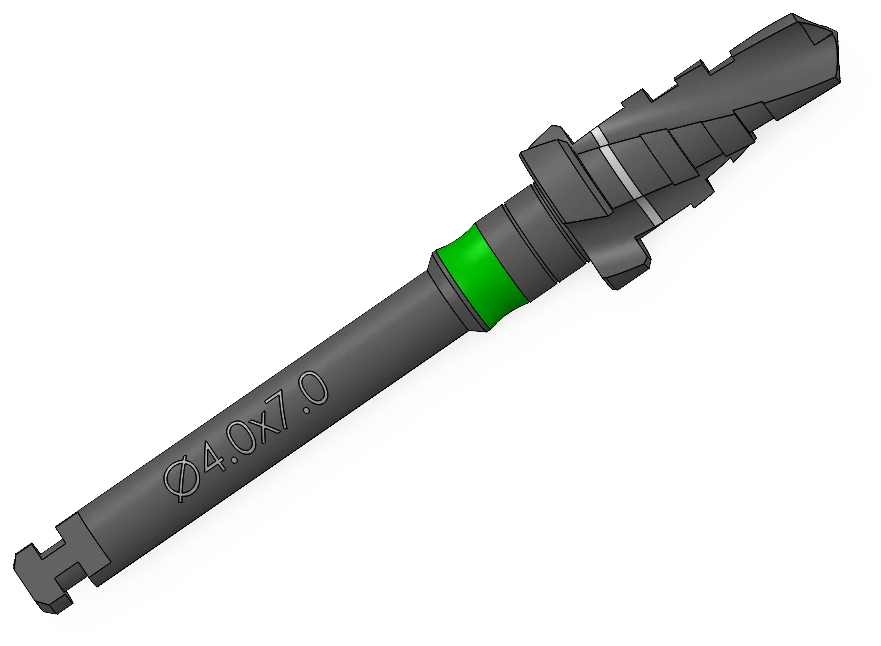

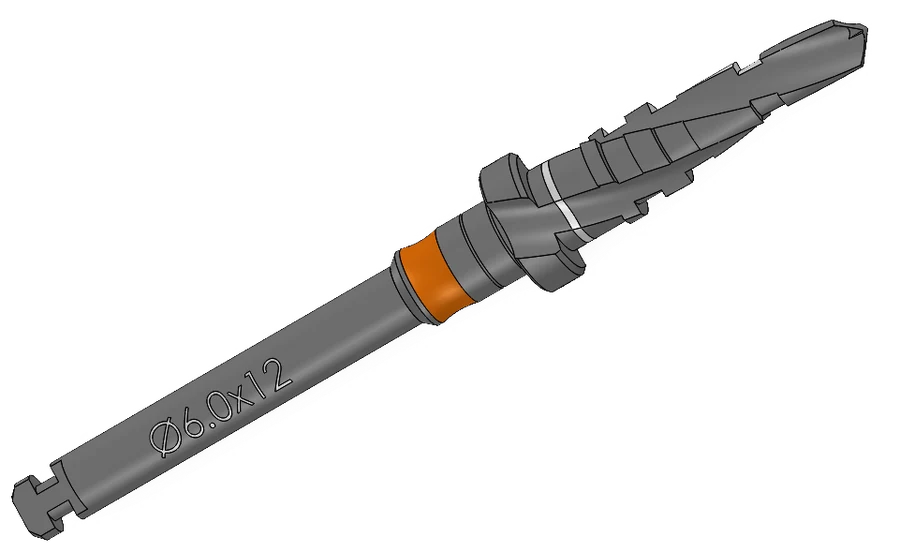

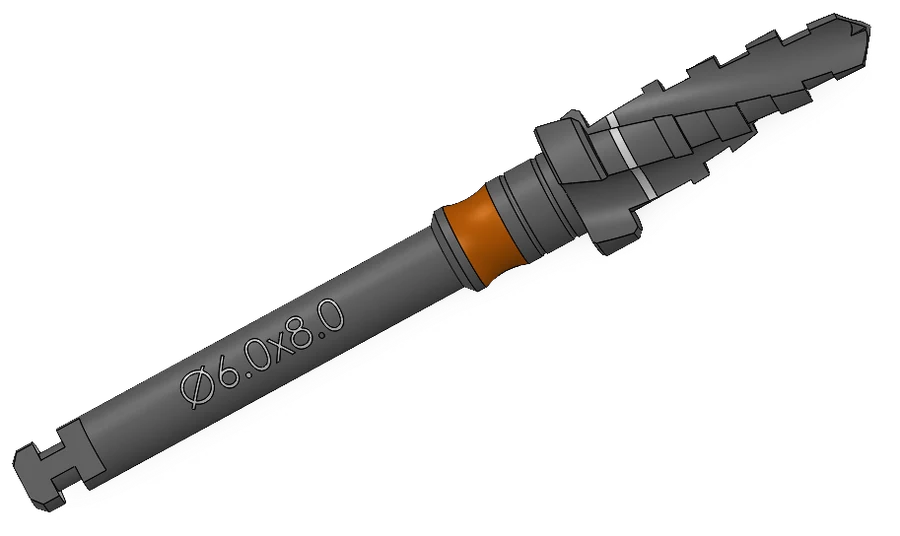

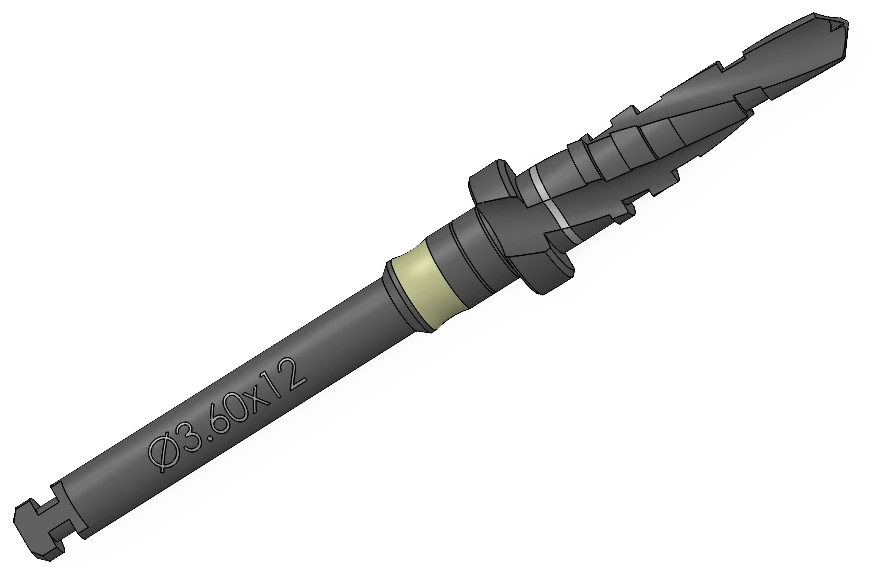

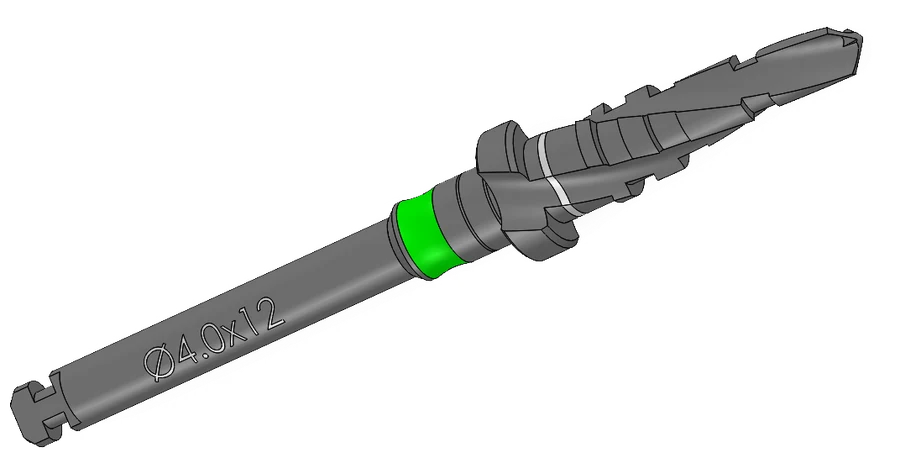

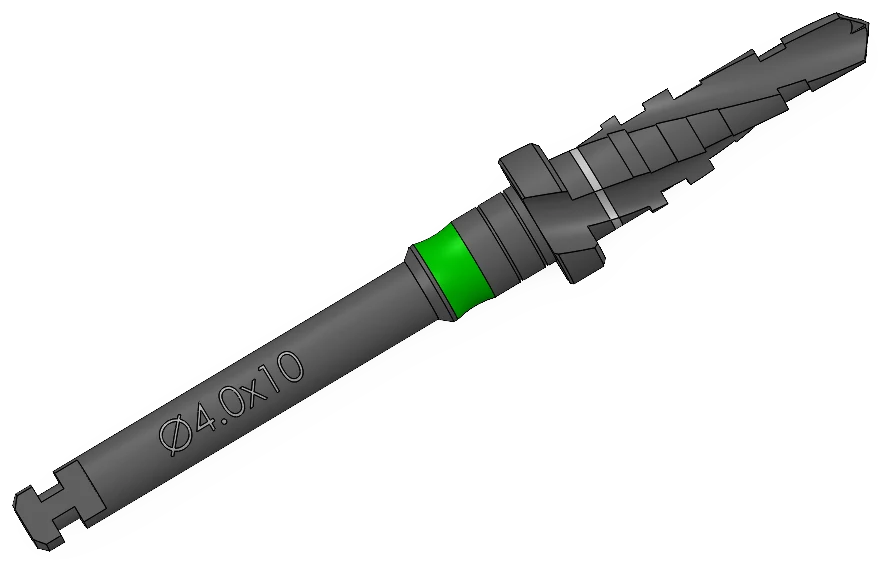

One step drill for each implant diameter and length.

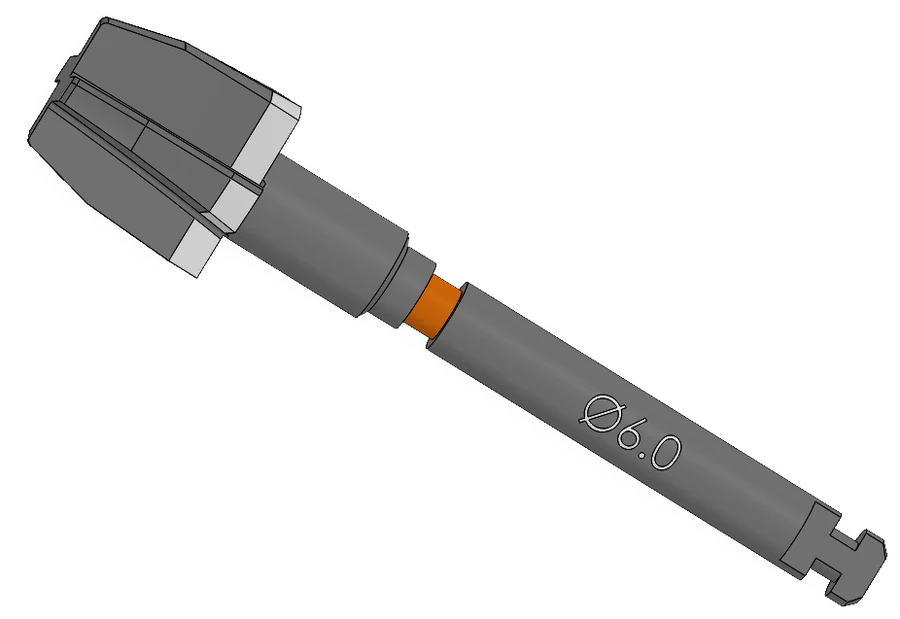

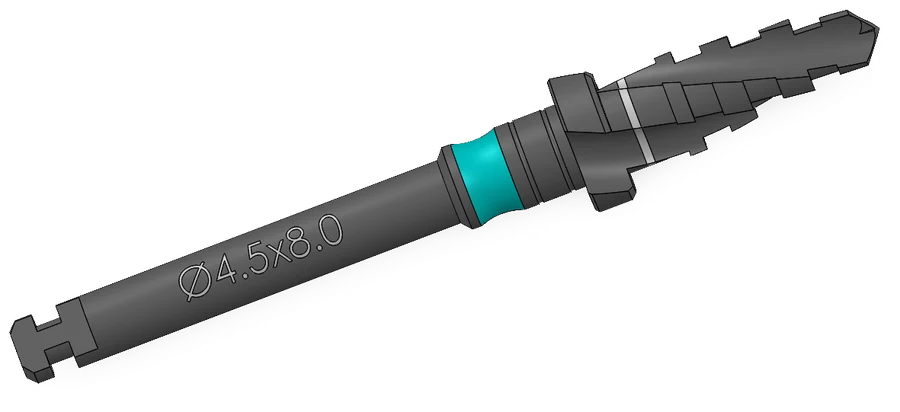

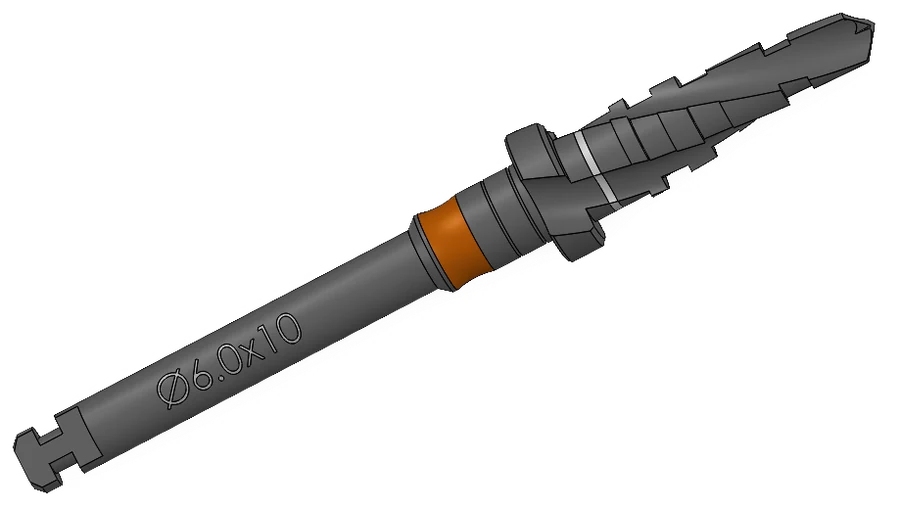

SD3608 SD3610 SD3612 SD3614 SD4007 SD4008 SD4010 SD4012 SD4014 SD4507 SD4508 SD4510 SD4512 SD4514 SD5007 SD5008 SD5010 SD5012 SD6007 SD6008 SD6010 SD6012 Cortical Drills 5

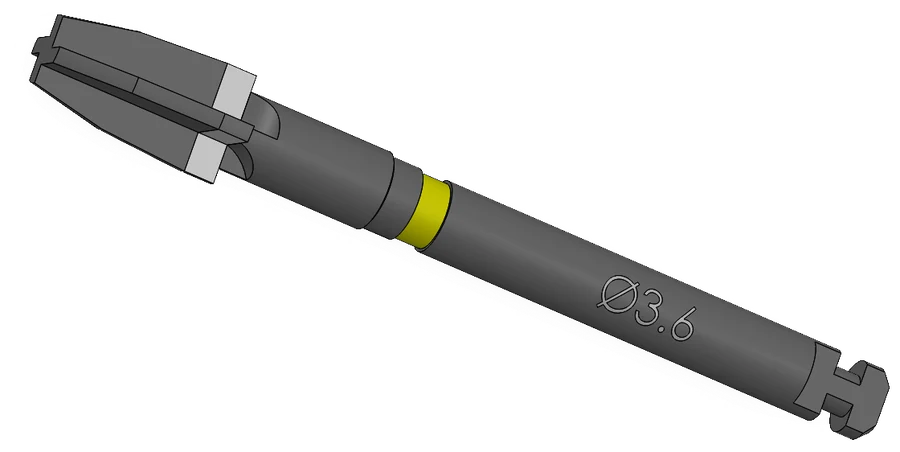

One for each implant diameter, used at the crest of the osteotomy.

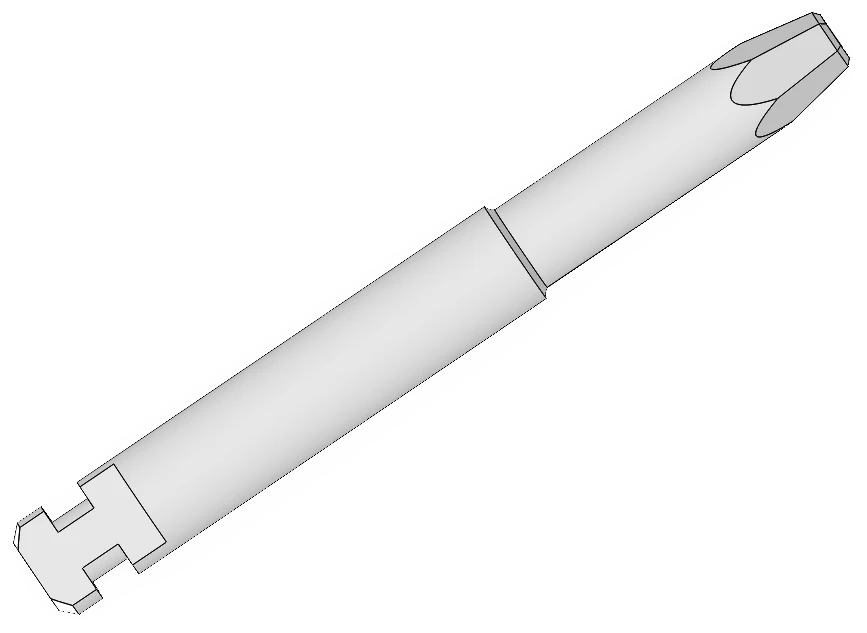

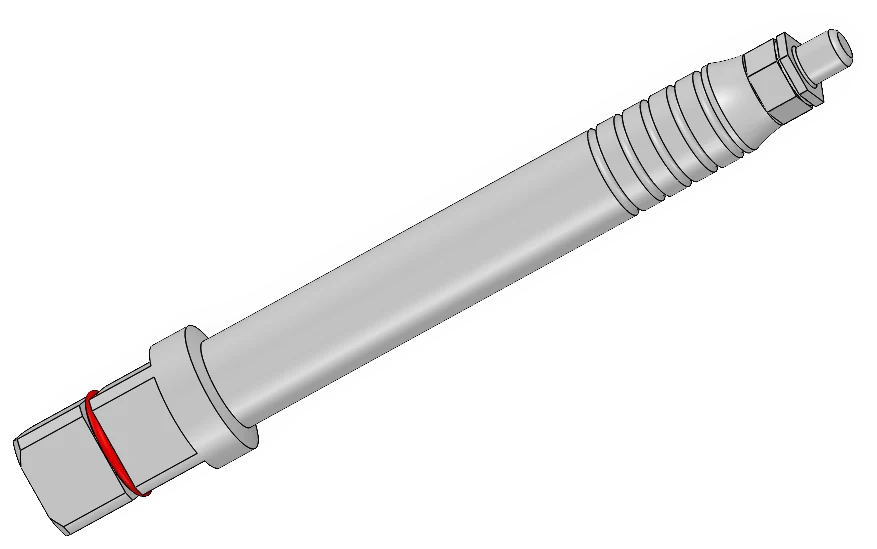

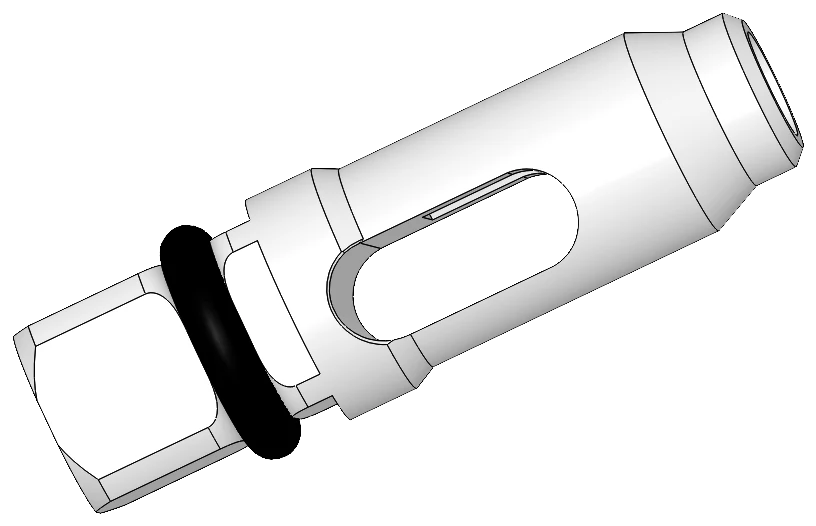

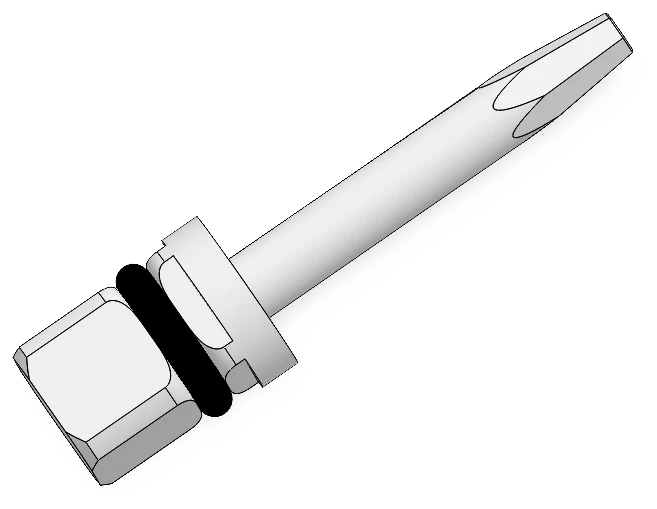

CD36 CD40 CD45 CD50 CD60 Drivers and Adapters 5
For carrying and seating the implant, driving screws, and connecting instruments to the handpiece or ratchet.

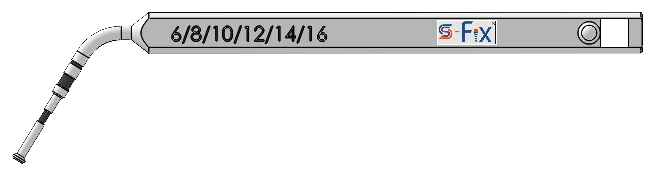

KIDSR1 KIDLR1 HDSR1 HDM20 LR01 Measuring Instruments 2
For checking the depth and the direction of the osteotomy.

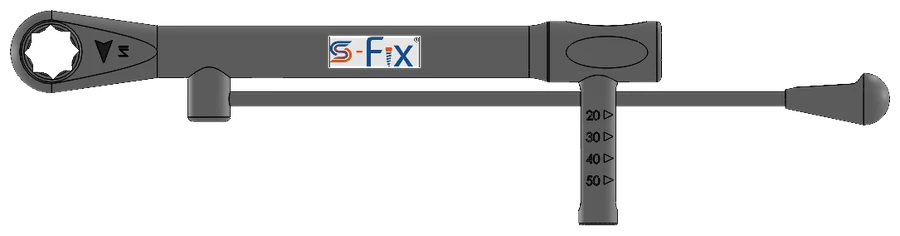

DG02 PP01 Wrenches 1
For seating an implant to a set torque.
KTW01 For SP Series implants
SP Series (S-Fix Pro) Regular Surgical Kit
The instruments of the SP Series (S-Fix Pro) Regular Surgical Kit will be listed here soon. Until then, the kit itself is shown on the Surgical Kits page, and the team can send you its contents.
For AK Series implants

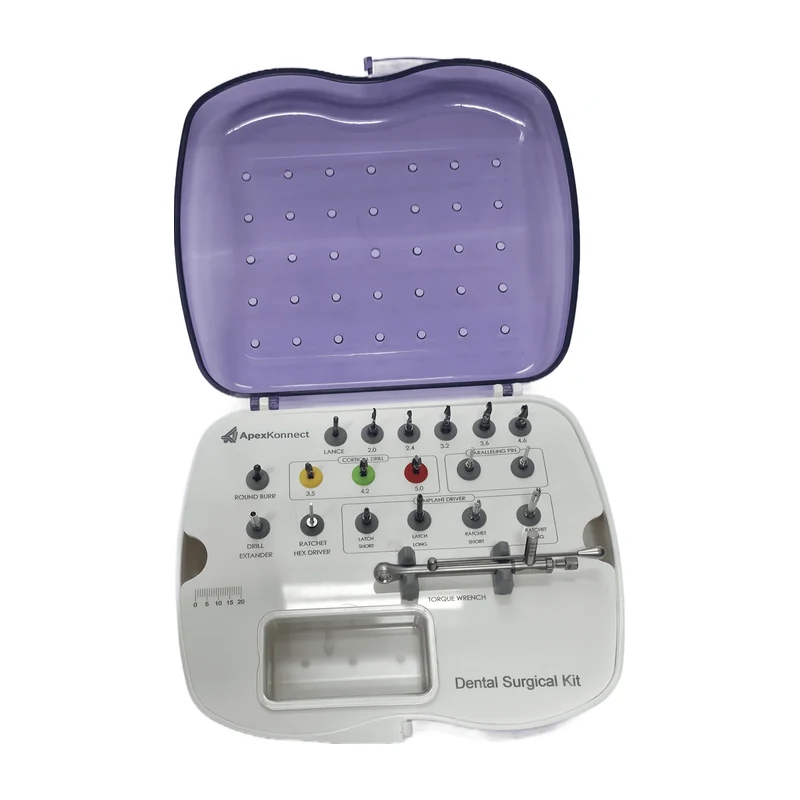

AK Series Surgical Kit
Article code ABSK01

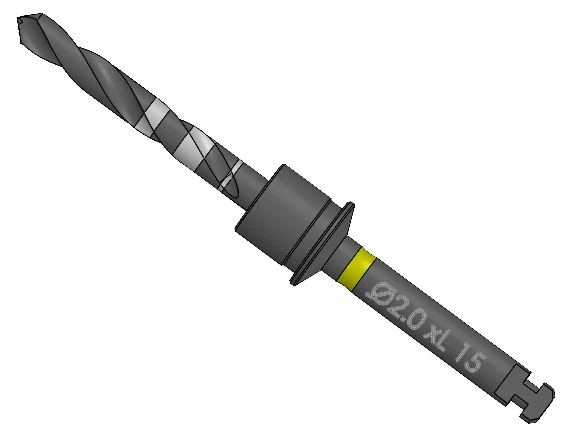

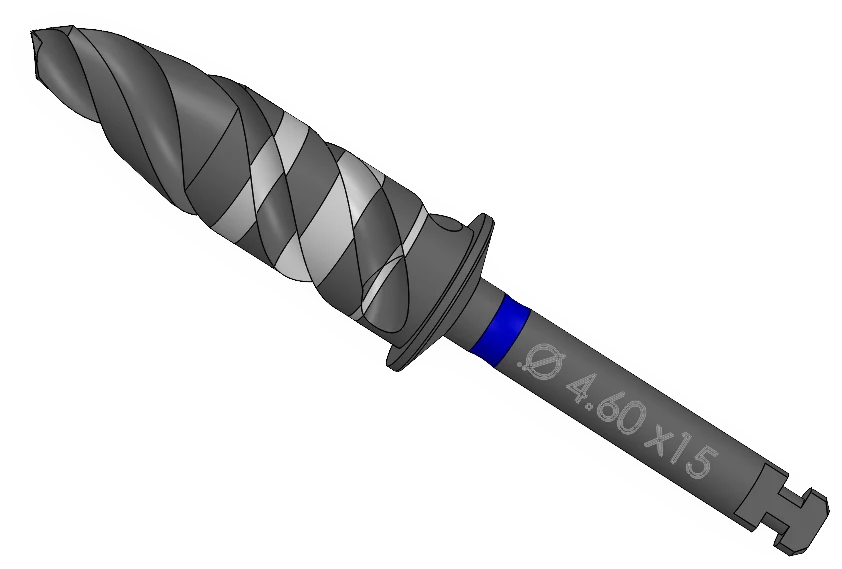

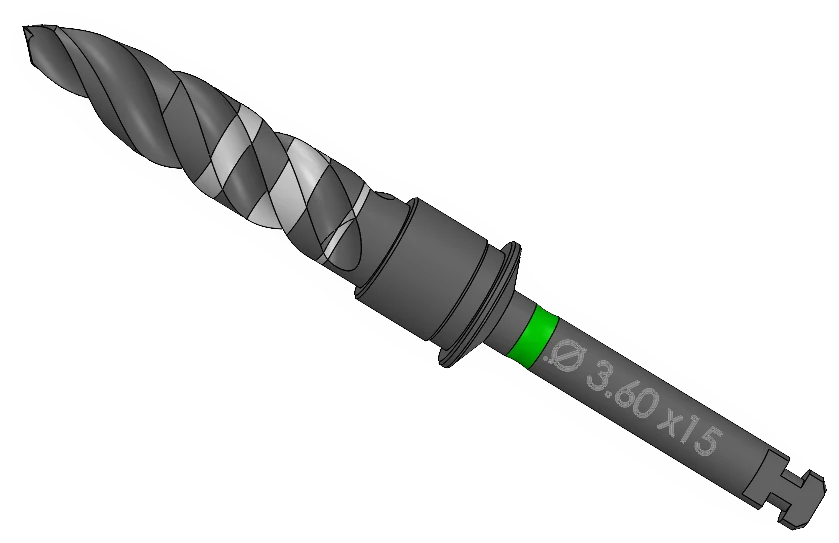

Lance and Taper Drills 6

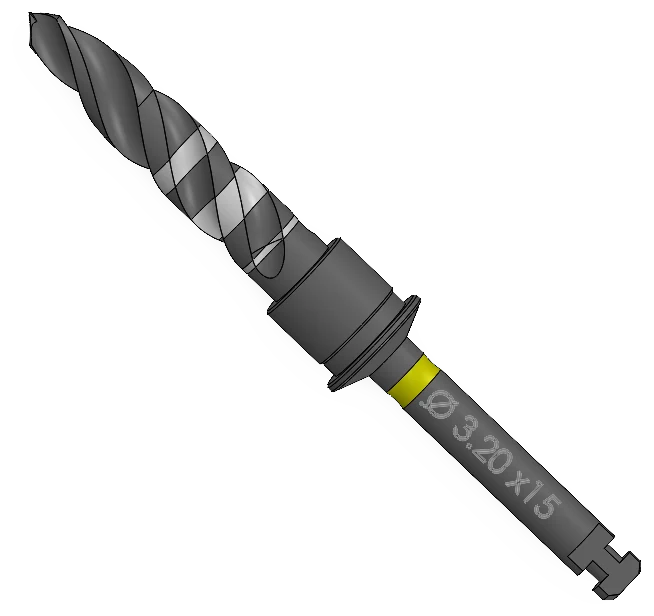

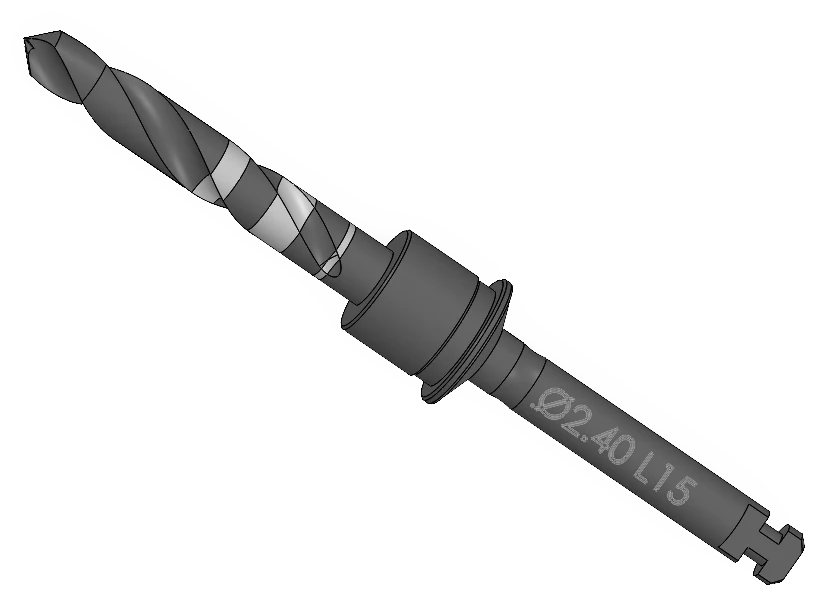

The lance drill marks the site, and the taper drills widen the osteotomy in steps.

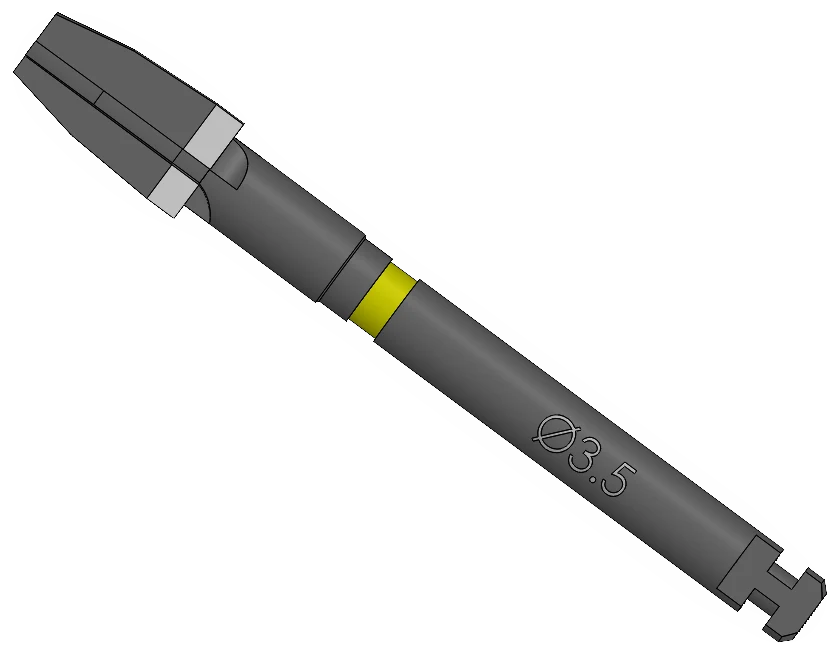

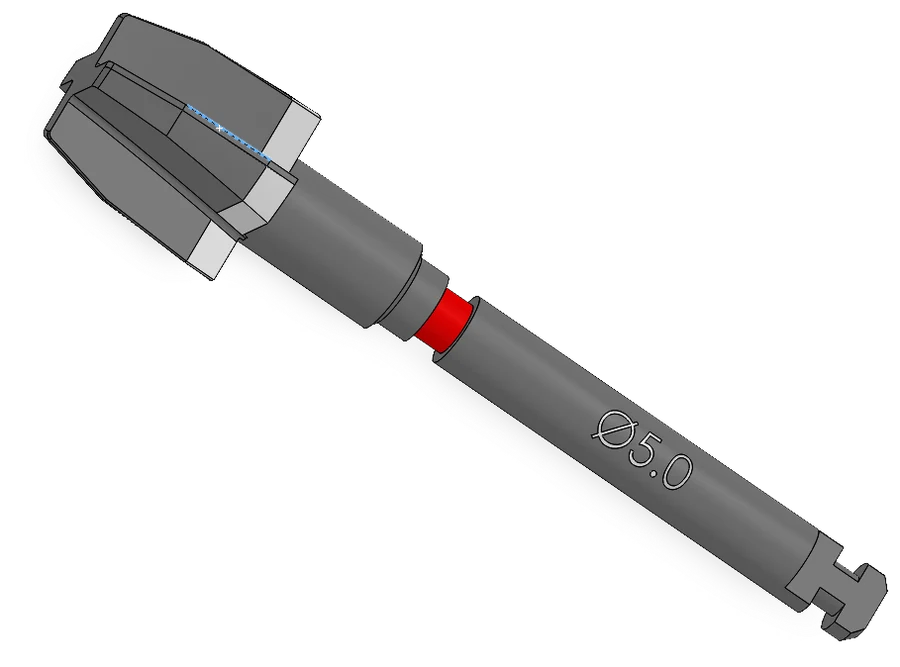

LD01 TD2015 TD2415 TD3215 TD3615 TD4615 Cortical Drills 3

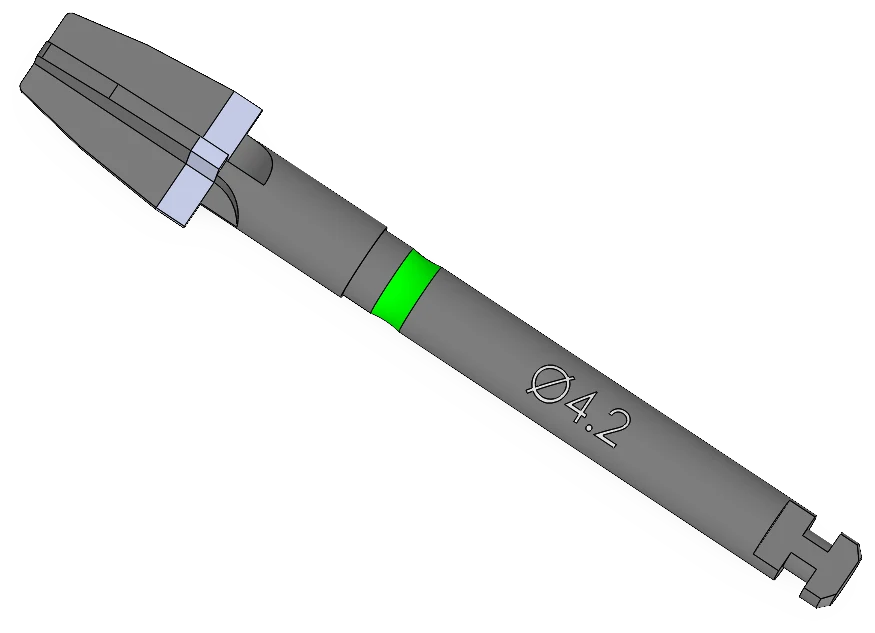

One for each implant diameter, used at the crest of the osteotomy.

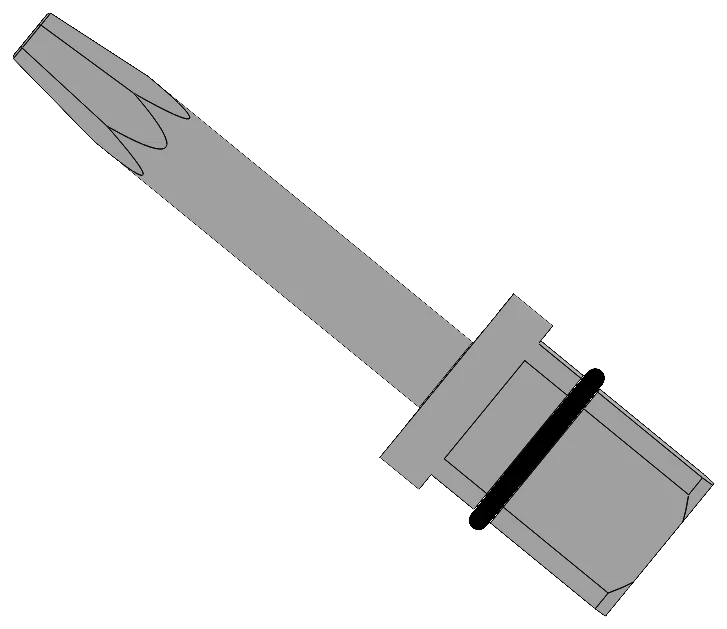

CD35 CD42 CD50 Drivers and Adapters 3
For carrying and seating the implant and driving screws.

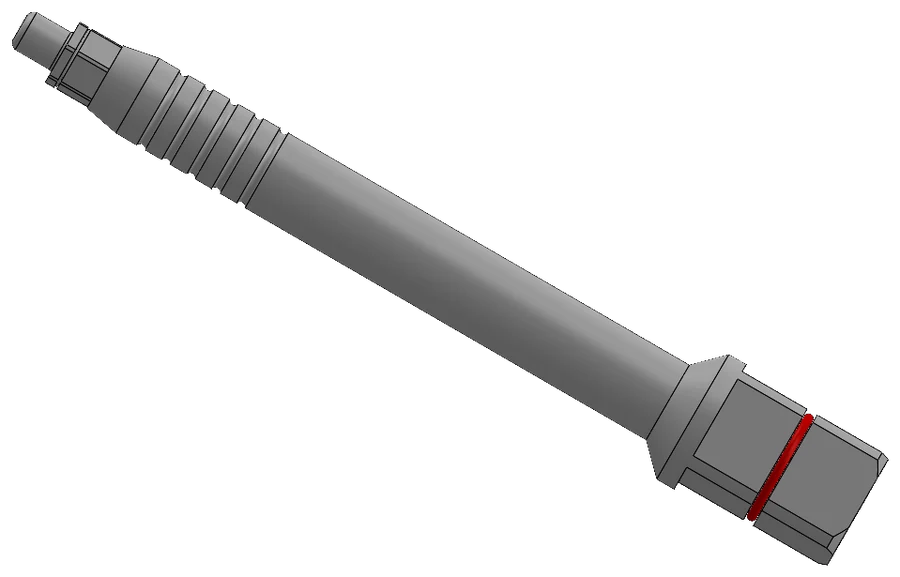

IDSR1 IDLR1 HDSR1 Measuring Instruments 1
For checking the direction of the osteotomy.
PP01 For the one-piece B and C Series implants

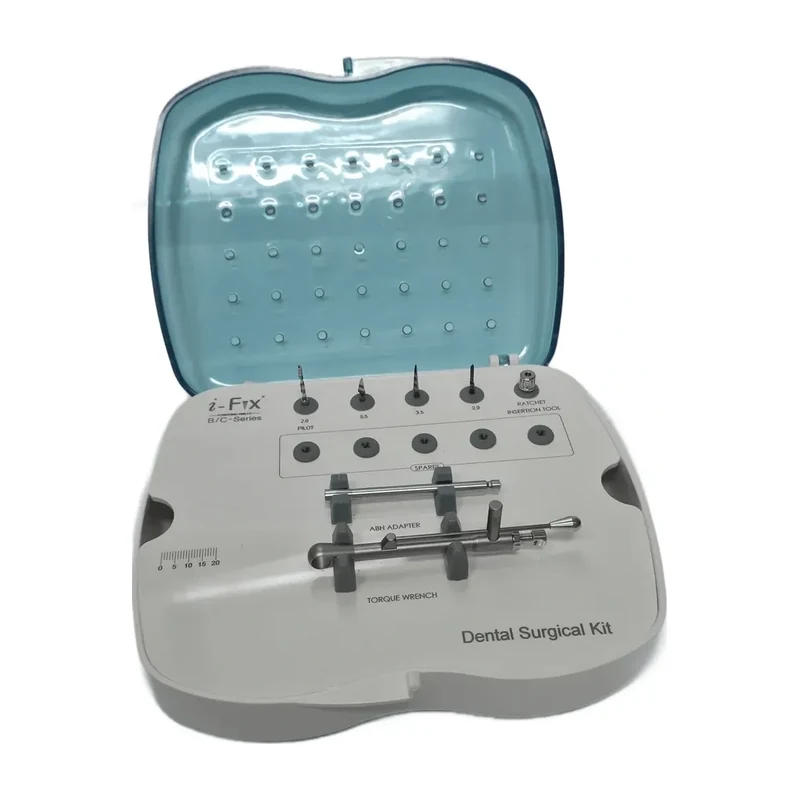

B and C Series Surgical Kit
Article code BCXSK01

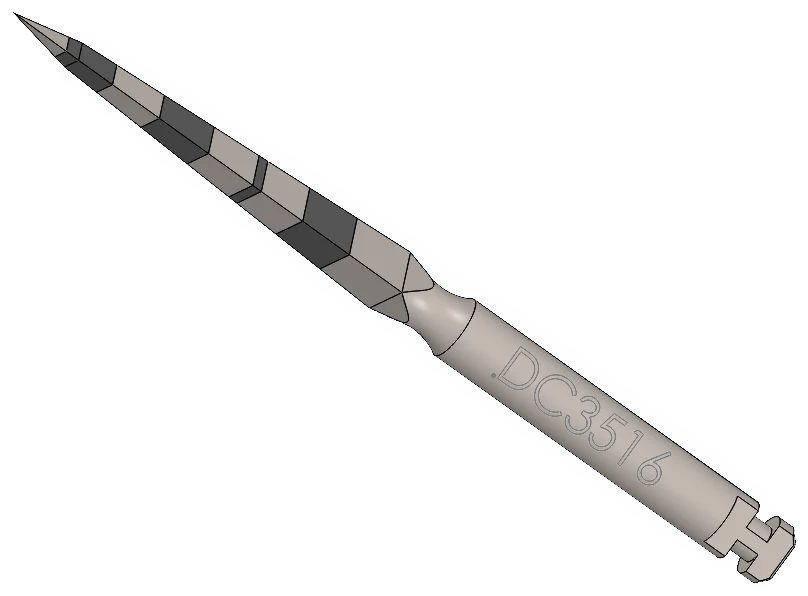

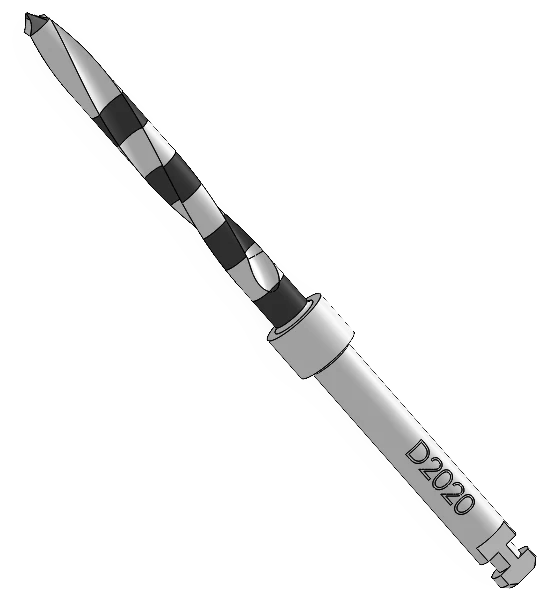

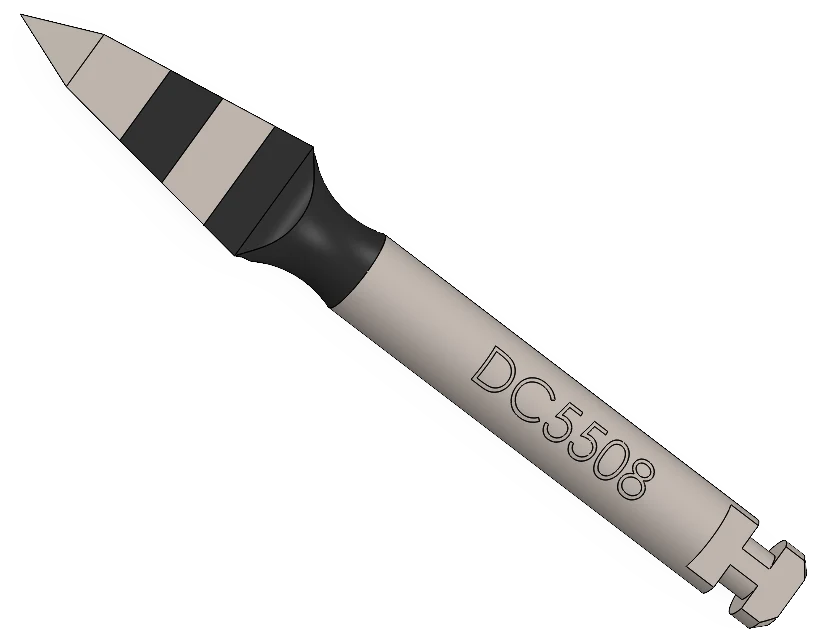

Drills 4
Each drill carries its article code on the shank.

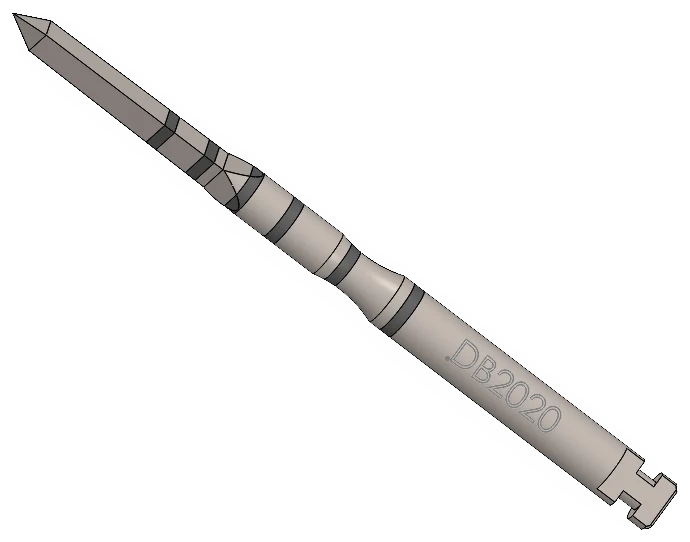

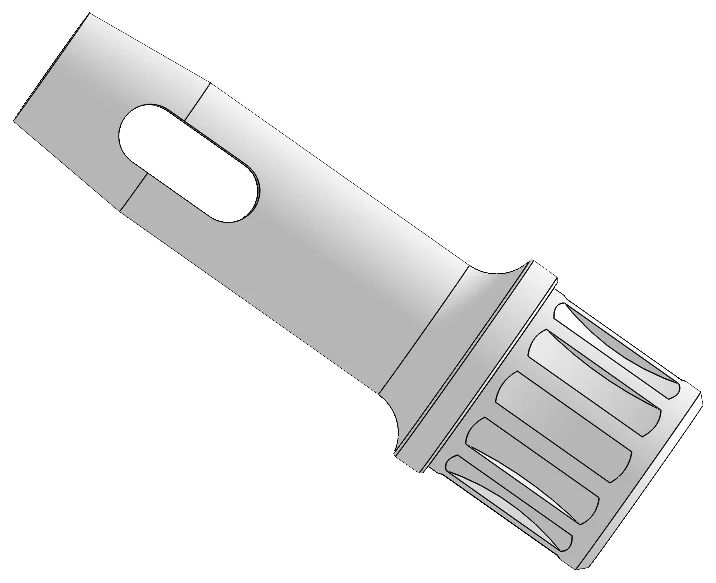

D2020 DB2020 DC3516 DC5508 Insertion Tools 3
For carrying and seating the one-piece implant.

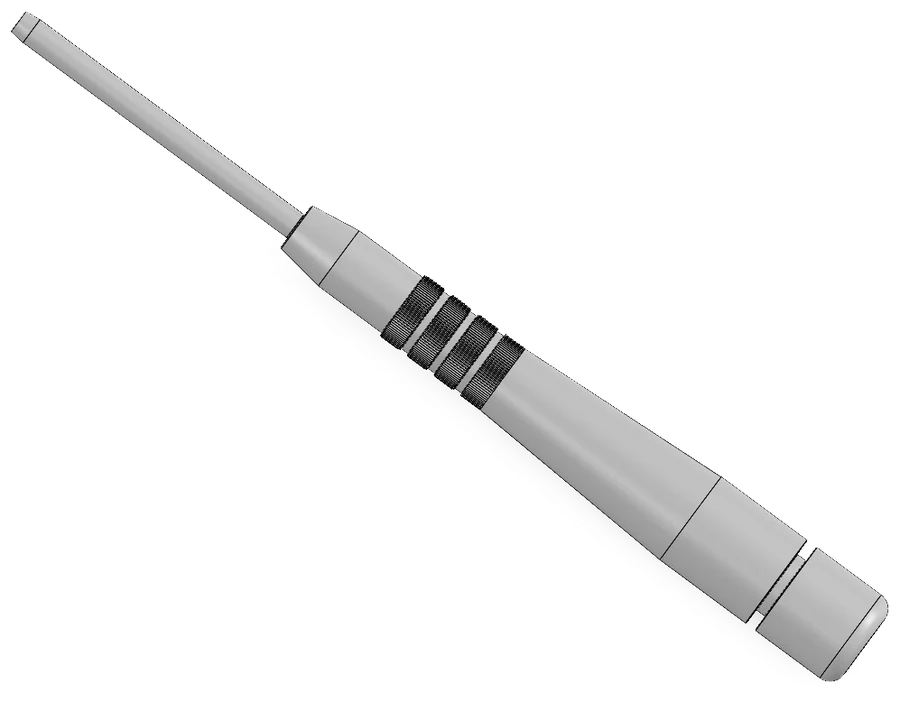

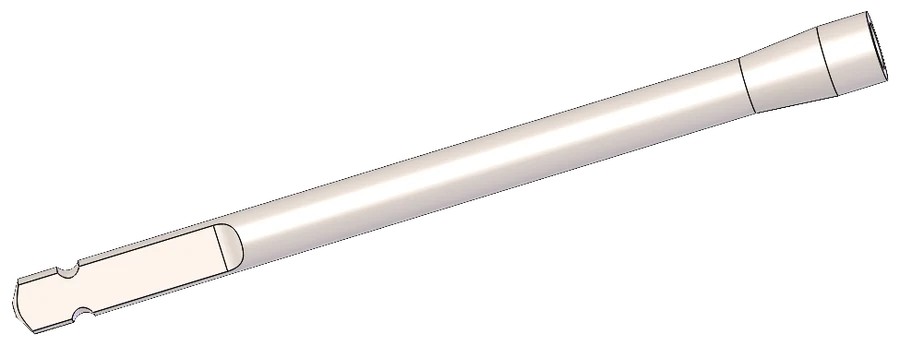

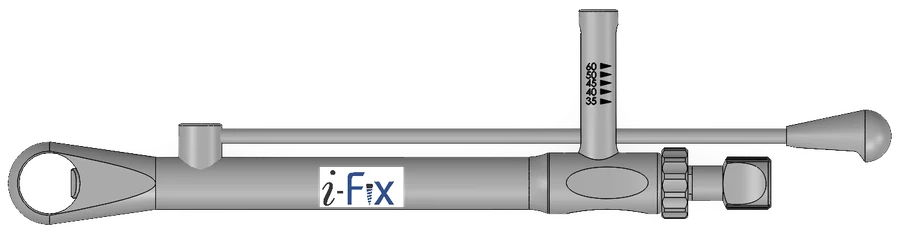

ITLCIX ITSCIX AAHB Wrenches and Handles 2
For seating an implant to a set torque, and for turning an insertion tool by hand.
BCXTW01 BCXHG01 For ZE Series zygomatic implants

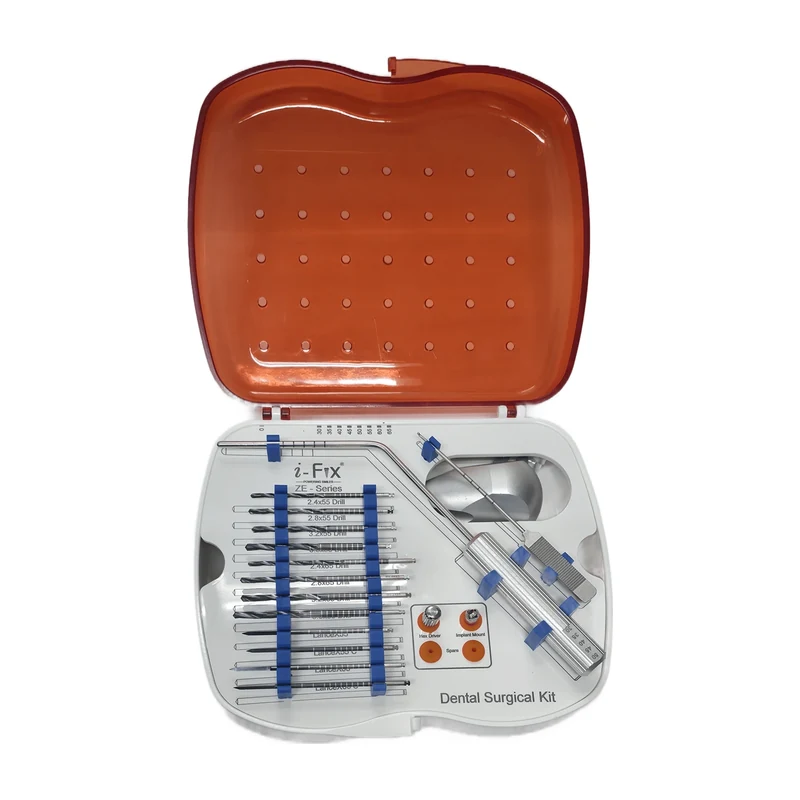

ZE Series Surgical Kit
Article code ZMSK01

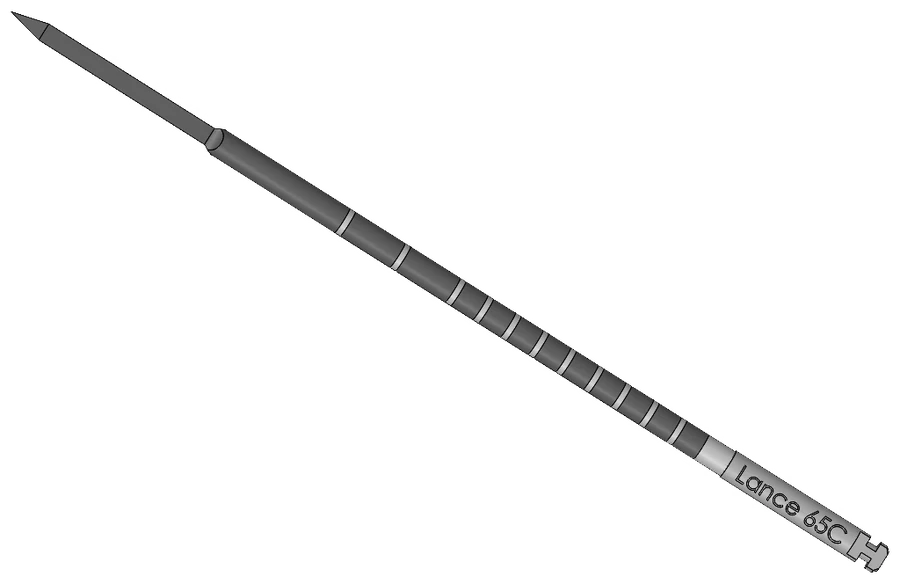

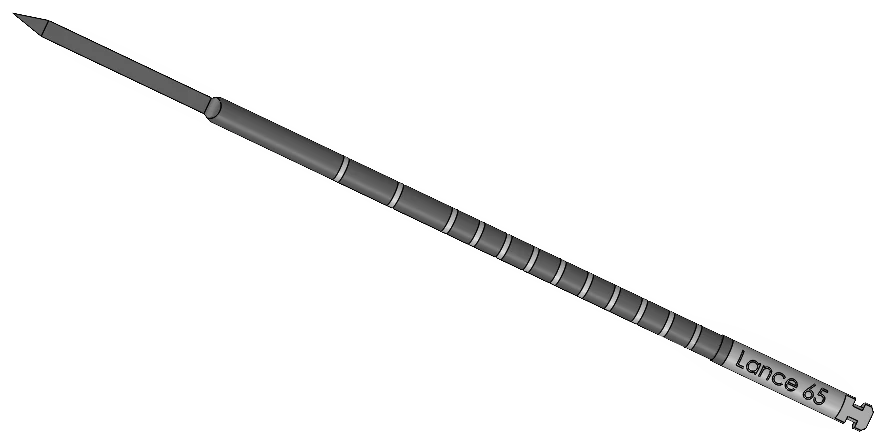

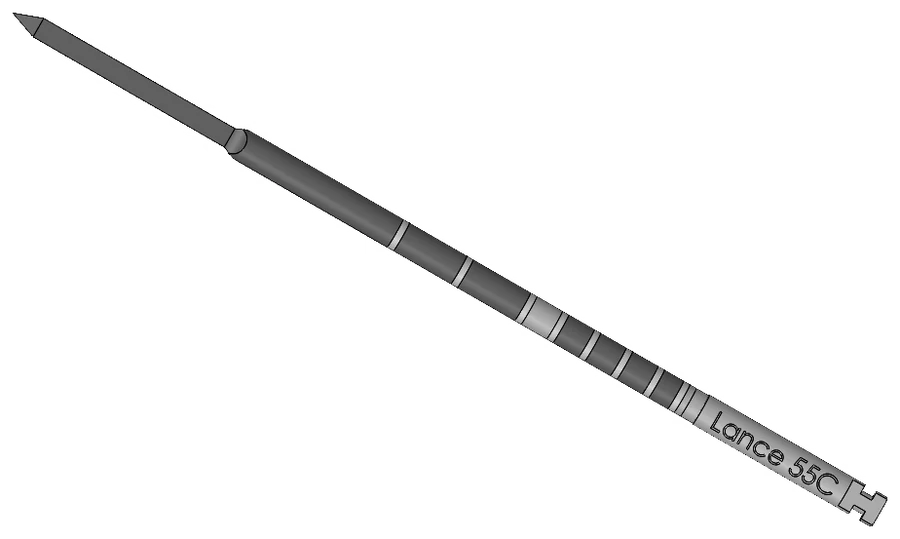

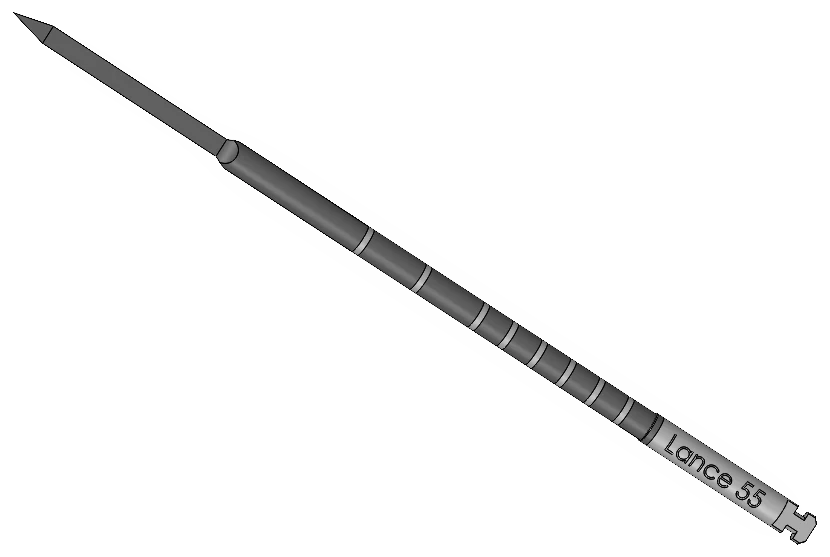

Lance Drills 4
Long lance drills in two lengths. The marking on each shank is given beside it.

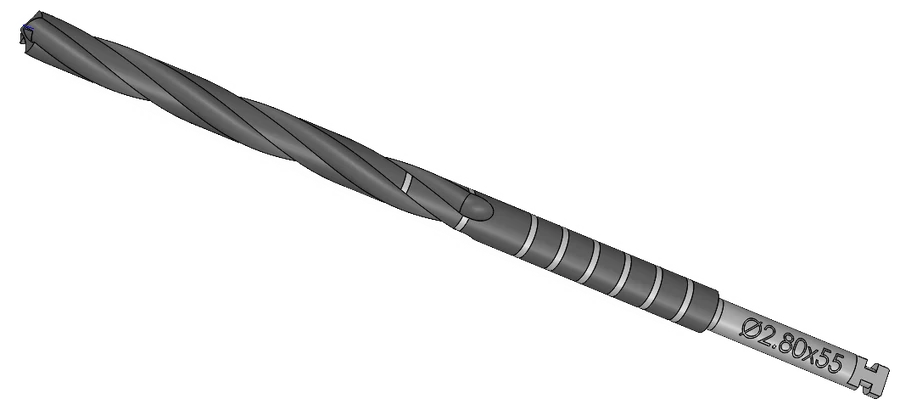

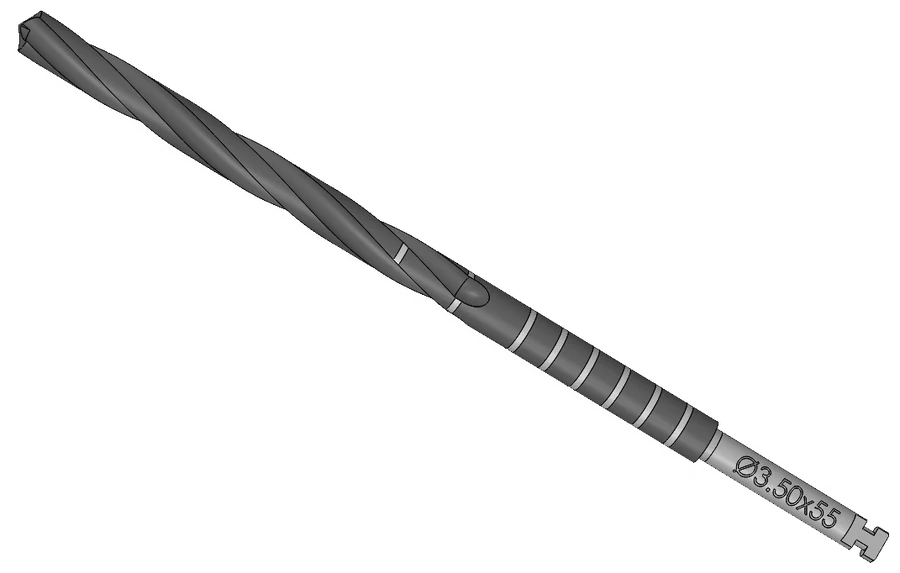

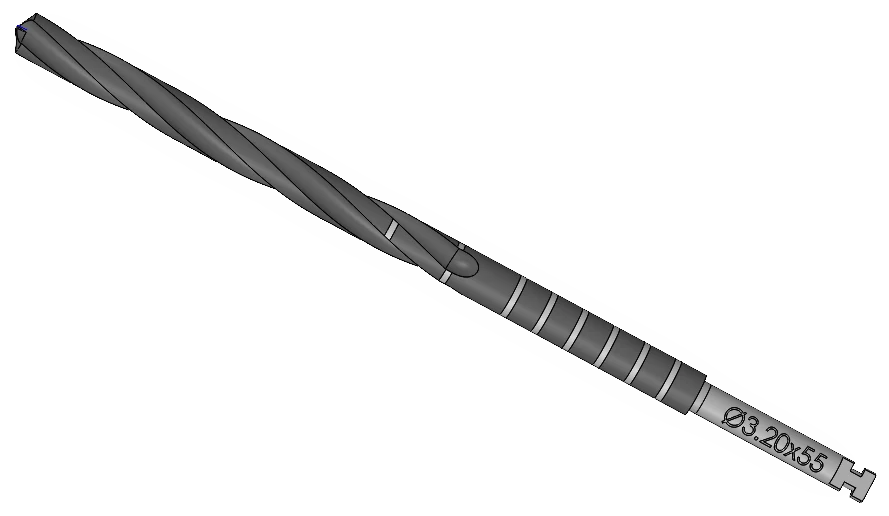

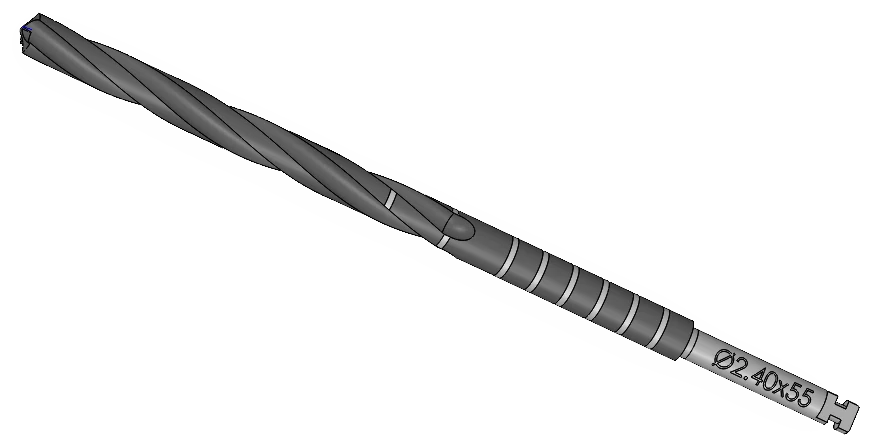

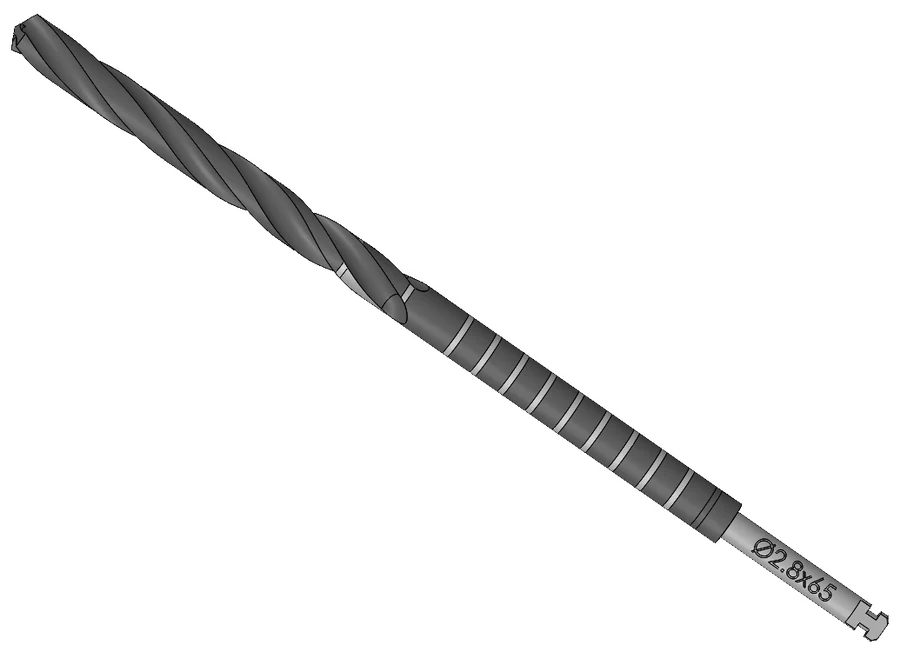

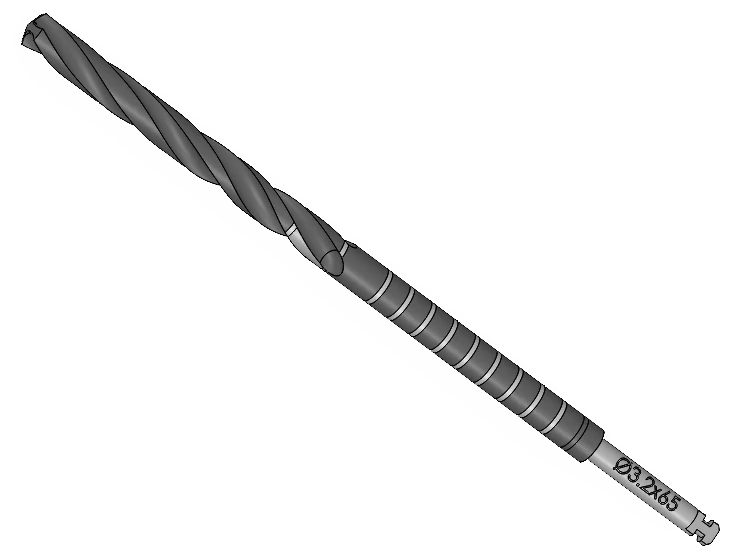

IZLD55 IZLDC55 IZLD65 IZLDC65 Twist Drills 8
Four diameters, each in 55 mm and 65 mm lengths.

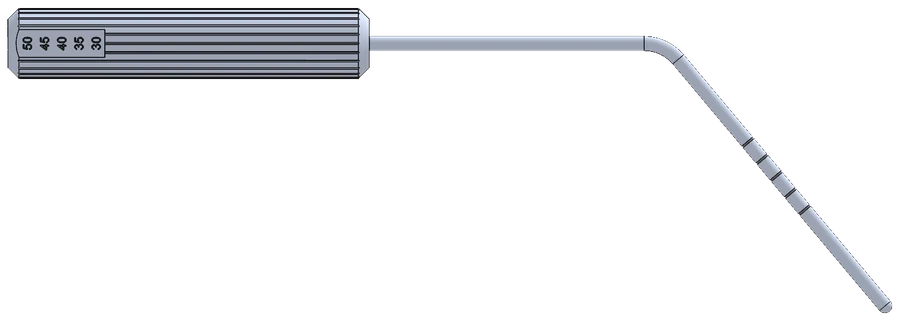

IZTD2455 IZTD2855 IZTD3255 IZTD3555 IZTD2465 IZTD2865 IZTD3265 IZTD3565 Handle and Depth Gauges 3

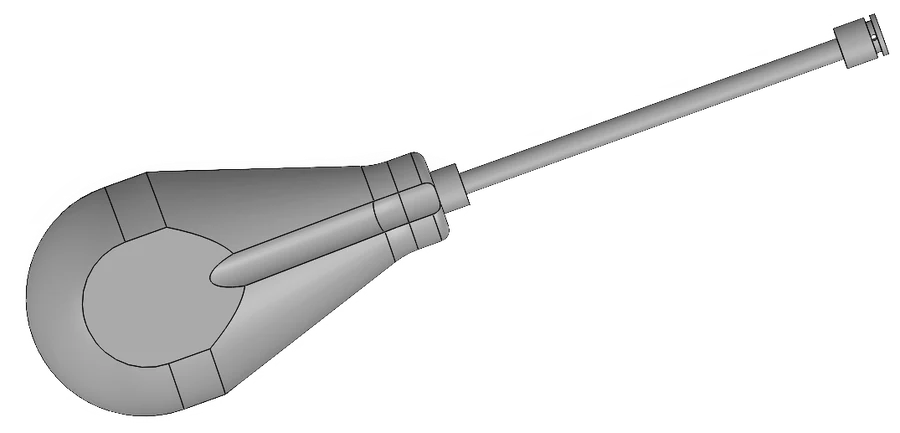

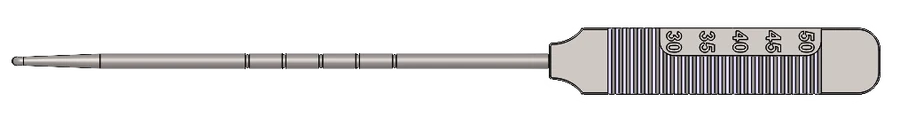

The zygoma handle, and depth gauges in straight and angled forms.
IZYHD IZH IZDG01 Replacement Instruments and Complete Kits
Tell us the kit and the instrument you need, and the team will confirm its article code and availability.
