i-Fix Digital workflow
Digital prosthetics.
Every part an intraoral scan and a milled restoration run on, from the scan body through the Ti base to the digital analog, listed for the NP connection, the RP connection and the multi-unit abutments, with the article code beside each one.
02 By connection platform
Digital prosthetics.
Each connection lists its own scan bodies, Ti bases and digital analogs, together with the premill bars and the multi-unit components the two platforms share.
IP Series & AK Series
H Scan Body 12 mm
Digital Implant Analog
Ti Base abutment Hex Ø3.80 × 0.5

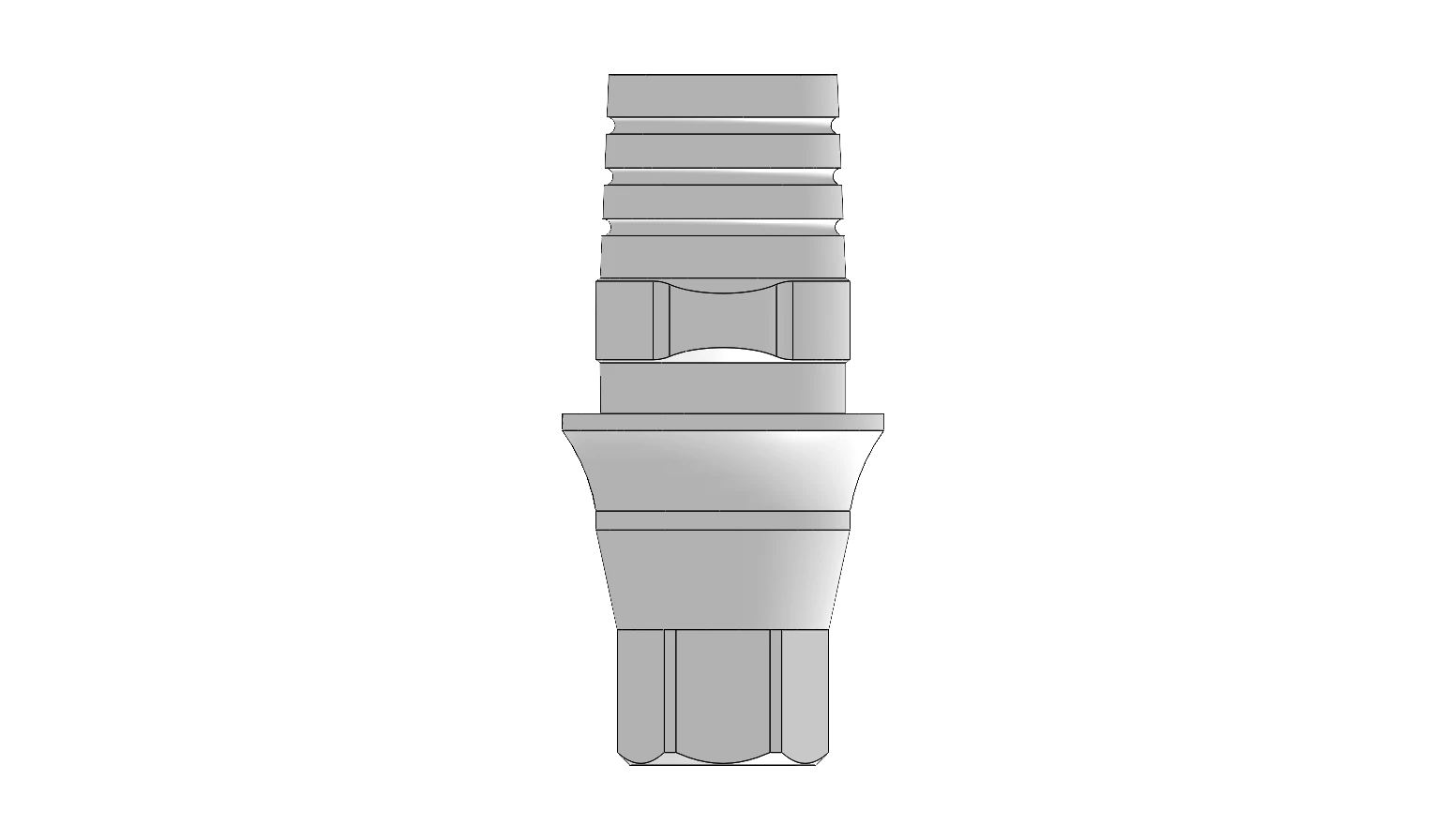

Ti Base abutment Hex Ø3.80 × 1.5
Ti Base abutment Hex Ø3.80 × 3.0
Ti Base abutment Non-Hex Ø3.80 × 0.5
Ti Base abutment Non-Hex Ø3.80 × 1.5
Ti Base abutment Non-Hex Ø3.80 × 3.0

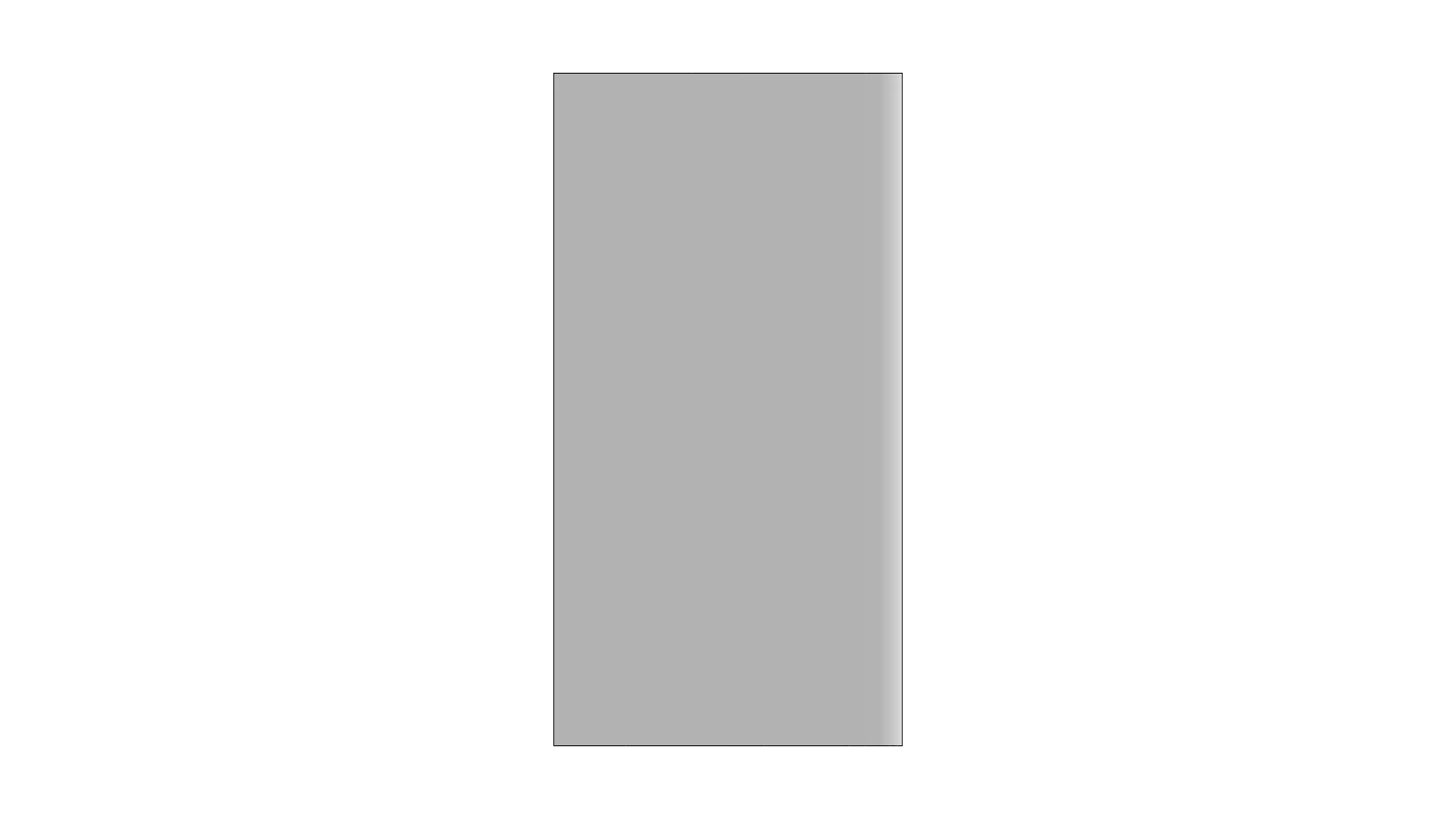

Ti Base sleeve

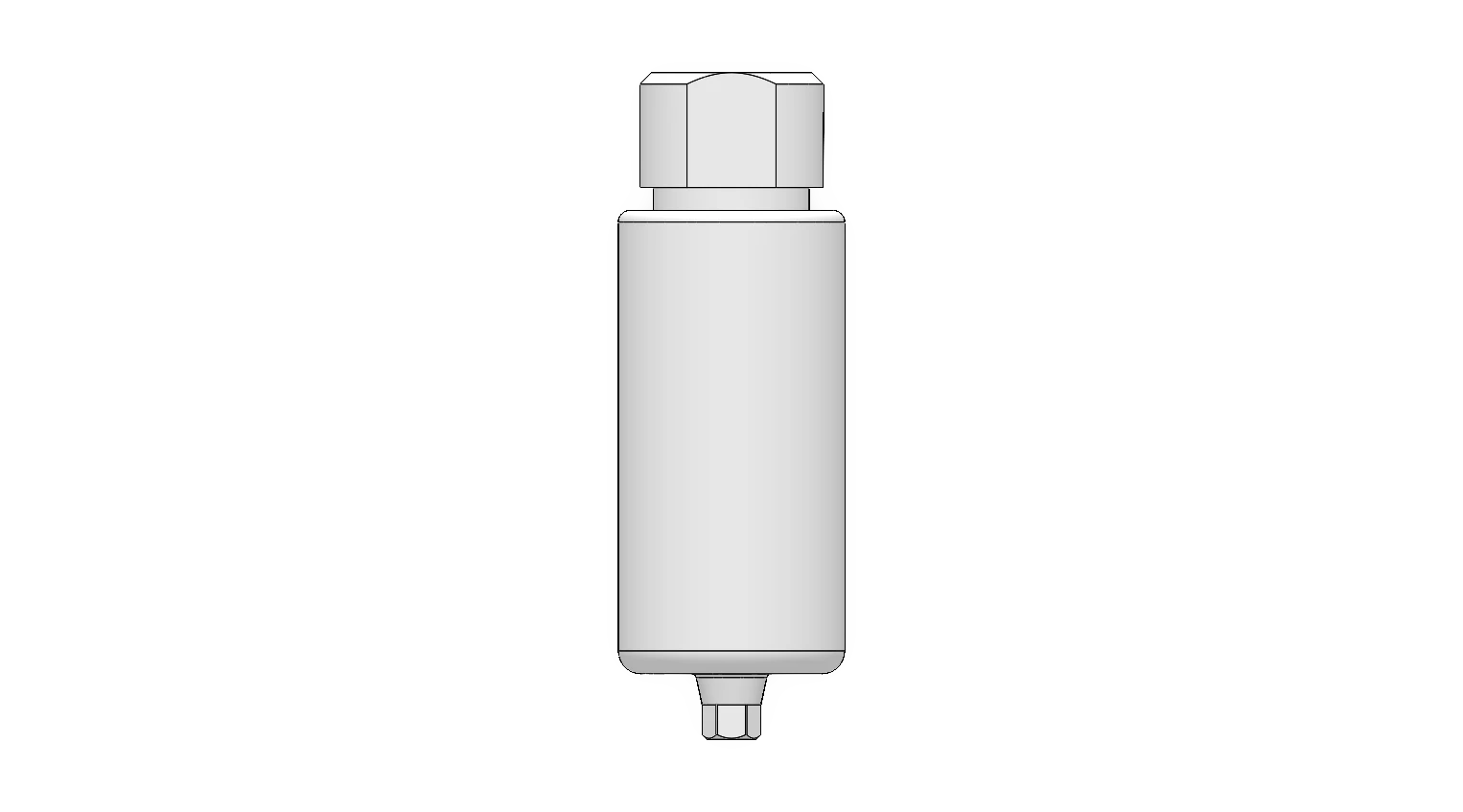

Premill bar 10 mm

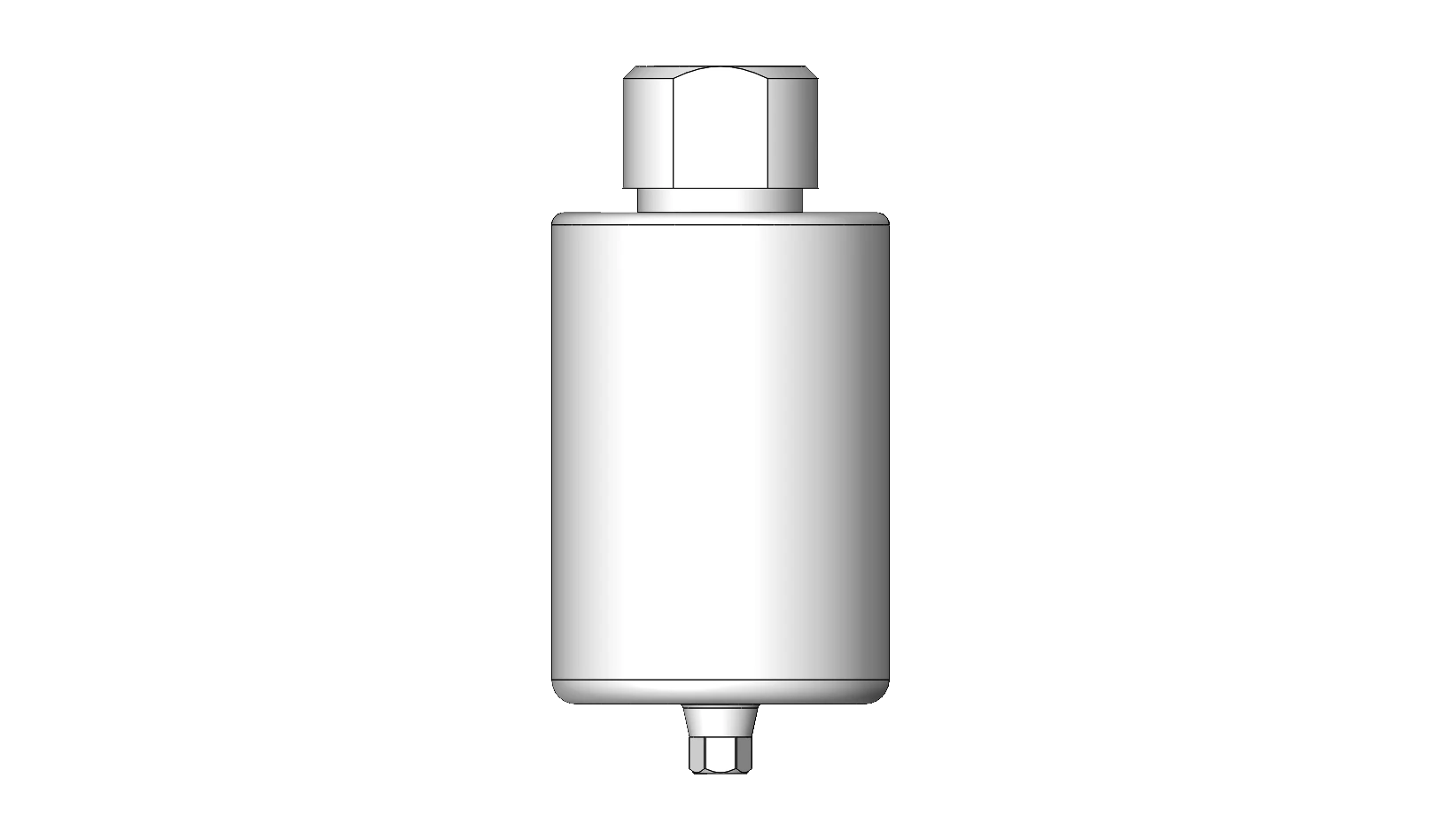

Premill bar 14 mm
SP Series (S-Fix Pro) & AK* Series
K H Scan Body 12 mm
K Digital Implant Analog
K Ti Base 4.5 × 0.6

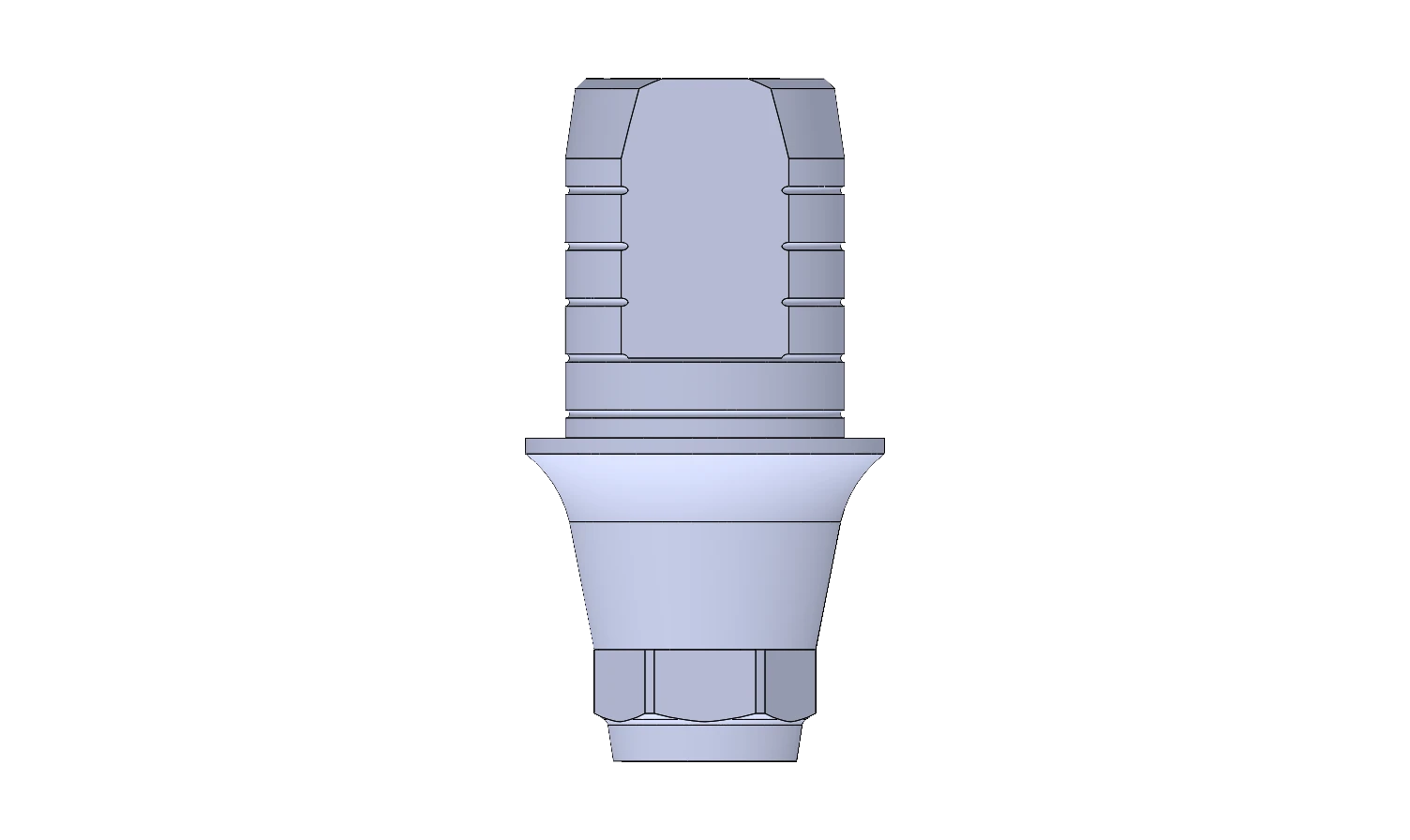

K Ti Base 4.5 × 1.5
K Ti Base 4.5 × 3.0
K Ti Base NH 4.5 × 0.6
K Ti Base NH 4.5 × 1.5
K Ti Base NH 4.5 × 3.0
Shared across the NP and RP connection multi-unit abutments
Digital analog MUA
Digital scan body MUA
Digital Ti base MUA
Need the rest of a series' components?
This page covers the digital workflow only. The full restorative catalogue for each series, with the abutments, healing caps and multi-unit components, is on the Prosthetics page.
